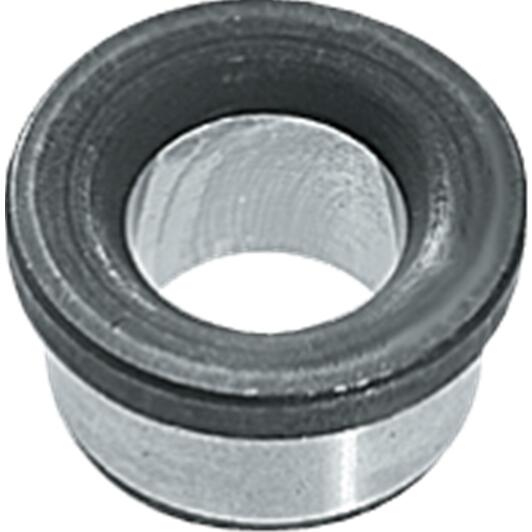

PHANTOM 848720650 drill sleeve DIN 172-A' short version' with collar 6'5 mm

Name: PHANTOM 848720650 drill sleeve DIN 172-A' short version' with collar 6'5 mm
Brand: PHANTOM
SKU: 51590016
Price: 7.77 EUR
Availability: PreOrder

Supplier number: PHANTOM 848720650 | EAN 8716563437895

7.77 tax incl.

€6.42 excl. VAT (incl. all environmental contributions)

On order: delivered from 02/10/2026

Delivery by DHL

✆ Talk to a specialist

Precise drilling with collar

Practical benefits

Reliable Phantom drill guidance: You guide drills with high accuracy thanks to the precision ground DIN 172-A profile.
Secure collar support: The integrated collar prevents the bushing from pushing through your drilling jigs during operation.
Durable through-hardened steel: You achieve lasting dimensional stability and wear resistance throughout demanding metalworking tasks.

In a nutshell

The right choise for

With the Phantom din 172-A drill bush, you handle repetitive drilling operations with maximum precision and control. This short version with collar is specifically designed for building reliable drill jigs and tooling fixtures in metalworking. The through-hardened and precision-ground finish on both the inside and outside ensures accurate drill bit guidance with minimal friction and long service life. The integrated collar prevents the bushing from pushing through the jig plate under heavy axial load. Featuring an inside diameter of 6.5 mm and a length of 10 mm, this drill bush protects your fixtures from wear and keeps every drilled hole perfectly aligned.

Product information FAQ

€7.77

tax incl.

Key features according to our expert

Inner diameter: 6,5 mm
Length: 10 mm

Product Description:

Phantom DIN 172A Drill Bush short series headed
DIN 172A, in- and external ground, completely hardened, tolerance on the Bore Size F7, tolerance on the outer diameter n6

All Features

Inner diameter: 6,5 mm
Length: 10 mm
Standard: DIN 172-A
Tolerance d1 (tol. d1): F7
Total length (l1): 10 mm
Length (l2): 3 mm
Diameter ø (d3): 15 mm
Tolerance d2 (tol. d2): n6
Diameter ø (d2): 12 mm
Diameter ø (d1): 6,5 mm

Brand PHANTOM
51590016
EAN 8716563437895
Supplier number PHANTOM 848720650

Frequently asked questions about this product

Answered by specialists

What is this drill bush used for?: You use this drill bushing in jigs and fixtures to guide drill bits accurately and protect the jig from wear.
What are the dimensions of this Phantom drill bush?: This version has an inside diameter of 6.5 mm and a length of 10 mm.
What is the advantage of the collar according to DIN 172-A?: The collar prevents the bushing from being pushed through or deeper into the jig during drilling.
What tolerances apply to this guide bushing?: The bore size is finished to an F7 tolerance and the outer diameter features an n6 press fit tolerance.
Is this drill bush hardened and ground?: Yes, it is fully through-hardened and precision ground on both the inside and outside for maximum service life.
