PHANTOM

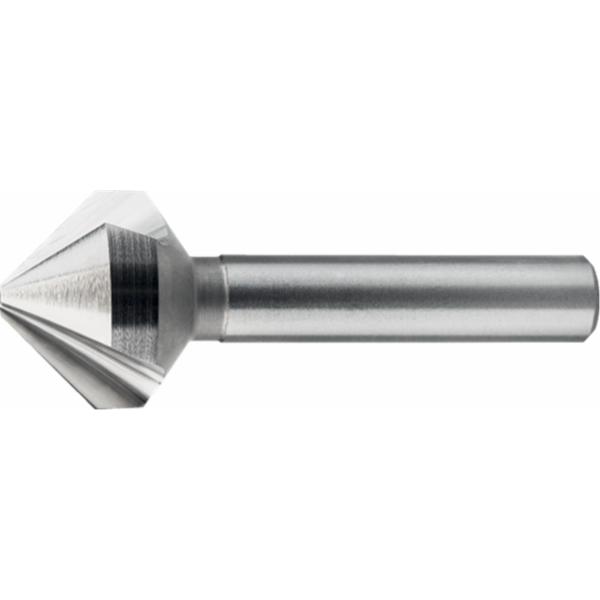

PHANTOM 425401240 HSS-E countersink bit DIN 335-C 90°' 3 cutting edges 12'4mm

This article is not available

Successor to this product

phantom-42-540-425401240
PHANTOM 425471240 HP2 UNI HSS-E Vari countersink bit DIN 335-C...
View product

Product Description:

  • Phantom HSS-E Countersink DIN 335 C 90° 3 flute
  • DIN 335 C, straight shank
Key features according to our expert
  • Large diameter: 12,4 mm
  • Shank size: 8 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563360575
  • Supplier number: PHANTOM 425401240
Large diameter
12,4 mm
Shank size
8 mm
Tool material
HSS-E

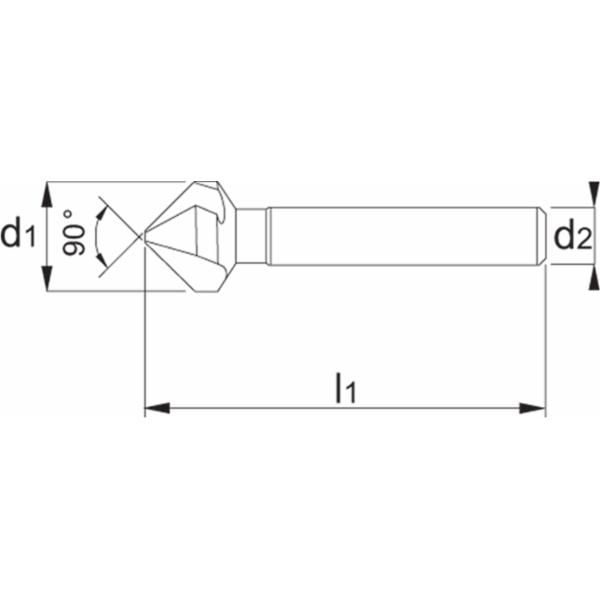

Diameter ø (d1)
12,4 mm
Tolerance d2 (tol. d2)
h9
Coolant feed
No
Cutting direction
Right
Counterborereach (min-max ø)
2,8-12,4 mm
Shank ø (d2)
8 mm
Variant
standard version
Surface
Bright
Shank type
Straight shank
Standard
DIN 335-C
Total length (l1)
56 mm
