PHANTOM

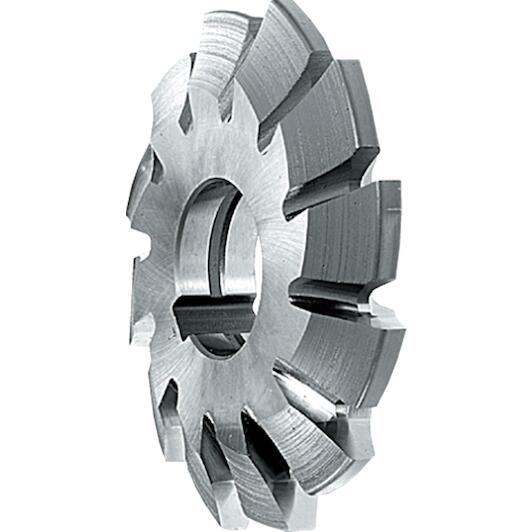

PHANTOM 385001751 HSS module cutter DIN 3972 pressure angle 20° modul 1'75 No. 1

150.00 tax incl.
€123.97 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product Description:

  • Phantom HSS DIN 3972 pressure angle 20°
  • DIN 3972, milling cutters 1 to 8, milling cutter 1 : for 12-13 teeth, milling cutter 2 : for 14-16 teeth, milling cutter 3 : for 17-20 teeth, milling cutter 4 : for 21-25 teeth, milling cutter 5 : for 26-34 teeth, milling cutter 6 : for 35-54 teeth, milling cutter 7 : for 55-135 teeth, milling cutter 8 : for 136-infinite teeth
Key features according to our expert
  • Diameter: 63 mm
  • For number of teeth: 12-13
  • Bore size: 22 mm
  • Modul: 1,75
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563381853
  • Supplier number: PHANTOM 385001751
Diameter
63 mm
For number of teeth
12-13
Bore size
22 mm
Modul
1,75

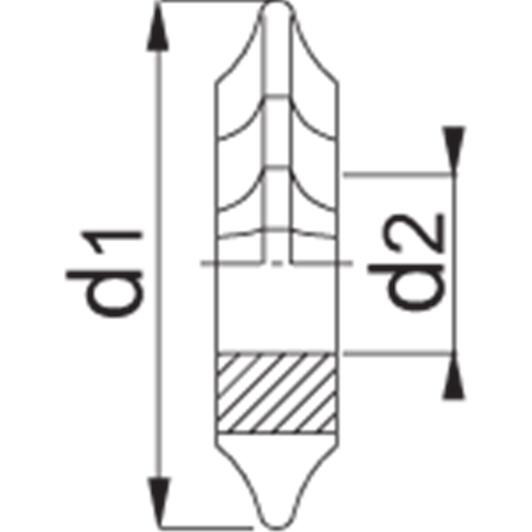

Tolerance d1 (tol. d1)
js16
Tool material
HSS
Number of flutes (z)
12
Diameter ø (d1)
63 mm
Number (nr.)
1 (12-13z)
Tolerance d2 (tol. d2)
H7
Coolant feed
No
Shank type
Bore
Bore ø (d2)
22 mm
Surface
Bright
Norms
DIN 3972
