Product Description:

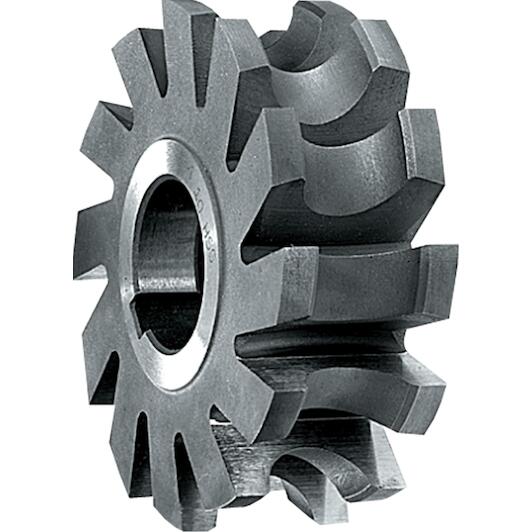

- Phantom HSS-E Concave Milling Cutter DIN 855 A
- DIN 855 A, for cutting convex grooves
Supplier number:
PHANTOM 383501200
|
EAN
8716563381099
637.55
tax incl.
€526.90 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Diameter: 100 mm
- Bore size: 32 mm
- Shape (side and face cutter): Concave
- Height: 44 mm
All Features
- Diameter
- 100 mm
- Bore size
- 32 mm
- Shape (side and face cutter)
- Concave
- Height
- 44 mm

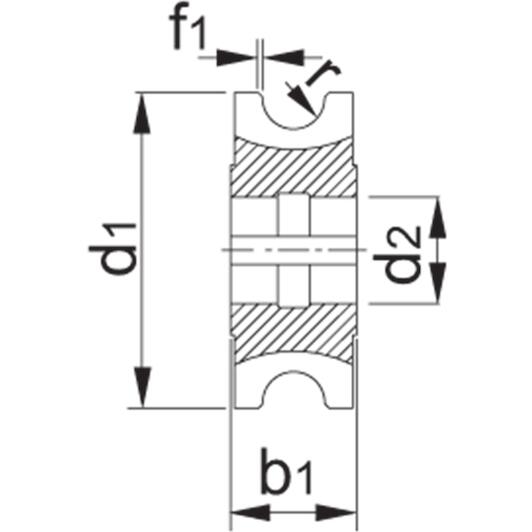

- Radius (r)
- 12 mm
- Tool material
- HSS-E
- Number of flutes (z)
- 10
- Diameter ø (d1)
- 100 mm
- Tolerance d2 (tol. d2)
- H7
- Coolant feed
- No
- Tolerance b1 (tol. b1)
- js16
- Tolerance d1 (tol. d1)
- js16
- Surface
- Bright
- Bore ø (d2)
- 32 mm
- Thickness (b1)
- 40 mm
- Shank type
- Bore
- Standard
- DIN 855-A
- Corner chamfer (f1)
- 1,2 mm
- Brand PHANTOM
- EAN 8716563381099
- Supplier number PHANTOM 383501200
