Product Description:

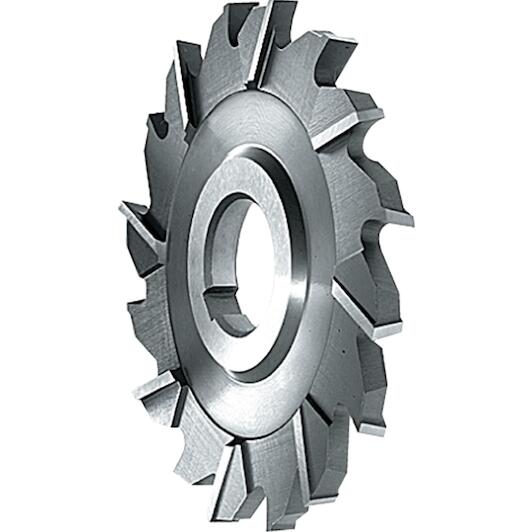

- Phantom HSS-E Side and Face Milling Cutter DIN 885 A staggered teeth
- DIN 885 A, type N
Supplier number:
PHANTOM 382100612
|
EAN
8716563380221
194.64
tax incl.
€160.86 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Diameter: 63 mm
- Bore size: 22 mm
- Shape (side and face cutter): Flat cross toothing
- Height: 12 mm
All Features
- Diameter
- 63 mm
- Bore size
- 22 mm
- Shape (side and face cutter)
- Flat cross toothing
- Height
- 12 mm

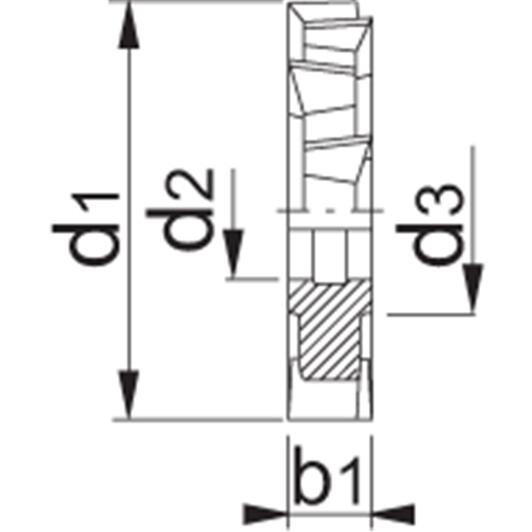

- Bore ø (d2)
- 22 mm
- Number of flutes (z)
- 18
- Diameter ø (d1)
- 63 mm
- Tolerance d2 (tol. d2)
- H7
- Diameter ø (d3)
- 34 mm
- Coolant feed
- No
- Tolerance b1 (tol. b1)
- k11
- Tolerance d1 (tol. d1)
- js16
- Surface
- Bright
- Thickness (b1)
- 12 mm
- Shank type
- Bore
- Standard
- DIN 885-A
- Tool material
- HSS-E
- Brand PHANTOM
- EAN 8716563380221
- Supplier number PHANTOM 382100612
