Product Description:
- Phantom HSS-E Woodruff Keyseat Cutter DIN 850 D staggered teeth
- DIN 850 D, Weldon shank (DIN 1835-B)

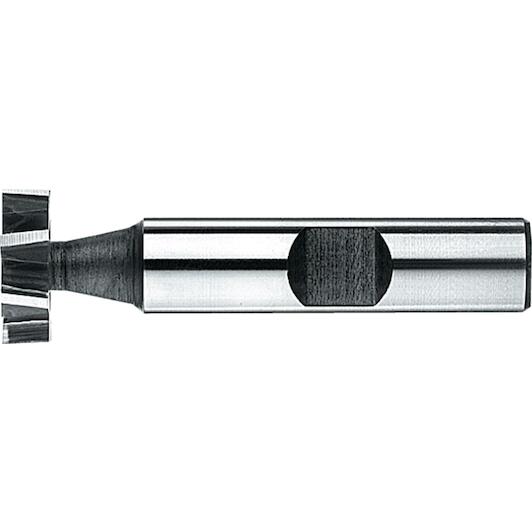

PHANTOM 365102240 HSS-E disc cutter (Woodruff cutter) DIN 850-D cross-cut 22'5x4mm
103.48
tax incl.
€85.52 excl. VAT (incl. all environmental contributions)
Key features according to our expert
- Diameter: 22,5 mm
- Material (milling cutter): HSS-E
- Cutting length: 4 mm
- Shank type (milling cutter): Weldon
- Shank size (milling cutter): 10 mm
- Milling type: T-slot cutter
Specifications / All features
- Brand: PHANTOM
- EAN: 8716563378877
- Supplier number: PHANTOM 365102240
- Diameter
- 22,5 mm
- Material (milling cutter)
- HSS-E
- Cutting length
- 4 mm
- Shank type (milling cutter)
- Weldon
- Shank size (milling cutter)
- 10 mm
- Milling type
- T-slot cutter
- Tolerance d1 (tol. d1)
- h12
- Total length (l1)
- 63 mm
- Tool material
- HSS-E
- Number of flutes (z)
- 8
- Diameter ø (d1)
- 22,5 mm
- Flute length (l2)
- 4 mm
- Tolerance d2 (tol. d2)
- h6
- Coolant feed
- No
- Shank ø (d2)
- 10 mm
- Surface
- Bright
- Shank type
- Weldon (DIN 1835-B)
- Norms
- DIN 850-D
- Neck ø (d3)
- 6 mm
