Product Description:

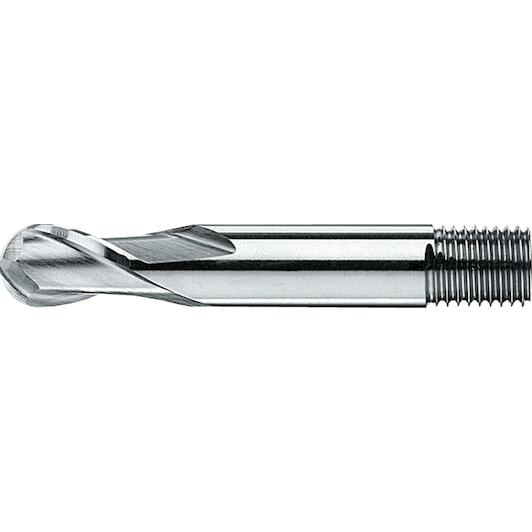

- Phantom HSS-E 2 Flute Ball Nose End Mill DIN 327 D
- DIN 327 D, threaded shank, in M42 steel
Supplier number:
PHANTOM 362000500
|
EAN
8716563227885
9.64
tax incl.
€7.97 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Diameter: 5 mm
- Milling type: Ball nose cutter
- Shank size (milling cutter): M6
- Shank type (milling cutter): External thread
- Number of cutting edges: 2
- Material (milling cutter): HSS-E
- Spiral angle: 30 °
- Cutting length: 8 mm
All Features
- Diameter
- 5 mm
- Milling type
- Ball nose cutter
- Shank size (milling cutter)
- M6
- Shank type (milling cutter)
- External thread
- Number of cutting edges
- 2
- Material (milling cutter)
- HSS-E
- Spiral angle
- 30 °
- Cutting length
- 8 mm
- Flute length (l2)
- 8 mm
- Coolant feed
- No
- Tolerance d2 (tol. d2)
- h8
- Tool material
- HSS-E
- Diameter ø (d1)
- 5 mm
- Tolerance r (tol. r)
- ±0,02
- Number of flutes (z)
- 2
- Tolerance d1 (tol. d1)
- e8
- Standard
- DIN 327-D
- Radius (r)
- 2,5 mm
- Shank ø (d2)
- 6 mm
- Surface
- Bright
- Shank type
- Threaded shank (DIN 1835-D)
- Total length (l1)
- 52 mm
- Brand PHANTOM
- EAN 8716563227885
- Supplier number PHANTOM 362000500
