What type of shank does this end mill have?

The end mill has a cylindrical Weldon shank with a diameter of 16 mm for secure and stable clamping.

What milling applications is this tool suitable for?

This 4-flute end mill with a 30° helix angle complies with DIN 844-B and is suitable for contouring and slotting operations.

What are the key dimensions of this model?

The tool features a cutting diameter of 16 mm, a shank diameter of 16 mm, and a cutting length of 32 mm.

What material is the end mill made from?

It is made of HSS-E (M42 steel with 8% cobalt), offering high wear and heat resistance during milling.

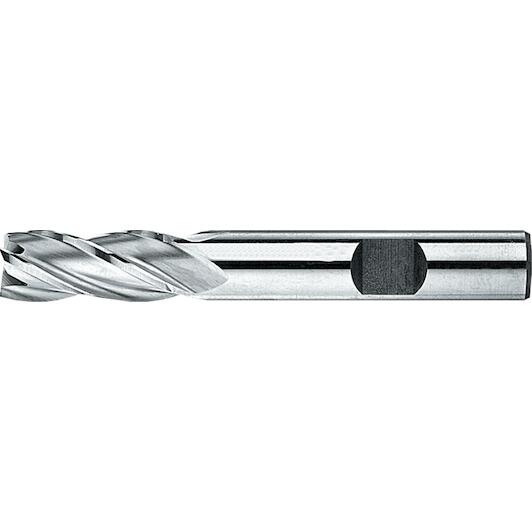

PHANTOM 342201600 HSS-E shank cutter multi-cutter DIN 844-B short' type N 16x32mm

Name: PHANTOM 342201600 HSS-E shank cutter multi-cutter DIN 844-B short' type N 16x32mm
Brand: PHANTOM
SKU: 51250893
Price: 44.32 EUR
Availability: InStock

Supplier number: PHANTOM 342201600 | EAN 8716563223153

44.32 tax incl.

€36.63 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

✆ Talk to a specialist

Efficient contour milling with clean finishes

Practical benefits

High heat and wear resistance: Crafted from cobalt-alloyed HSS-E steel, you achieve extended tool life during demanding metal milling tasks.
Smooth four-flute cutting action: The 30° helix angle ensures reliable chip evacuation and leaves smooth surface finishes on your workpiece.
Secure slip-free tool mounting: The 16 mm Weldon shank allows you to clamp the end mill firmly for vibration-free operations.

In a nutshell

The right choise for

With the Phantom 34.220 end mill, you achieve precise and dependable milling in structural steel, unalloyed steel, and non-ferrous metals. Manufactured from hss-e M42 steel with 8% cobalt, it delivers outstanding heat and wear resistance during demanding machining tasks. The four-flute design and 30° helix angle ensure smooth chip evacuation and a fine surface finish during contouring and peripheral milling. Thanks to the 16 mm Weldon shank according to din 844-B, the tool clamps securely in your holder to eliminate slippage and reduce vibrations. Featuring a 16 mm cutting diameter and a 32 mm cutting length, this end mill gives you full control on both conventional and cnc milling machines.

Product information FAQ

€44.32

In stock - tax incl.

Key features according to our expert

Diameter: 16 mm
Material (milling cutter): HSS-E
Cutting length: 32 mm
Spiral angle: 30 °
Number of cutting edges: 4
Shank type (milling cutter): Weldon
Shank size (milling cutter): 16 mm
Milling type: Finger cutter

Product Description:

Phantom HSS-E Multi Flute End Mill DIN 844 B
DIN 844 B, centre cutting up to 25 mm, Weldon shank (DIN 1835-B), in M42 steel

All Features

Diameter: 16 mm
Material (milling cutter): HSS-E
Cutting length: 32 mm
Spiral angle: 30 °
Number of cutting edges: 4
Shank type (milling cutter): Weldon
Shank size (milling cutter): 16 mm
Milling type: Finger cutter
Tolerance d1 (tol. d1): 0,00/-0,040
Tool material: HSS-E
Number of flutes (z): 4
Diameter ø (d1): 16 mm
Flute length (l2): 32 mm
Tolerance d2 (tol. d2): h6
Coolant feed: No
Shank ø (d2): 16 mm
Surface: Bright
Shank type: Weldon (DIN 1835-B)
Standard: DIN 844-B
Total length (l1): 92 mm

Brand PHANTOM
51250893
EAN 8716563223153
Supplier number PHANTOM 342201600

Frequently asked questions about this product

Answered by specialists

What type of shank does this end mill have?: The end mill has a cylindrical Weldon shank with a diameter of 16 mm for secure and stable clamping.
What milling applications is this tool suitable for?: This 4-flute end mill with a 30° helix angle complies with DIN 844-B and is suitable for contouring and slotting operations.
What are the key dimensions of this model?: The tool features a cutting diameter of 16 mm, a shank diameter of 16 mm, and a cutting length of 32 mm.
What material is the end mill made from?: It is made of HSS-E (M42 steel with 8% cobalt), offering high wear and heat resistance during milling.
