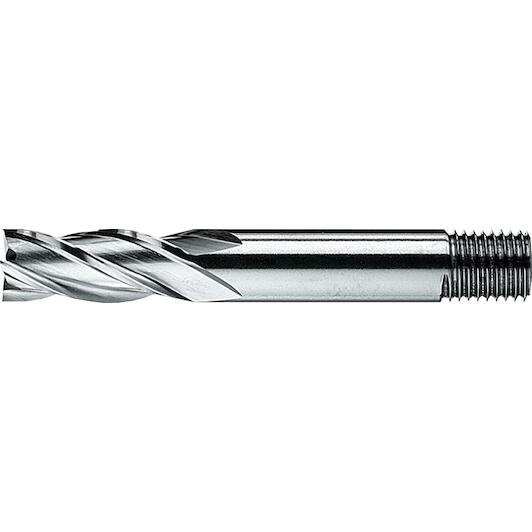

PHANTOM 342000800 HSS-E shank cutter multi-cutter DIN 844-D short' type N 8x19mm

Name: PHANTOM 342000800 HSS-E shank cutter multi-cutter DIN 844-D short' type N 8x19mm
Brand: PHANTOM
SKU: 51250813
Price: 26.02 EUR
Availability: InStock

Supplier number: PHANTOM 342000800 | EAN 8716563222354

26.02 tax incl.

€21.50 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

✆ Talk to a specialist

Reliable milling in tough materials

Practical benefits

Superior heat resistance with cobalt: Thanks to the HSS-E CO8 composition, the tool retains hardness at elevated temperatures so you cut smoothly through tough metals.
Fine surface finish with flutes: The 4 cutting flutes deliver stable operation and reduced vibration, leaving you with clean surfaces during side milling.
Secure mounting via threaded shank: The M10 external thread locks firmly into the holder, giving you maximum rigidity and precision during heavy milling passes.

In a nutshell

The right choise for

With the Phantom hss-e CO8 end mill, you reliably machine tough materials and high-tensile steels. Thanks to the 8% cobalt alloy, the tool maintains exceptional heat and wear resistance during demanding cutting passes. Its four flutes and 30° helix angle provide smooth, low-vibration operation and a clean surface finish during contouring, slotting, and face milling. Featuring an 8 mm cutting diameter, a 19 mm cutting length, and a short overall design conforming to din 844-D, deflection is kept to a minimum. The M10 external thread ensures rigid, secure clamping in your tool holder, preventing pull-out even under heavy milling loads.

Product information FAQ

€26.02

In stock - tax incl.

Key features according to our expert

Diameter: 8 mm
Material (milling cutter): HSS-E
Cutting length: 19 mm
Spiral angle: 30 °
Number of cutting edges: 4
Shank type (milling cutter): External thread
Shank size (milling cutter): M10
Milling type: Finger cutter

Product Description:

Phantom HSS-E Multi Flute End Mill DIN 844 D
DIN 844 D, centre cutting up to 25 mm, threaded shank, in M42 steel

All Features

Diameter: 8 mm
Material (milling cutter): HSS-E
Cutting length: 19 mm
Spiral angle: 30 °
Number of cutting edges: 4
Shank type (milling cutter): External thread
Shank size (milling cutter): M10
Milling type: Finger cutter
Tolerance d1 (tol. d1): 0,00/-0,040
Tool material: HSS-E
Number of flutes (z): 4
Diameter ø (d1): 8 mm
Flute length (l2): 19 mm
Tolerance d2 (tol. d2): h8
Coolant feed: No
Shank ø (d2): 10 mm
Surface: Bright
Shank type: Threaded shank (DIN 1835-D)
Standard: DIN 844-D
Total length (l1): 69 mm

Brand PHANTOM
51250813
EAN 8716563222354
Supplier number PHANTOM 342000800

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this end mill?: The mill has a diameter of 8 mm, a cutting length of 19 mm, and an M10 shank thread.
What shank type does this tool have?: This milling cutter features a shank with an M10 external thread.
What material is this cutter made of?: It is manufactured from HSS-E Co8 high-speed steel with 8% cobalt.
How many flutes does this end mill have?: This is a 4-flute multi-tooth cutter with a 30° helix angle.
Which standard does this end mill follow?: This short end mill conforms to the DIN 844-D standard (type N).
