PHANTOM

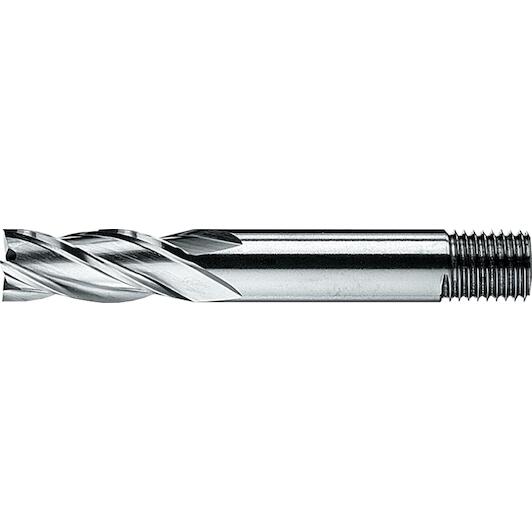

PHANTOM 342000700 HSS-E shank cutter multi-cutter DIN 844-D short' type N 7x16mm

24.53 tax incl.
€20.27 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product Description:

  • Phantom HSS-E DIN 844 D
  • DIN 844 D, centre cutting up to 25 mm, threaded shank, in M42 steel
Key features according to our expert
  • Diameter: 7 mm
  • Material (milling cutter): HSS-E
  • Cutting length: 16 mm
  • Spiral angle: 30 °
  • Number of cutting edges: 4
  • Shank type (milling cutter): External thread
  • Shank size (milling cutter): M10
  • Milling type: Finger cutter
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563222330
  • Supplier number: PHANTOM 342000700
Diameter
7 mm
Material (milling cutter)
HSS-E
Cutting length
16 mm
Spiral angle
30 °
Number of cutting edges
4
Shank type (milling cutter)
External thread
Shank size (milling cutter)
M10
Milling type
Finger cutter
Tolerance d1 (tol. d1)
0,00/-0,040
Tool material
HSS-E
Number of flutes (z)
4
Diameter ø (d1)
7 mm
Flute length (l2)
16 mm
Tolerance d2 (tol. d2)
h8
Coolant feed
No
Shank ø (d2)
10 mm
Surface
Bright
Shank type
Threaded shank (DIN 1835-D)
Norms
DIN 844-D
Total length (l1)
66 mm
