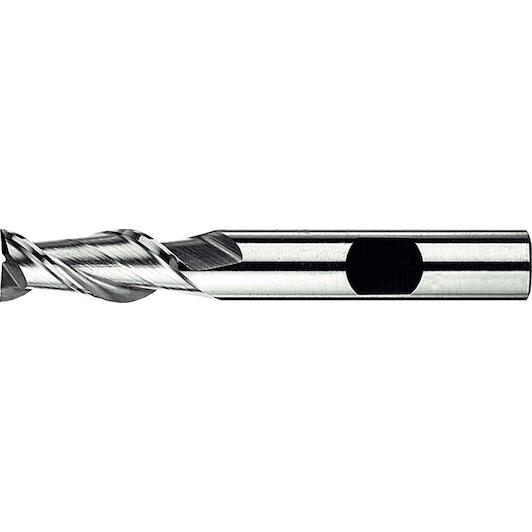

PHANTOM 323201200 HSS-E shank cutter 2-cutter DIN 844-B short' type W' aluminium 12x26mm

PHANTOM
Supplier number: PHANTOM 323201200 | EAN 8716563218807
39.80 tax incl.
€32.89 excl. VAT (incl. all environmental contributions)
On order: delivered from 13/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€39.80
tax incl.

Product information

Key features according to our expert

  • Diameter: 12 mm
  • Material (milling cutter): HSS-E
  • Cutting length: 26 mm
  • Spiral angle: 42 °
  • Number of cutting edges: 2
  • Shank type (milling cutter): Weldon
  • Shank size (milling cutter): 12 mm
  • Milling type: Keyway cutter

Product Description:

  • Phantom HSS-E 2 Flute End Mill DIN 844 B Aluminium
  • DIN 844 B, helix 42°, for the cutting of aluminium, Weldon shank (DIN 1835-B), in M42 steel

All Features

Diameter
12 mm
Material (milling cutter)
HSS-E
Cutting length
26 mm
Spiral angle
42 °
Number of cutting edges
2
Shank type (milling cutter)
Weldon
Shank size (milling cutter)
12 mm
Milling type
Keyway cutter
Tolerance d1 (tol. d1)
e8
Tool material
HSS-E
Number of flutes (z)
2
Diameter ø (d1)
12 mm
Flute length (l2)
26 mm
Tolerance d2 (tol. d2)
h6
Coolant feed
No
Shank ø (d2)
12 mm
Surface
Bright
Shank type
Weldon (DIN 1835-B)
Standard
DIN 844-B
Total length (l1)
83 mm
  • Brand PHANTOM
  • EAN 8716563218807
  • Supplier number PHANTOM 323201200
