Product Description:

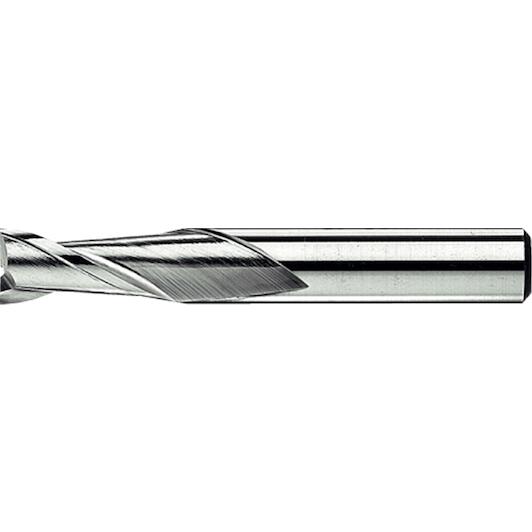

- Phantom SC Precision 2 Flute End Mill Phantom
- Phantom, straight shank, high-precision, tolerance ± 0.01 mm
PHANTOM 322700050 UNI VHM precision shank cutter 2-cutter 0'5x1'5mm
31.40
tax incl.
€25.95 excl. VAT (incl. all environmental contributions)
Key features according to our expert
- Diameter: 0,5 mm
- Material (milling cutter): Solid carbide
- Cutting length: 1,5 mm
- Spiral angle: 30 °
- Number of cutting edges: 2
- Shank type (milling cutter): Cylindrical
- Shank size (milling cutter): 3 mm
- Milling type: Keyway cutter
Specifications / All features
- Brand: PHANTOM
- EAN: 8716563352457
- Supplier number: PHANTOM 322700050
- Diameter
- 0,5 mm
- Material (milling cutter)
- Solid carbide
- Cutting length
- 1,5 mm
- Spiral angle
- 30 °
- Number of cutting edges
- 2
- Shank type (milling cutter)
- Cylindrical
- Shank size (milling cutter)
- 3 mm
- Milling type
- Keyway cutter
- Quality
- UNI
- Tool material
- solid carbide
- Number of flutes (z)
- 2
- Diameter ø (d1)
- 0,5 mm
- Flute length (l2)
- 1,5 mm
- Tolerance d2 (tol. d2)
- h5
- Coolant feed
- No
- Tolerance d1 (tol. d1)
- h7
- Shank ø (d2)
- 3 mm
- Surface
- Bright
- Shank type
- Straight shank (DIN 6535-HA)
- Total length (l1)
- 39 mm
