Product Description:

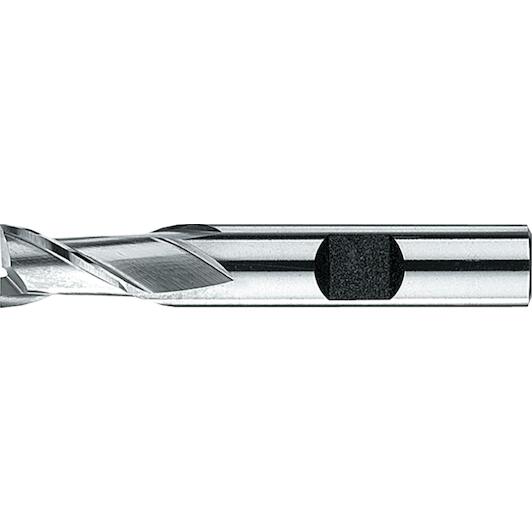

- Phantom HSS-E 2 Flute End Mill DIN 327 B
- DIN 327 B, Weldon shank (DIN 1835-B), in M42 steel
Supplier number:
PHANTOM 322200250
|
EAN
8716563217657
15.45
tax incl.
€12.77 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Diameter: 2,5 mm
- Material (milling cutter): HSS-E
- Cutting length: 5 mm
- Spiral angle: 30 °
- Number of cutting edges: 2
- Shank type (milling cutter): Weldon
- Shank size (milling cutter): 6 mm
- Milling type: Keyway cutter
All Features
- Diameter
- 2,5 mm
- Material (milling cutter)
- HSS-E
- Cutting length
- 5 mm
- Spiral angle
- 30 °
- Number of cutting edges
- 2
- Shank type (milling cutter)
- Weldon
- Shank size (milling cutter)
- 6 mm
- Milling type
- Keyway cutter
- Tolerance d1 (tol. d1)
- e8
- Tool material
- HSS-E
- Number of flutes (z)
- 2
- Diameter ø (d1)
- 2,5 mm
- Flute length (l2)
- 5 mm
- Tolerance d2 (tol. d2)
- h6
- Coolant feed
- No
- Shank ø (d2)
- 6 mm
- Surface
- Bright
- Shank type
- Weldon (DIN 1835-B)
- Standard
- DIN 327-B
- Total length (l1)
- 49 mm
- Brand PHANTOM
- EAN 8716563217657
- Supplier number PHANTOM 322200250
