Product Description:

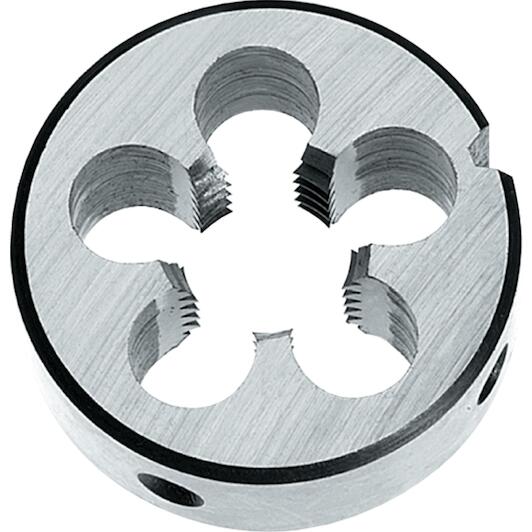

- Phantom HSS Thread Die DIN EN 22568 gun nosed left hand UNF
- DIN EN 22568, 60°, for hand and machine use
Supplier number:
PHANTOM 299781905
|
EAN
8716563333906
234.38
tax incl.
€193.70 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Thread type: UN/UNF
- Pitch: 16 tpi
- Cutting direction: Left
- Outer diameter: 45 mm
- Thickness: 14 mm
- Thread size: 3/4"
All Features
- Thread type
- UN/UNF
- Pitch
- 16 tpi
- Cutting direction
- Left
- Outer diameter
- 45 mm
- Thickness
- 14 mm
- Thread size
- 3/4"

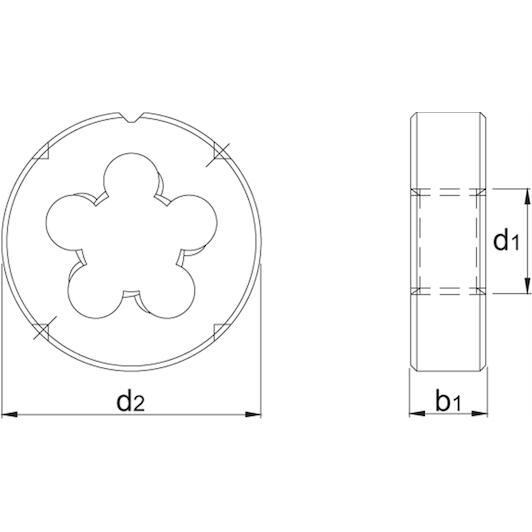

- Outside ø (d2)
- 45 mm
- Tool material
- HSS
- Thread diameter (d1)
- UNF 3/4
- Tolerance d1 (tol. d1)
- 2A
- Die thickness (b1)
- 14 mm
- Surface
- Bright
- Norm
- DIN EN 22568
- Pitch-inch (tpi)
- 16 Threads per inch
- Brand PHANTOM
- EAN 8716563333906
- Supplier number PHANTOM 299781905
