What type of thread does this circular die cut?

This die cuts right-hand BSP gas thread (BSPP/G) with a 1" size and a pitch of 11 TPI.

What are the dimensions of this round die?

The die has an outer diameter of 65 mm and a thickness of 18 mm in accordance with DIN EN 24231.

What is the benefit of the spiral point (gun nose)?

The spiral point pushes chips forward, ensuring smooth chip evacuation and a clean thread finish.

Can this die be used for both manual and machine threading?

Yes, its HSS construction and DIN EN 24231 design make it suitable for both hand and machine applications.

PHANTOM 275203325 HSS round cutting plate DIN EN 24231 peel cut' BSP (gas thread) 1"-11

Name: PHANTOM 275203325 HSS round cutting plate DIN EN 24231 peel cut' BSP (gas thread) 1"-11
Brand: PHANTOM
SKU: 51300127
Price: 167.73 EUR
Availability: InStock

Supplier number: PHANTOM 275203325 | EAN 8716563336068

167.73 tax incl.

€138.62 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

✆ Talk to a specialist

Clean pipe threading with Phantom 27.520

Practical benefits

Smooth forward chip evacuation: The spiral point design pushes chips forward cleanly, ensuring you get damage-free threads with every cut.
Standardized thread cutting precision: You cut reliable 1"-11 BSP threads compliant with DIN EN 24231 for tight and accurate pipe connections.
Resilient high-speed steel construction: The premium HSS construction delivers dependable wear resistance when working across unalloyed steel, cast iron, and aluminum.

In a nutshell

The right choise for

With the Phantom 27.520 circular die, you cut and restore right-hand 1"-11 bsp external pipe threads with exact precision. Thanks to the spiral point design, chips are pushed cleanly forward during threading, keeping your work surface clear and threads undamaged. Sized at 65x18 mm and manufactured from durable hss in accordance with din en 24231, it provides excellent wear resistance across steel, cast iron, and aluminum. Whether you use it manually with a die stock or for machine operations on a lathe, you achieve reliable, tight, and accurate connections every time.

Product information FAQ

€167.73

In stock - tax incl.

Key features according to our expert

Thread type: BSPP
Pitch: 11 tpi
Cutting direction: Right
Outer diameter: 65 mm
Thickness: 18 mm
Thread size: 1"

Product Description:

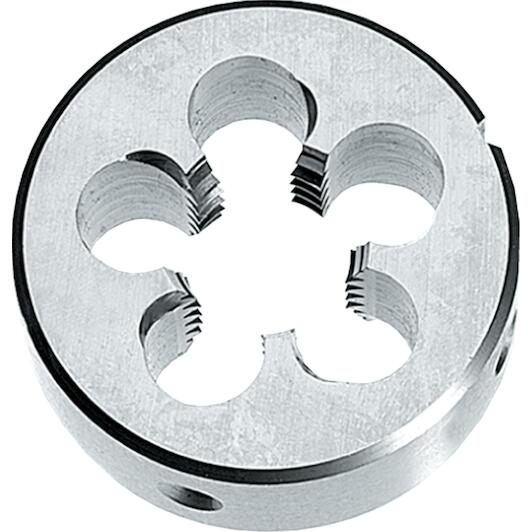

Phantom HSS Thread Die DIN EN 24231 gun nosed BSP (G)
DIN EN 24231, 55°, for hand and machine use

All Features

Thread type: BSPP
Pitch: 11 tpi
Cutting direction: Right
Outer diameter: 65 mm
Thickness: 18 mm
Thread size: 1"

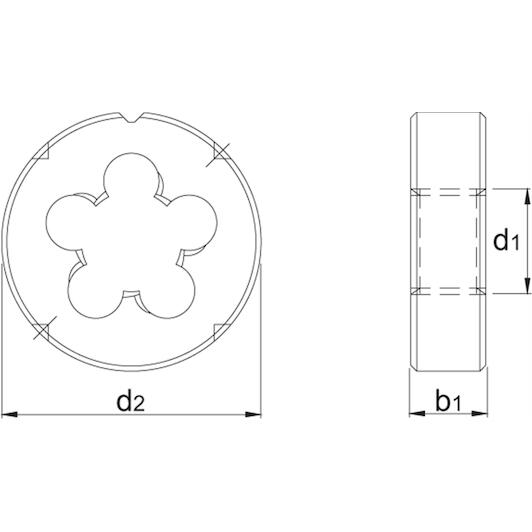

Outside ø (d2): 65 mm
Tool material: HSS
Thread diameter (d1): G 1
Tolerance d1 (tol. d1): class A
Die thickness (b1): 18 mm
Surface: Bright
Norm: DIN EN 24231
Pitch-inch (tpi): 11 Threads per inch

Brand PHANTOM
51300127
EAN 8716563336068
Supplier number PHANTOM 275203325

Frequently asked questions about this product

Answered by specialists

What type of thread does this circular die cut?: This die cuts right-hand BSP gas thread (BSPP/G) with a 1" size and a pitch of 11 TPI.
What are the dimensions of this round die?: The die has an outer diameter of 65 mm and a thickness of 18 mm in accordance with DIN EN 24231.
What is the benefit of the spiral point (gun nose)?: The spiral point pushes chips forward, ensuring smooth chip evacuation and a clean thread finish.
Can this die be used for both manual and machine threading?: Yes, its HSS construction and DIN EN 24231 design make it suitable for both hand and machine applications.
