What type of thread does this circular die cut?

It cuts right-hand BSP (BSPP / G) gas threads in 1/2" with a pitch of 14 tpi according to DIN EN 24231.

What are the dimensions of this die?

It has an outer diameter of 45 mm and a thickness of 14 mm. Use a compatible 45x14 mm die stock.

What is the benefit of the spiral point?

The spiral point pushes chips forward away from the cutting area, preventing clogging and ensuring a cleaner thread.

Can this die be used for both manual and machine work?

Yes, the high-speed steel (HSS) construction and spiral point make it suitable for both hand threading and machine use.

What is the cutting direction of this tool?

This circular die is designed for right-hand cutting.

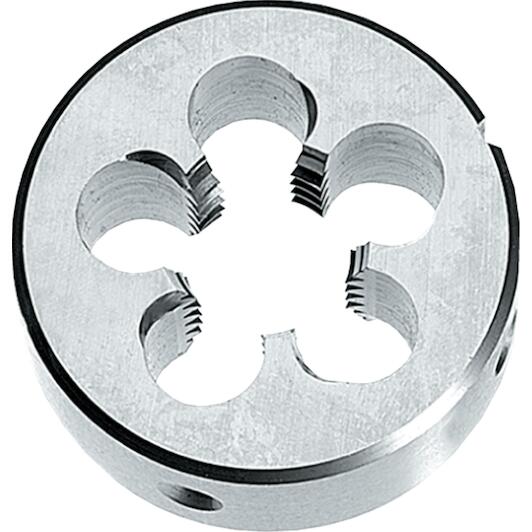

PHANTOM 275202096 HSS round cutting plate DIN EN 24231 peel cut' BSP (gas thread) 1/2"-14

Name: PHANTOM 275202096 HSS round cutting plate DIN EN 24231 peel cut' BSP (gas thread) 1/2"-14
Brand: PHANTOM
SKU: 51300123
Price: 119.19 EUR
Availability: InStock

Supplier number: PHANTOM 275202096 | EAN 8716563336020

119.19 tax incl.

€98.50 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

✆ Talk to a specialist

Accurate gas threading with Phantom

Practical benefits

Smooth forward chip clearing: The spiral point pushes chips cleanly forward, ensuring you achieve dependable process reliability while cutting BSP threads.
Manual or machine operation: You can easily adapt this round die for both mechanized threading tasks and hand-held holder applications.
Hardened high speed steel: Built from tough HSS to DIN EN 24231, this tool offers you prolonged service life when working on 1/2" pipes.

In a nutshell

The right choise for

With the Phantom 27.520 hss circular die, you cleanly and accurately cut 1/2" bsp gas threads on pipes and solid bar stock. Thanks to the spiral point design, chips are pushed forward away from the cutting zone, preventing clogging and ensuring smooth, trouble-free threading. Manufactured from durable hss to din en 24231 standards, this tool delivers extended service life during demanding metalworking and pipe installation jobs. Whether you are re-threading connections manually with a 45x14 mm die stock or running mechanized operations, you can rely on precise results for tight gas and water line fittings.

Product information FAQ

€119.19

In stock - tax incl.

Key features according to our expert

Thread type: BSPP
Pitch: 14 tpi
Cutting direction: Right
Outer diameter: 45 mm
Thickness: 14 mm
Thread size: 1/2"

Product Description:

Phantom HSS Thread Die DIN EN 24231 gun nosed BSP (G)
DIN EN 24231, 55°, for hand and machine use

All Features

Thread type: BSPP
Pitch: 14 tpi
Cutting direction: Right
Outer diameter: 45 mm
Thickness: 14 mm
Thread size: 1/2"

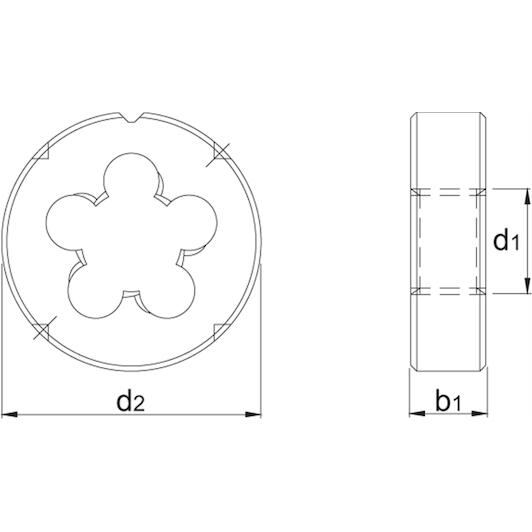

Outside ø (d2): 45 mm
Tool material: HSS
Thread diameter (d1): G 1/2
Tolerance d1 (tol. d1): class A
Die thickness (b1): 14 mm
Surface: Bright
Norm: DIN EN 24231
Pitch-inch (tpi): 14 Threads per inch

Brand PHANTOM
51300123
EAN 8716563336020
Supplier number PHANTOM 275202096

Frequently asked questions about this product

Answered by specialists

What type of thread does this circular die cut?: It cuts right-hand BSP (BSPP / G) gas threads in 1/2" with a pitch of 14 tpi according to DIN EN 24231.
What are the dimensions of this die?: It has an outer diameter of 45 mm and a thickness of 14 mm. Use a compatible 45x14 mm die stock.
What is the benefit of the spiral point?: The spiral point pushes chips forward away from the cutting area, preventing clogging and ensuring a cleaner thread.
Can this die be used for both manual and machine work?: Yes, the high-speed steel (HSS) construction and spiral point make it suitable for both hand threading and machine use.
What is the cutting direction of this tool?: This circular die is designed for right-hand cutting.
