PHANTOM

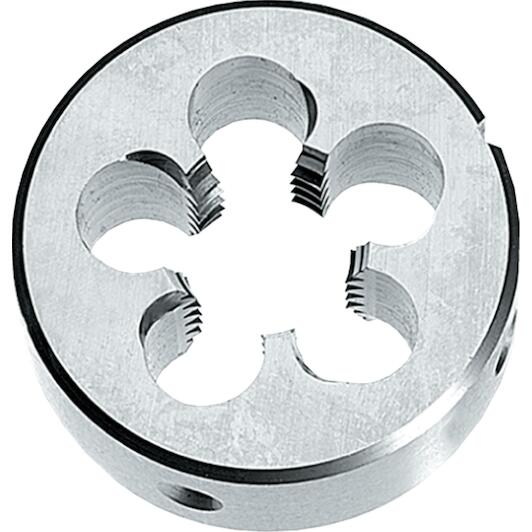

PHANTOM 274200185 HSS round cutting plate DIN EN 22568 peel cut' UNF No.1-72

83.37 tax incl.
€68.90 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product Description:

  • Phantom HSS Thread Die DIN EN 22568 gun nosed UNF
  • DIN EN 22568, 60°, for hand and machine use
Key features according to our expert
  • Thread type: UN/UNF
  • Pitch: 72 tpi
  • Cutting direction: Right
  • Outer diameter: 16 mm
  • Thickness: 5 mm
  • Thread size: Nr.1
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563335658
  • Supplier number: PHANTOM 274200185
Thread type
UN/UNF
Pitch
72 tpi
Cutting direction
Right
Outer diameter
16 mm
Thickness
5 mm
Thread size
Nr.1

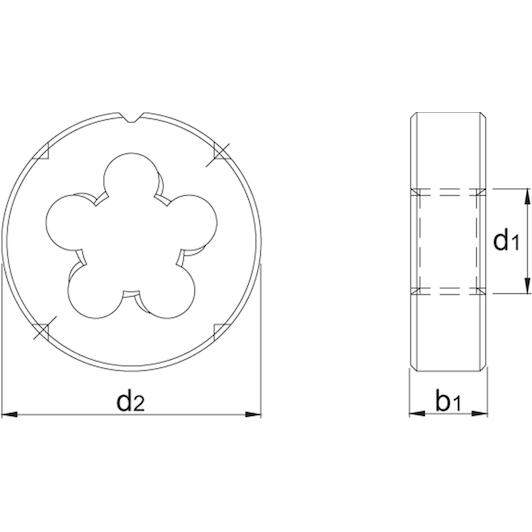

Outside ø (d2)
16 mm
Tool material
HSS
Thread diameter (d1)
UNF Nr. 1
Tolerance d1 (tol. d1)
2A
Die thickness (b1)
5 mm
Surface
Bright
Norms
DIN EN 22568
Pitch-inch (tpi)
72 Threads per inch
