Which thread does this die cut?

It cuts right-hand metric fine thread (MF20) with a 1.5 mm pitch in accordance with DIN EN 22568.

What are the dimensions of this round die?

This round threading die has an outer diameter of 45 mm and a thickness of 14 mm.

What is the advantage of the spiral point entry?

The spiral point (gun nose) pushes chips forward ahead of the cut, ensuring a cleaner thread finish and reduced friction.

What material is this die made from?

The die is made from HSS (high-speed steel) for reliable thread cutting in various metals.

Which die stock holder is required?

You need a standard die stock designed for round dies with an outer diameter of 45 mm and a thickness of 14 mm.

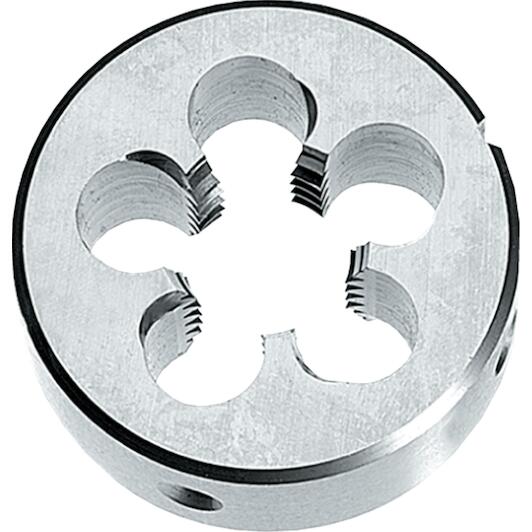

PHANTOM 272202015 HSS round cutting plate DIN EN 22568 metric fine' peel cut MF20x1'5

Name: PHANTOM 272202015 HSS round cutting plate DIN EN 22568 metric fine' peel cut MF20x1'5
Brand: PHANTOM
SKU: 51300076
Price: 126.87 EUR
Availability: InStock

Supplier number: PHANTOM 272202015 | EAN 8716563333463

126.87 tax incl.

€104.85 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

✆ Talk to a specialist

Precise fine metric threading with Phantom

Practical benefits

Efficient forward chip removal: The spiral point pushes chips forward to prevent clogging, ensuring you achieve clean external threads on every pass.
Accurate and durable cutting: Crafted from high-speed steel according to DIN EN 22568, it delivers exact MF20x1.5 threads in varied steel materials.
Manual or machine operation: With its standard 45x14 mm dimensions, you can easily use this round die in hand holders or production machinery.

In a nutshell

The right choise for

With the Phantom 27.220 hss round threading die, you can cleanly and precisely cut fine metric threads with confidence. Whether you are cutting new MF20x1.5 external threads on shafts and bolts or restoring damaged threads, this tool delivers consistent accuracy. The spiral point geometry pushes chips forward, reducing friction and preventing blockages during the cut. Manufactured from durable hss in accordance with din en 22568, it provides dimensional stability in unalloyed and low-alloy steels. With standard 45x14 mm dimensions, you can use this right-hand die effortlessly in hand die stocks or on production machinery.

Product information FAQ

€126.87

In stock - tax incl.

Key features according to our expert

Thread type: Metric fine
Pitch: 1,5 mm
Cutting direction: Right
Outer diameter: 45 mm
Thickness: 14 mm
Thread size: M20

Product Description:

Phantom HSS Thread Die DIN EN 22568 Metric Fine gun nosed
DIN EN 22568, 60°, for hand and machine use

All Features

Thread type: Metric fine
Pitch: 1,5 mm
Cutting direction: Right
Outer diameter: 45 mm
Thickness: 14 mm
Thread size: M20

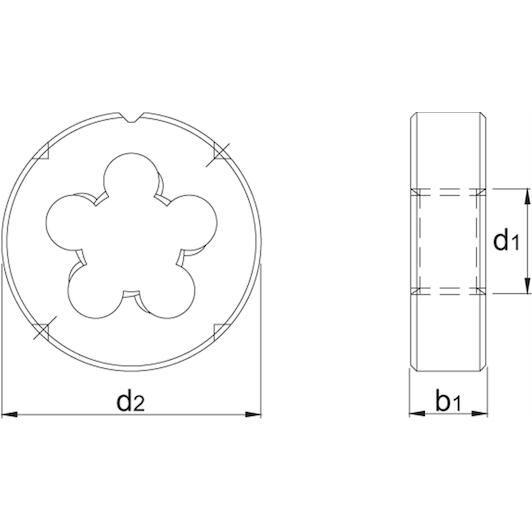

Outside ø (d2): 45 mm
Tool material: HSS
Thread diameter (d1): MF20
Tolerance d1 (tol. d1): 6g
Die thickness (b1): 14 mm
Surface: Bright
Norm: DIN EN 22568
Pitch (p): 1,5 mm

Brand PHANTOM
51300076
EAN 8716563333463
Supplier number PHANTOM 272202015

Frequently asked questions about this product

Answered by specialists

Which thread does this die cut?: It cuts right-hand metric fine thread (MF20) with a 1.5 mm pitch in accordance with DIN EN 22568.
What are the dimensions of this round die?: This round threading die has an outer diameter of 45 mm and a thickness of 14 mm.
What is the advantage of the spiral point entry?: The spiral point (gun nose) pushes chips forward ahead of the cut, ensuring a cleaner thread finish and reduced friction.
What material is this die made from?: The die is made from HSS (high-speed steel) for reliable thread cutting in various metals.
Which die stock holder is required?: You need a standard die stock designed for round dies with an outer diameter of 45 mm and a thickness of 14 mm.
