Which thread size does this die cut?

This circular die cuts a right-hand metric M24 thread with a 3 mm pitch.

What are the outer dimensions of this die?

The circular die has an outer diameter of 55 mm and a thickness of 22 mm.

What is the benefit of the spiral point?

The spiral point directs chips forward away from the cutting zone, making it ideal for production work.

Which die stock do you need for this tool?

You need a standard die stock designed to hold circular dies with a 55 mm outer diameter.

What material is this die made from?

This circular die is made of HSS steel according to DIN EN 22568 standards.

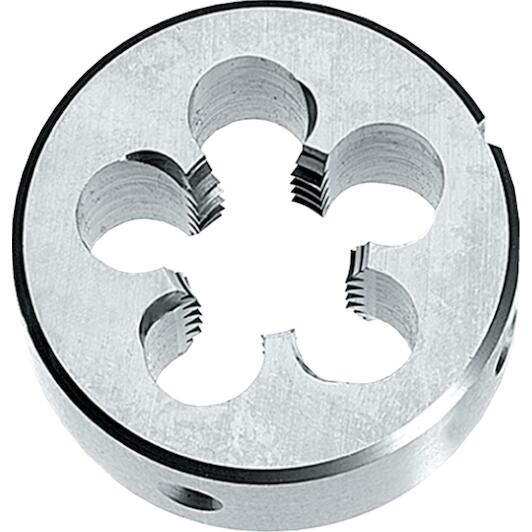

PHANTOM 271202400 HSS round cutting plate DIN EN 22568 metric' peel cut M24

Name: PHANTOM 271202400 HSS round cutting plate DIN EN 22568 metric' peel cut M24
Brand: PHANTOM
SKU: 51300027
Price: 167.95 EUR
Availability: InStock

Supplier number: PHANTOM 271202400 | EAN 8716563332794

167.95 tax incl.

€138.80 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

✆ Talk to a specialist

Precise external threading with HSS

Practical benefits

Smooth and clean cuts: The gun-nosed design for M24 threads allows you to cut precise metric threads with a 3 mm pitch effortlessly.
Durable high speed steel: Made of robust HSS, the cutting edges maintain hardness and sharpness, giving you long-lasting performance on metal workpieces.
Standardized DIN EN fit: Built to DIN EN 22568 with dimensions 55x22 mm, it fits securely into standard die stocks for stable manual or machine use.

In a nutshell

The right choise for

With the Phantom hss circular die din en 22568, you can cut precise right-hand metric M24 external threads with a 3 mm pitch on shafts, rods, and bolts. The gun-nosed spiral point directs chips forward away from the cutting zone, ensuring clean threads and smooth operation during manual or machine use. Made from high-speed steel (HSS), it delivers excellent wear resistance and retains its cutting sharpness throughout demanding metalworking tasks in steel and non-ferrous metals. Designed with standardized dimensions of 55x22 mm, this die fits securely into standard die stocks for dependable accuracy.

Product information FAQ

€167.95

In stock - tax incl.

Key features according to our expert

Thread type: Metric
Pitch: 3 mm
Cutting direction: Right
Outer diameter: 55 mm
Thickness: 22 mm
Thread size: M24

Product Description:

Phantom HSS Thread Die DIN EN 22568 Metric Coarse gun nosed
DIN EN 22568, 60°, from M3 Gun nosed, for hand and machine use

All Features

Thread type: Metric
Pitch: 3 mm
Cutting direction: Right
Outer diameter: 55 mm
Thickness: 22 mm
Thread size: M24

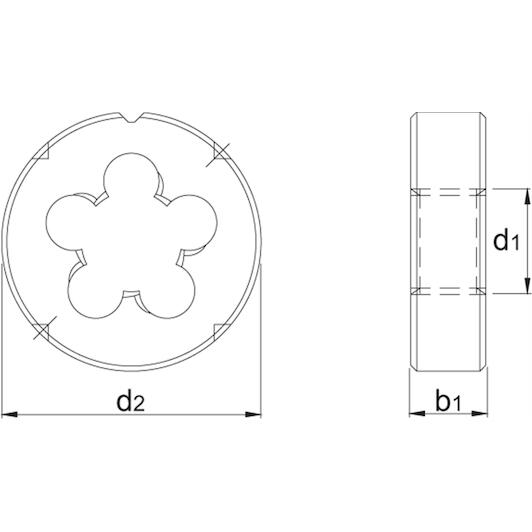

Outside ø (d2): 55 mm
Tool material: HSS
Thread diameter (d1): M24
Tolerance d1 (tol. d1): 6g
Die thickness (b1): 22 mm
Surface: Bright
Norm: DIN EN 22568
Pitch (p): 3 mm

Brand PHANTOM
51300027
EAN 8716563332794
Supplier number PHANTOM 271202400

Frequently asked questions about this product

Answered by specialists

Which thread size does this die cut?: This circular die cuts a right-hand metric M24 thread with a 3 mm pitch.
What are the outer dimensions of this die?: The circular die has an outer diameter of 55 mm and a thickness of 22 mm.
What is the benefit of the spiral point?: The spiral point directs chips forward away from the cutting zone, making it ideal for production work.
Which die stock do you need for this tool?: You need a standard die stock designed to hold circular dies with a 55 mm outer diameter.
What material is this die made from?: This circular die is made of HSS steel according to DIN EN 22568 standards.
