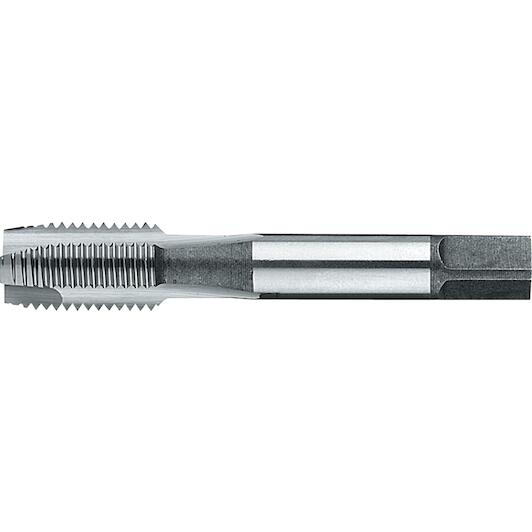

PHANTOM 251051316 HSS machine tap ISO 529 BSP (gas thread) for through-holes 1/4"-19

Show more features

Thread size

1/4"

Max. cutting depth

29

Thread type

BSPP

Material (machine tap)

HSS

With innercooling

No

Machine tap application

Through hole

Square size

7,1 mm

Shank type

External square

Shank size

9 mm

Cutting direction

Right

Pitch

19 tpi

Shank ø (d2)

9 mm

Pre-drilling diameter (ø)

11,8 mm

Total length (l1)

89 mm

Tool material

HSS

Flute length (l2)

29 mm

Coolant feed

No

Thread diameter (d1)

G 1/4

Square wide (sw)

7,1 mm

Hole type

for through holes

Surface

Bright

Shape

B

Norms

ISO 529

Pitch-inch (tpi)

19 Threads per inch
