PFERD V 1612/6 EDGE R3,0 carbide rounding cutter 16x12mm 6mm edge processing - 21152936

Name: PFERD V 1612/6 EDGE R3,0 carbide rounding cutter 16x12mm 6mm edge processing - 21152936
Brand: PFERD
SKU: 03235728
Price: 214.63 EUR
Availability: PreOrder

214.63 tax incl.

€177.38 excl. VAT (incl. all environmental contributions)

PFERD V 1612/6 EDGE R3,0 carbide rounding cutter 16x12mm 6mm edge processing - 21152936

€214.63

On order: delivered from 26/05/2026

each

Delivery by DHL

Product information

Product description

PFERD Tungsten carbide concave radius burr EDGE V dia. 16x12 mm shank dia. 6 mm work on edges

Characteristics

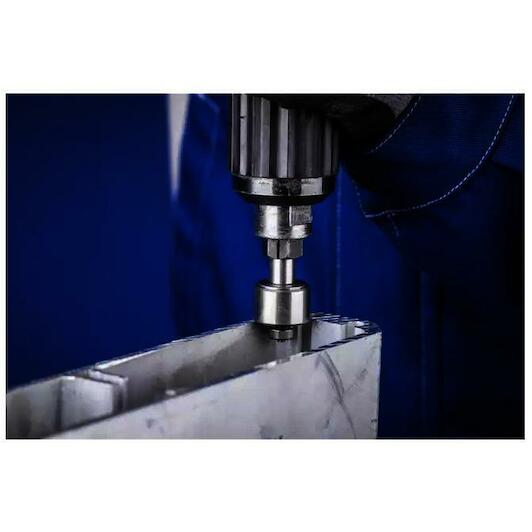

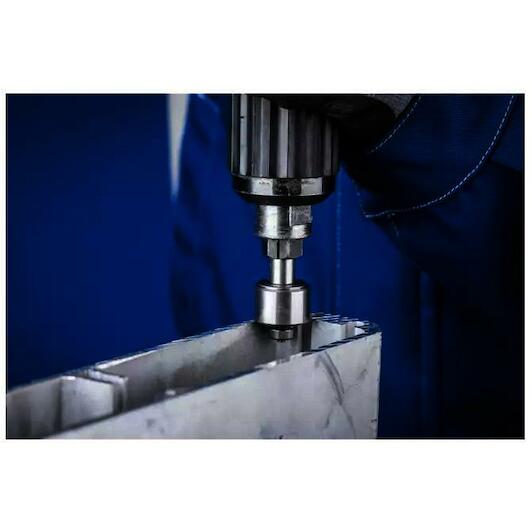

Tungsten carbide burrs with the EDGE cut have been especially developed for defined work on edges
The special design allows the burr to run directly along the edges without damaging the workpiece
In just one step, it is possible to achieve precise edge shapes
Among other things, rounding edges is a precautionary measure for anti-corrosion protection according to: ISO 129443, ISO 85013, SOLAS XII/6,3 (Ref
T4/3,01 MSC
1/Circ
1198)
Concave radius burrs for the production of precise radii
Suitable for the production and processing of 3 mm outer radii

Advantages:

Special design for precise guidance.
Safe and comfortable to guide.
Creates exact edge shapes in one single step.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

Key features according to our expert

Diameter: 16 mm
Shank size (milling cutter): 6 mm
Shank type: Cylindrical
Shape (burr cutter): Special
Cutting length: 12 mm

Specifications / All features

Brand: PFERD
03235728
EAN: 4007220952412
Supplier number: PFERD 21152936

Diameter: 16 mm
Shank size (milling cutter): 6 mm
Shank type: Cylindrical
Shape (burr cutter): Special
Cutting length: 12 mm
Workable materials 3: Bronze
Processing tasks: Corners
Length, construction: 12
Processing tasks 3: Round up
Workable materials 12: Steel
Workable materials 16: Steel up to 700 N/mm² (< 220 HB)
Processing tasks 1: Deburring
ø sleeve: 25
Rpm up to, hardened refined steels above 1,200 n/mm²: 15000
Processing tasks 5: Edge processing (chamfering, rounding)
ø outside metric: 16
Workable materials 10: Non-ferrous metal hard
Workable materials 14: Steel up to 1,200 N/mm² (< 38 HRC)
Workable materials 7: Cobalt-based alloys
Rpm to, grey cast iron, white cast iron: 18000
Workable materials 20: White annealed cast iron (GTW, GJMW)
Rpm up to, hard non-ferrous metals: 7000
Rpm of, soft non-ferrous metals: 12000
Rpm of, hard non-ferrous metals: 5000
Rpm of, steels up to 1,200 n/mm²: 12000
Rpm van, grey cast iron, white cast iron: 12000
Gearing: EDGE
Rpm up to, soft non-ferrous metals: 18000
Rpm up to, steels up to 1,200 n/mm²: 18000
Rpm of, heat-resistant materials: 5000
Workable materials 1: Black annealed cast iron (GTS, GJMB)
Workable materials 4: High-speed steel
Workable materials 5: Cast iron
Workable materials 18: Titanium alloys
Workable materials: Annealed cast iron
Workable materials 6: Cast steel
Length, toothed: 3
Workable materials 2: Brass
Workable materials 21: Zinc
Processing tasks 2: Milling
Workable materials 11: Hardened, heat-treated steels above 1,200 N/mm² (< 38 HRC)
Workable materials 9: Grey/lamellar/nodular cast iron (GG/GJL, GGG/GJS)
Workable materials 15: Steel above 700 N/mm² (> 220 HB)
Workable materials 19: Tool steel
Corner execution radius: 3
Length, total: 52
Processing tasks 4: Edge processing
ø shaft metric: 6
Workable materials 17: Titanium
Workable materials 13: Steel, cast steel
ø ball bearing: 10
Rpm to, heat-resistant materials: 9000
Workable materials 8: Copper
Rpm of, hardened refined steels above 1,200 n/mm²: 12000
