PFERD

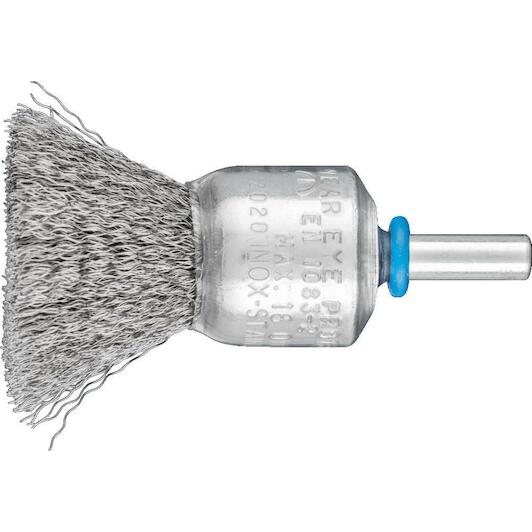

PFERD PBU 2022/6 INOX 0,15 brush unturned Ø 20 mm pin-Ø 6 mm stainless steel wire-Ø 0.15 - 43202011

18.76 tax incl.
€15.50 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/08/2026
each

The minimum purchase order quantity for the product is 10.

  • Delivery by DHL

Product description

  • PFERD End brush crimped PBU dia. 20 mm shank dia. 6 mm stainless steel wire dia. 0.15

Characteristics

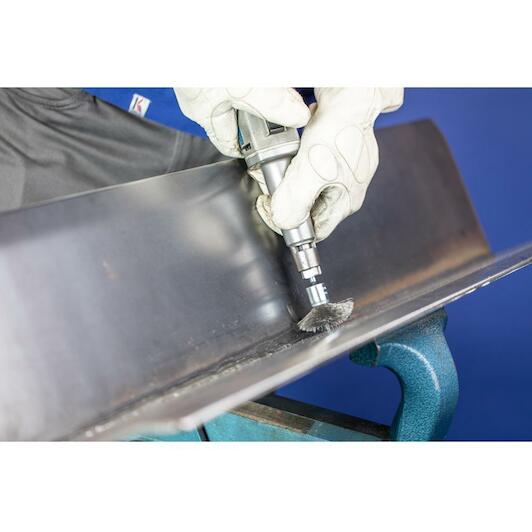

  • Suitable for light brushing such as deburring, cleaning and derusting
  • End brush with plastic-covered brush body
  • In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD uses wire quality 1,4310 (V2A) for all INOX brushes
  • Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life
  • All PFERD brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A
  • The wire quality 1,4310 tends to become ferromagnetic in the case of cold working; i
  • E
  • It can be attracted using magnets
  • ;The reason for this is a change in the microstructure caused by deformation ( e.g. during the wire drawing process)
  • This does not have any impact on the quality and corrosion resistance of the INOX filament
  • The filament is still resistant to corrosion
  • Stainless steel wire (INOX) withstands temperatures up to 450 °C

Advantages:

  • The brush is degreased and does not leave any oil residue on the workpiece.
  • Optimal access to hard-to-reach areas such as drilled holes and cavities as the filament spreads out upon rotation.
  • The plastic covering prevents the risk of corrosion.
  • Very good corrosion resistance.
  • Creates fine surfaces.
Key features according to our expert
  • Brush diameter: 20 mm
  • Connection type (machine): Shank
  • Material (brush filament): Stainless steel
  • Wire thickness: 0,15 mm
  • Twisted: No
  • Height: 70 mm
  • Connection size (machine): 6 mm
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220598054
  • Supplier number: PFERD 43202011
Brush diameter
20 mm
Connection type (machine)
Shank
Material (brush filament)
Stainless steel
Wire thickness
0,15 mm
Twisted
No
Height
70 mm
Connection size (machine)
6 mm
Filling material
Stainless steel wire (INOX)
Processing tasks
Cleaning
Processing tasks 3
Removal of run-on colours
ø bowl
22
Length, trim
25
Processing tasks 1
Deburring
Workable materials 3
Non-ferrous metal hard
Processing tasks 5
Removal of lacquers
Max. rpm
18000
ø outside metric
20
Workable materials 5
Nickel-based alloys (e.g. Inconel and Hastelloy)
Workable materials 7
Other non-ferrous metals
Workable materials 10
Titanium
ø topping material
0.15
Rpm, opt., to
11700
Workable materials 1
Bronze
ø shaft metric
6
Workable materials 9
Stainless steel (INOX)
Workable materials 6
Nickel- or titanium-based superalloys
Workable materials
Aluminium
Workable materials 2
Cobalt-based alloys
Workable materials 4
Heat-resistant materials
Processing tasks 2
Derusting
Processing tasks 6
Roughening
Workable materials 11
Titanium alloys
Recording system
Pin
Length, total
70
Processing tasks 4
Removing oxide layers
Workable materials 8
soft titanium alloys (tensile strength 500 N/mm²)
Rpm, opt., of
7200
