PFERD

PFERD PBU 0505/3 INOX 0,10 miniature brush Ø 5 mm pin-Ø 3 mm stainless steel wire-Ø 0.10 - 43200352

6.24 tax incl.
€5.16 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

The minimum purchase order quantity for the product is 10.

  • Delivery by DHL

Product description

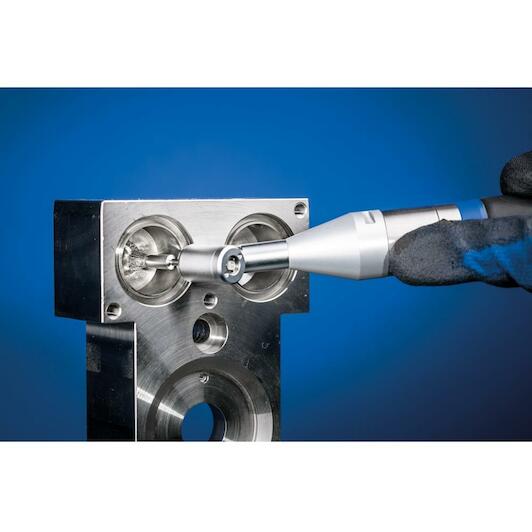

  • PFERD Miniature end brush PBU dia. 5 mm shank dia. 3 mm stainless steel wire dia. 0.10

Characteristics

  • Suitable for light brushing such as deburring, cleaning and polishing
  • PFERD offers a wide range of miniature brushes for precision work
  • These can be used on flexible shaft drives, micro motors or electric grinders
  • In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD uses wire quality 1,4310 (V2A) for all INOX brushes
  • Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life
  • All PFERD brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A
  • The wire quality 1,4310 tends to become ferromagnetic in the case of cold working; i
  • E
  • It can be attracted using magnets
  • ;The reason for this is a change in the microstructure caused by deformation ( e.g. during the wire drawing process)
  • This does not have any impact on the quality and corrosion resistance of the INOX filament
  • The filament is still resistant to corrosion
  • Stainless steel wire (INOX) withstands temperatures up to 450 °C

Advantages:

  • Maximum precision and efficiency in work on delicate workpieces.
  • Optimal access to hard-to-reach areas such as drilled holes and cavities as the filament spreads out upon rotation.
  • Very good corrosion resistance.
  • Creates fine surfaces.
Key features according to our expert
  • Brush diameter: 5 mm
  • Connection type (machine): Shank
  • Material (brush filament): Stainless steel
  • Wire thickness: 0,1 mm
  • Twisted: No
  • Height: 45 mm
  • Connection size (machine): 3 mm
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220032985
  • Supplier number: PFERD 43200352
Brush diameter
5 mm
Connection type (machine)
Shank
Material (brush filament)
Stainless steel
Wire thickness
0,1 mm
Twisted
No
Height
45 mm
Connection size (machine)
3 mm
Filling material
Stainless steel wire (INOX)
Processing tasks
Cleaning
Processing tasks 3
Removal of run-on colours
ø bowl
5
Length, trim
8
Processing tasks 1
Deburring
Workable materials 3
Non-ferrous metal hard
Processing tasks 5
Removal of lacquers
Max. rpm
25000
ø outside metric
5
Workable materials 5
Nickel-based alloys (e.g. Inconel and Hastelloy)
Workable materials 7
Other non-ferrous metals
Workable materials 10
Titanium
ø topping material
0.1
Rpm, opt., to
10000
Workable materials 1
Bronze
ø shaft metric
3
Workable materials 9
Stainless steel (INOX)
Workable materials 6
Nickel- or titanium-based superalloys
Workable materials
Aluminium
Workable materials 2
Cobalt-based alloys
Workable materials 4
Heat-resistant materials
Processing tasks 2
Derusting
Processing tasks 6
Roughening
Workable materials 11
Titanium alloys
Recording system
Pin
Length, total
45
Processing tasks 4
Removing oxide layers
Workable materials 8
soft titanium alloys (tensile strength 500 N/mm²)
Rpm, opt., of
4000
