PFERD

PFERD PBU 0505/3 DIA 400 0,40 miniature brush brush Ø 5 mm shank Ø 3 mm DIAMANT filament wire Ø 0.40 grit 400 - 47701649

87.46 tax incl.
€72.28 excl. VAT (incl. all environmental contributions)
On order: delivered from 25/08/2026
each

The minimum purchase order quantity for the product is 10.

  • Delivery by DHL

Product description

  • PFERD Miniature end brush PBU dia. 5 mm shank dia. 3 mm DIAMOND filament dia. 0.40 grit 400

Characteristics

  • Suitable for light brushing such as deburring, cleaning and polishing
  • PFERD offers a wide range of miniature brushes for precision work

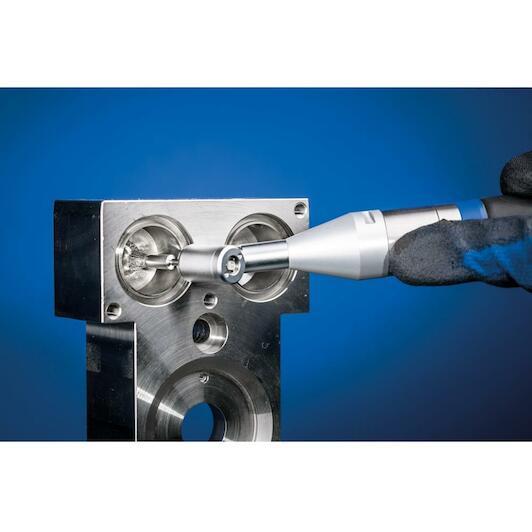

  • These can be used on flexible shaft drives, micro motors or electric grinders
  • Brushes with diamond (DIA) filament material are suitable for applications that place particular demands on the aggressiveness of the brush
  • They are primarily used on materials with high material strength
  • Plastic filament withstands temperatures up to 220 °C

Advantages:

  • Maximum precision and efficiency in work on delicate workpieces.

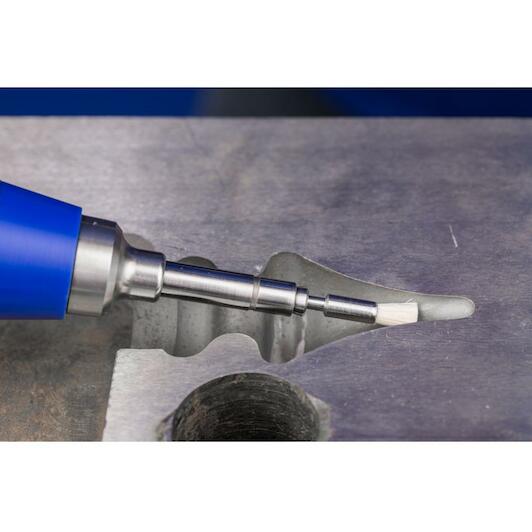

  • Optimal access to hard-to-reach areas such as drilled holes and cavities as the filament spreads out upon rotation.
  • Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Key features according to our expert
  • Brush diameter: 5 mm
  • Connection type (machine): Shank
  • Material (brush filament): Silicon carbide
  • Wire thickness: 0,4 mm
  • Twisted: No
  • Height: 45 mm
  • Connection size (machine): 3 mm
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220072844
  • Supplier number: PFERD 47701649
Brush diameter
5 mm
Connection type (machine)
Shank
Material (brush filament)
Silicon carbide
Wire thickness
0,4 mm
Twisted
No
Height
45 mm
Connection size (machine)
3 mm
Filling material
Diamond (DIA)
Processing tasks
Cleaning
Workable materials 12
Steel grades with hardness > 54 HRC
Workable materials 16
Carbide
ø bowl
5
Length, trim
8
Processing tasks 1
Deburring
Workable materials 3
Cobalt-based alloys
Max. rpm
25000
ø outside metric
5
Workable materials 1
Cast iron
Workable materials 14
Titanium
Workable materials 7
Nickel- or titanium-based superalloys
Workable materials 10
Stainless steel (INOX)
ø topping material
0.4
Rpm, opt., to
5000
Grit size
400
Workable materials 8
Other non-ferrous metals
Workable materials 5
Heat-resistant materials
Workable materials 2
Cast steel
Workable materials
Bronze
Workable materials 6
Nickel-based alloys (e.g. Inconel and Hastelloy)
Workable materials 11
Steel, cast steel
Workable materials 9
soft titanium alloys (tensile strength 500 N/mm²)
Workable materials 15
Titanium alloys
Recording system
Pin
Length, total
45
ø shaft metric
3
Workable materials 17
Wear-resistant coatings (spray-on and burnt alloys)
Workable materials 13
Steel up to 1,200 N/mm² (< 38 HRC)
Workable materials 4
Non-ferrous metal hard
Rpm, opt., of
1200
