PFERD KSK 1603/6 EDGE 45° carbide burr countersunk cone shape 45° 16x5mm 6mm machining of edges - 21115466

Name: PFERD KSK 1603/6 EDGE 45° carbide burr countersunk cone shape 45° 16x5mm 6mm machining of edges - 21115466
Brand: PFERD
SKU: 03235718
Price: 167.85 EUR
Availability: PreOrder

Supplier number: PFERD 21115466 | EAN 4007220952436

167.85 tax incl.

€138.72 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Delivery by DHL

✆ Talk to a specialist

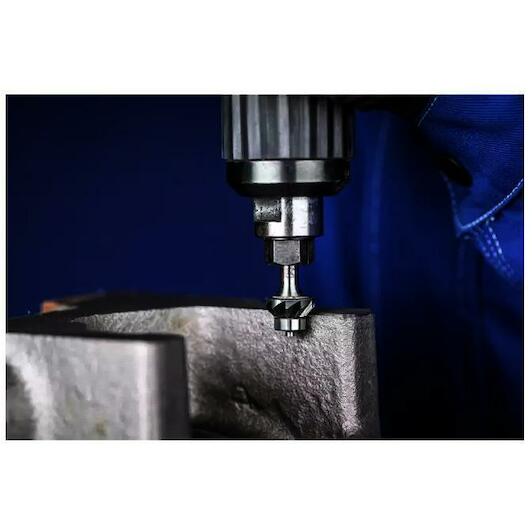

Precise edge chamfering with KSK 1603/6 EDGE 45°

Practical benefits

Accurate 45° edge beveling: You guide the burr smoothly along edges to create cleanly defined 45° chamfers without damaging workpieces.
Durable solid carbide build: The hardened carbide structure delivers outstanding service life and reliable material removal during daily use.
Standard 6MM shank fit: Featuring a 6 mm cylindrical shank, you easily mount the burr into standard die grinders and rotary tools.

In a nutshell

The right choise for

With the Pferd ksk 1603/6 edge 45° pf solid carbide burr, you finish edges and chamfers with dependable accuracy. Its conical counterbore shape with an inclusive 90° angle creates cleanly defined 45° bevels without gouging the workpiece. The durable solid carbide build removes sharp burrs and imperfections after sawing or laser cutting while ensuring high service life during intensive edge processing. Featuring a 16 mm head diameter, a 3 mm cutting length, and a 6 mm cylindrical shank, it mounts securely into standard die grinders for stable and controlled material removal.

Product information FAQ

€167.85

tax incl.

Key features according to our expert

Diameter: 16 mm
Shank size (milling cutter): 6 mm
Shank type: Cylindrical
Shape (burr cutter): Special
Cutting length: 3 mm

Product description

PFERD Tungsten carbide burr EDGE conical counterbore KSK 45 ° dia. 16x03 mm shank dia. 6 mm work on edges

Characteristics

Tungsten carbide burrs with the EDGE cut have been especially developed for defined work on edges
The special design allows the burr to run directly along the edges without damaging the workpiece
In just one step, it is possible to achieve precise edge shapes
Among other things, rounding edges is a precautionary measure for anti-corrosion protection according to: ISO 129443, ISO 85013, SOLAS XII/6,3 (Ref
T4/3,01 MSC
1/Circ
1198)
Conical counterbore burr for the production of precisely defined chamfers
Suitable for counterboring and chamfering of defined 45° chamfer angles

Advantages:

Special design for precise guidance.
Safe and comfortable to guide.
Creates exact edge shapes in one single step.
The highly accurate concentricity enables impactfree working without creating chatter marks. This considerably reduces wear on the tool and tool drive.

All Features

Diameter: 16 mm
Shank size (milling cutter): 6 mm
Shank type: Cylindrical
Shape (burr cutter): Special
Cutting length: 3 mm
Processing tasks 5: Edge processing (chamfering, rounding)
Rpm up to, hardened refined steels above 1,200 n/mm²: 15000
Rpm up to, hard non-ferrous metals: 7000
Length, construction: 12
Rpm of, hard non-ferrous metals: 5000
Rpm of, soft non-ferrous metals: 12000
Rpm to, grey cast iron, white cast iron: 18000
Rpm of, steels up to 1,200 n/mm²: 12000
Rpm van, grey cast iron, white cast iron: 12000
Gearing: EDGE
Rpm up to, soft non-ferrous metals: 18000
Rpm up to, steels up to 1,200 n/mm²: 18000
Rpm of, heat-resistant materials: 5000
Rpm of, hardened refined steels above 1,200 n/mm²: 12000
Processing tasks: Corners
Corner: 90
Workable materials: Annealed cast iron
Length, toothed: 3
Processing tasks 4: Edge processing
ø shaft metric: 6
ø ball bearing: 10
Rpm to, heat-resistant materials: 9000

Brand PFERD
03235718
EAN 4007220952436
Supplier number PFERD 21115466

Frequently asked questions about this product

Answered by specialists

What is this carbide burr used for?: This burr is designed for precise edge finishing and chamfering at a 45° angle.
What is the shank diameter of this burr?: It features a cylindrical shank with a 6 mm diameter, compatible with standard 6 mm collets.
What are the dimensions of the burr head?: The head has an outer diameter of 16 mm and a cutting length of 3 mm.
What shape does this carbide burr have?: It features a conical counterbore shape (KSK) with an inclusive 90° angle (45° chamfer).
