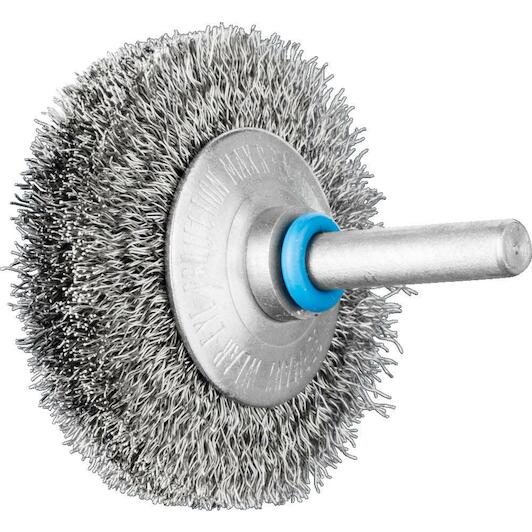

PFERD KBUIT 5010/6 INOX 0,20 disk brush unturned Ø 50x10 mm pin-Ø 6 mm stainless steel wire-Ø 0.20 - 43225017

47.55 tax incl.
€39.30 excl. VAT (incl. all environmental contributions)
On order: delivered from 25/08/2026
each

The minimum purchase order quantity for the product is 10.

  • Delivery by DHL

Product description

  • PFERD INOX-TOTAL bevel brush crimped KBUIT dia. 50x10 mm shank dia. 6 mm stainless steel wire dia. 0.20

Characteristics

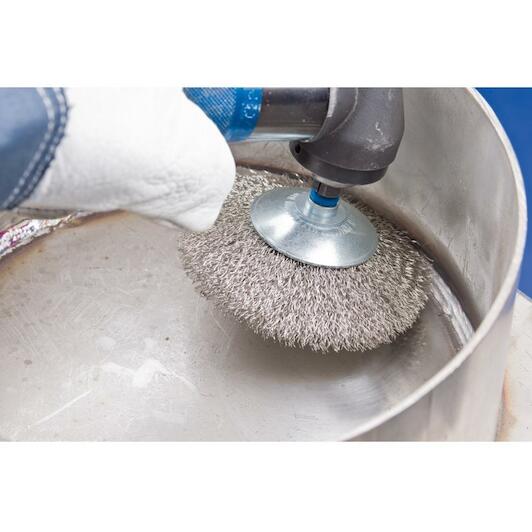

  • Excellent for medium-duty brushing such as deburring, cleaning, and removal of heat discolouration
  • In addition to brushes with a stainless steel filament, PFERD also offers brushes for work on stainless steel (INOX) with the INOX-TOTAL type
  • They are particularly well-suited to use in extremely critical environments
  • In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD uses wire quality 1,4310 (V2A) for all INOX brushes
  • Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life
  • All PFERD brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A
  • The wire quality 1,4310 tends to become ferromagnetic in the case of cold working; i
  • E
  • It can be attracted using magnets
  • ;The reason for this is a change in the microstructure caused by deformation ( e.g. during the wire drawing process)
  • This does not have any impact on the quality and corrosion resistance of the INOX filament
  • The filament is still resistant to corrosion
  • Stainless steel wire (INOX) withstands temperatures up to 450 °C

Advantages:

  • The brush is degreased and does not leave any oil residue on the workpiece.
  • Maximum protection against corrosion as all components are produced from stainless steel (INOX) in quality 1.4310 (V2A).
  • Highly flexible, enabling optimal adjustment to the workpiece contour.
  • Optimal access to hard-to-reach areas such as inner edges, grooves and keyways.
  • Very good corrosion resistance.
  • Creates fine surfaces.
Key features according to our expert
  • Brush diameter: 50 mm
  • Connection size (machine): 6 mm
  • Connection type (machine): Shank
  • Wire thickness: 0,2 mm
  • Twisted: No
  • Thickness: 10 mm
  • Max. no-load speed: 15000 rpm
  • Material (brush filament): Stainless steel
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220936474
  • Supplier number: PFERD 43225017
Brush diameter
50 mm
Connection size (machine)
6 mm
Connection type (machine)
Shank
Wire thickness
0,2 mm
Twisted
No
Thickness
10 mm
Max. no-load speed
15000 rpm
Material (brush filament)
Stainless steel
Filling material
Stainless steel wire (INOX)
Workable materials 1
Bronze
Processing tasks
Cleaning
Processing tasks 3
Removal of run-on colours
Length, trim
10
Processing tasks 1
Deburring
Workable materials 3
Non-ferrous metal hard
Processing tasks 5
Removal of lacquers
Max. rpm
15000
ø outside metric
50
Workable materials 9
Stainless steel (INOX)
Workable materials 7
Other non-ferrous metals
Workable materials 10
Titanium
ø topping material
0.2
Rpm, opt., to
9800
Workable materials 5
Nickel-based alloys (e.g. Inconel and Hastelloy)
Processing tasks 4
Removing oxide layers
Workable materials 4
Heat-resistant materials
Workable materials 6
Nickel- or titanium-based superalloys
Workable materials
Aluminium
Workable materials 2
Cobalt-based alloys
Width metric
10
Processing tasks 2
Derusting
Processing tasks 6
Roughening
Workable materials 11
Titanium alloys
Recording system
Pin
Length, total
49
ø shaft metric
6
Workable materials 8
soft titanium alloys (tensile strength 500 N/mm²)
Rpm, opt., of
6000
