PFERD

PFERD DZY-N 18,0-10/6 D 126 diamond grinding pin cylindrical 18 mm shank Ø 6 mm D126 (mid.) for grinding bores/radii - 36018010

65.58 tax incl.
€54.20 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/08/2026
each

  • Delivery by DHL

Product description

  • PFERD Diamond grinding point cylindrical dia. 18 mm shank dia. 6 mm D126 (medium) for grinding holes and radii

Characteristics

  • Electroplated diamond and CBN grinding points are used for both wet and dry grinding

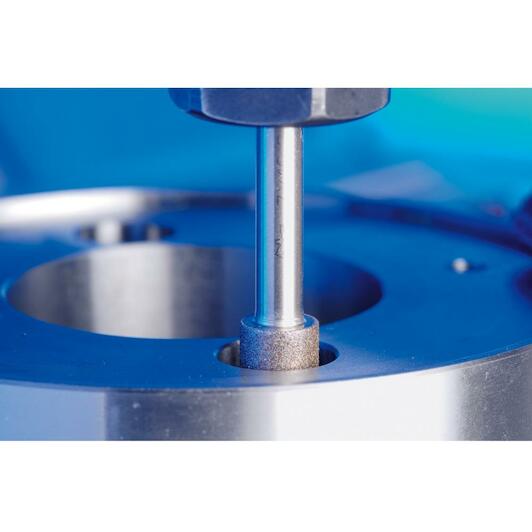

  • The cylindrical shape ZY is suitable for grinding bores, radii and contours in stationary or manual applications
  • N = non-stepped shank Grinding points with a diameter of 8 mm or more have a recess on the front surface
Key features according to our expert
  • Diameter: 18 mm
  • Grit size: D126
  • Shank size: 6 mm
  • Shape (grinding point): Cylinder
  • Height: 10 mm
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220258163
  • Supplier number: PFERD 36018010
Diameter
18 mm
Grit size
D126
Shank size
6 mm
Shape (grinding point)
Cylinder
Height
10 mm
Width metric
10
ø outside metric
18
Processing tasks 1
Finish
Length, pin
50
Processing tasks 3
Inner grinding
Processing tasks
Deburring
Workable materials 1
Ferrite (ferrimagnetic materials)
Workable materials 5
Technical ceramics
Workable materials 4
Nickel- or titanium-based superalloys
Processing tasks 2
Grinding out
ø shaft metric
6
Processing tasks 4
Edge processing (chamfering, rounding)
Workable materials 2
Glass
Workable materials 6
Carbide
Workable materials
Abrasive materials
Workable materials 3
Graphite and carbon brushes
