PFERD

PFERD BZY-N 14,0-10/6 B 126 CBN cylindrical 14.0 mm shank Ø 6 mm B126 (mid.) for grinding bores/radii - 36114010

50.70 tax incl.
€41.90 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/07/2026
each

  • Delivery by DHL

Product description

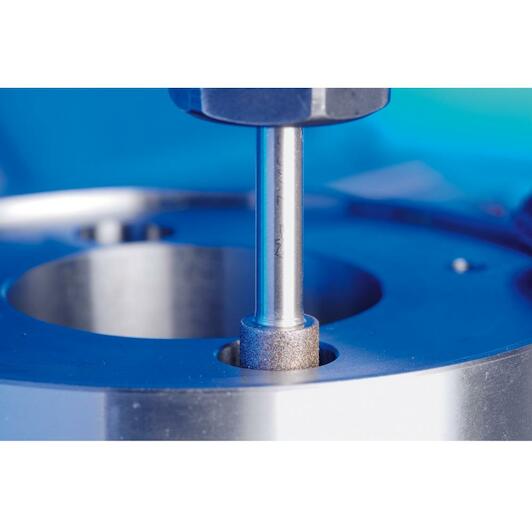

  • PFERD CBN grinding point cylindrical dia. 14.0 mm shank dia. 6 mm B126 (medium) for grinding holes and radii

Characteristics

  • Electroplated diamond and CBN grinding points are used for both wet and dry grinding

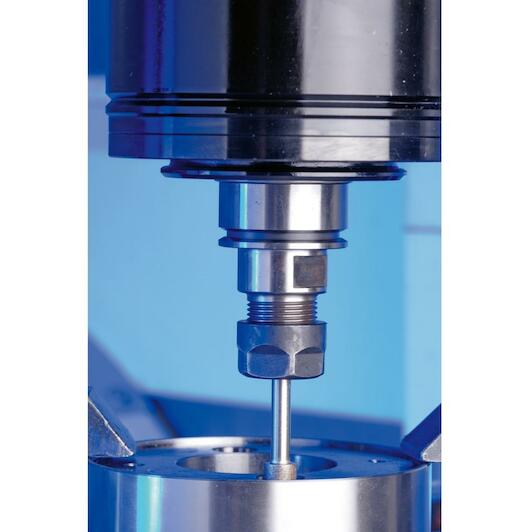

  • The cylindrical shape ZY is suitable for grinding bores, radii and contours in stationary or manual applications
  • N = non-stepped shank Grinding points with a diameter of 8 mm or more have a recess on the front surface
Key features according to our expert
  • Diameter: 14 mm
  • Grit size: B126
  • Shank size: 6 mm
  • Shape (grinding point): Cylinder
  • Height: 10 mm
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220258491
  • Supplier number: PFERD 36114010
Diameter
14 mm
Grit size
B126
Shank size
6 mm
Shape (grinding point)
Cylinder
Height
10 mm
Width metric
10
ø outside metric
14
Processing tasks 1
Finish
Length, pin
50
Processing tasks 3
Inner grinding
Processing tasks
Deburring
Workable materials 1
Roller and ball bearing steels
Processing tasks 2
Grinding out
ø shaft metric
6
Processing tasks 4
Edge processing (chamfering, rounding)
Workable materials 2
Steel grades with hardness > 54 HRC
Workable materials
High-speed steel
Workable materials 3
Tool steel
