pferd_35003273
PFERD

PFERD A 3 6,3 AR 30 O5V shank shape A 3 25x70 mm shank Ø 6.3 mm A30 for steel and cast steel - 35003273

8.41 tax incl.
€6.95 excl. VAT (incl. all environmental contributions)
On order: delivered from 04/09/2026
each

The minimum purchase order quantity for the product is 10.

  • Delivery by DHL

Product description

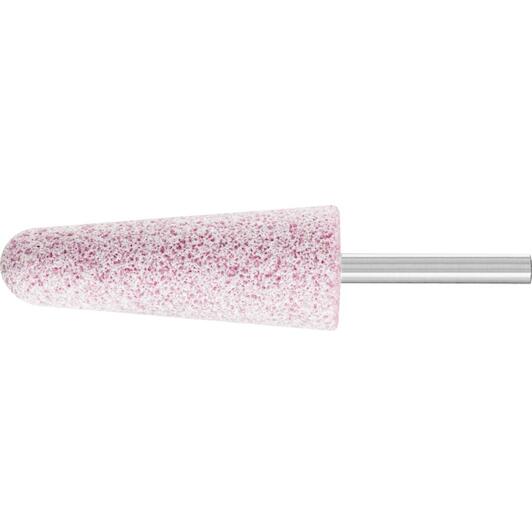

  • PFERD STEEL EDGE mounted point shape A 3 dia. 25x70 mm shank dia. 6.3 mm A30 for steel and cast steel

Characteristics

  • The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components
  • Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours
  • Series A mounted points are generally used on larger components
  • Due to the special shapes, it is possible to grind in a variety of contours
  • The applications range from grinding out slits and grooves in hard-to-reach areas to machining bores and small holes as well as smoothing

Advantages:

  • Long tool life and low tool wear due to hard, dimensionally stable bond.
  • Economical to use due to the high edge stability even on low-speed tool drives.
  • Particularly well suited to work on edges.
Key features according to our expert
  • Diameter: 25 mm
  • Grit size: 30
  • Shank size: 1/4 inch
  • Shape (grinding point): Rounded cone
  • Height: 70 mm
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220114636
  • Supplier number: PFERD 35003273
Diameter
25 mm
Grit size
30
Shank size
1/4 inch
Shape (grinding point)
Rounded cone
Height
70 mm
Width metric
70
ø outside metric
25
Max. rpm
18600
Processing tasks 5
Machining of surfaces
Processing tasks 1
Finish
Length, pin
40
Processing tasks 3
Grinding out joints
Processing tasks
Deburring
Workable materials 1
Steel
Processing tasks 4
Levelling
Processing tasks 7
Edge processing (chamfering, rounding)
ø shaft metric
6.35
Processing tasks 6
welding
Processing tasks 2
Grinding out
Workable materials
Cast steel
Form
A 3
Rpm, opt.
18600
