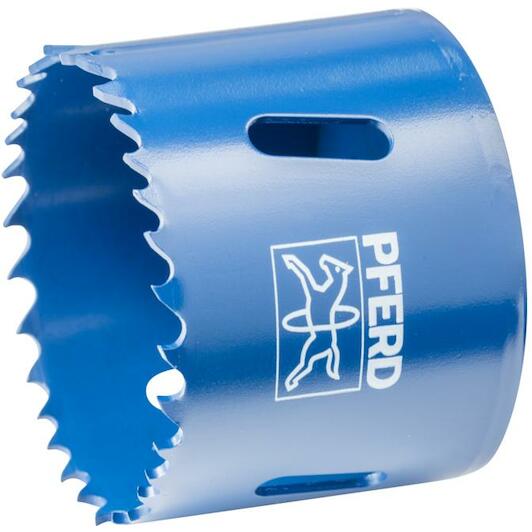

Clean cutouts with the Pferd LS 54 hole saw
- Fast cutting in tough metals: Premium HSS-BIM with M42 cobalt teeth helps you cut smoothly through steel, stainless steel, and wood.
- Smooth and chatter-free sawing: The variable tooth pitch prevents snagging and clears chips quickly so you work with complete control.
- Precise 54 mm circular holes: Achieve exact circular openings up to 31 mm deep across various sheet metals and timber.
Product description
- PFERD Bimetal hole saw Co8/M42 dia. 54 mm cutting depth 31 mm for steel, stainless steel, sheet metal, wood
Characteristics
- Hole saws are made from tough, shatter-proof, sturdy HSS bimetal
- The saw teeth are made from high-quality M42 (Co8) material
- They are used for cutting out holes
- The thread version 5/8-18 UNF includes the thread LS 32 to LS 210
- The matching hole saw arbor is LSS 2
Advantages:
- Cost-effective sawing of round cut-outs.
- Chattering during sawing is prevented by the alternating tooth pitch.
- High concentricity.
- Good chip removal.
- The hole saw is conveniently centred and guided via the replaceable HSS pilot drill.
- Hole saw arbor is supplied with an ejection spring for improved ejection of the sawn material.
Key features according to our expert
-
Diameter (hole saw): 54 mm; 2 1/8 inch
-
Overall length: 48 mm
-
Connection size: 1/2"
-
Max. cutting depth: 1 1/4 inch
-
Connection type: Internal thread
Specifications / All features
-
Brand:
PFERD
-
55010325
-
EAN:
4007220062470
-
Supplier number:
PFERD 25101654
- Diameter (hole saw)
- 54 mm; 2 1/8 inch
- Overall length
- 48 mm
- Connection size
- 1/2"
- Max. cutting depth
- 1 1/4 inch
- Connection type
- Internal thread
- Processing tasks
- Obtaining cut-outs
- Rpm of, soft non-ferrous metals
- 210
- Rpm of, steels up to 1,200 n/mm²
- 160
- Cutting depth, max.
- 31
- Rpm of, thermoplastics, fibre-reinforced plastics (grp/cfk)
- 260
- Rpm of, stainless and acid-resistant steels
- 80
- Workable materials
- Aluminium
