PFERD

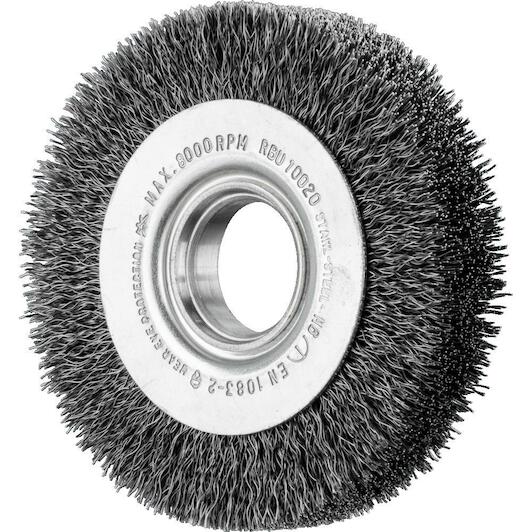

PFERD 10020/14,0 ST 0,30 POS round brush wide unturned RBU Ø 100 x 20 mm variable arbor hole steel wire-Ø 0.30 grinding head - 43701105

27.09 tax incl.
€22.39 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/07/2026
each

  • Delivery by DHL

Product description

  • PFERD POS wheel brush wide crimped RBU dia. 100x20xvariable hole steel wire dia. 0.30 bench grinder

Characteristics

  • Excellent for medium-duty hand-held or automated brushing of workpieces with large surfaces
  • Steel wire is the most common filament material
  • Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring
  • PFERD special wire has high tensile strength and bending fatigue strength
  • This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications
  • Steel wire withstands temperatures up to 300 °C
  • Developed for general use in the workshop

Advantages:

  • Can be used with all commercially available stationary drive systems and bench grinders thanks to the variable hole diameter.
  • Highly flexible, enabling optimal adjustment to the workpiece contour.
  • Long tool life through use of PFERD special wire.
  • Creates fine surfaces.
Key features according to our expert
  • Brush diameter: 100 mm
  • Material (brush filament): Steel wire
  • Wire thickness: 0,3 mm
  • Twisted: No
  • Thickness: 20 mm
  • Max. no-load speed: 8000 rpm
  • Connection type (machine): Bore
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220956236
  • Supplier number: PFERD 43701105
Brush diameter
100 mm
Material (brush filament)
Steel wire
Wire thickness
0,3 mm
Twisted
No
Thickness
20 mm
Max. no-load speed
8000 rpm
Connection type (machine)
Bore
Filling material
Steel wire (ST)
Processing tasks 3
Removing oxide layers
ø shaft hole included in set
12/14/18/22,2/25,4
ø shaft hole
14
Length, trim
25
Processing tasks 1
Deburring
ø outside metric
100
Processing tasks 5
Roughening
Max. rpm
8000
Grit size
unspecified
Workable materials 3
Elastomer
Workable materials 7
Thermoplastics
ø topping material
0.3
Rpm, opt., to
6000
Processing tasks
Cleaning
Width metric
20
Workable materials 1
Cast steel
Workable materials 6
Steel up to 1,200 N/mm² (< 38 HRC)
Workable materials
Cast iron
Workable materials 2
Duroplast
Workable materials 5
Steel grades with hardness > 54 HRC
Processing tasks 2
Derusting
Recording system
Shaft hole
ø shaft hole, max.
30
Processing tasks 4
Removal of lacquers
Workable materials 8
Wood
Workable materials 4
Steel, cast steel
Rpm, opt., of
4000
