Scope of delivery
- Strip nailer PSN98

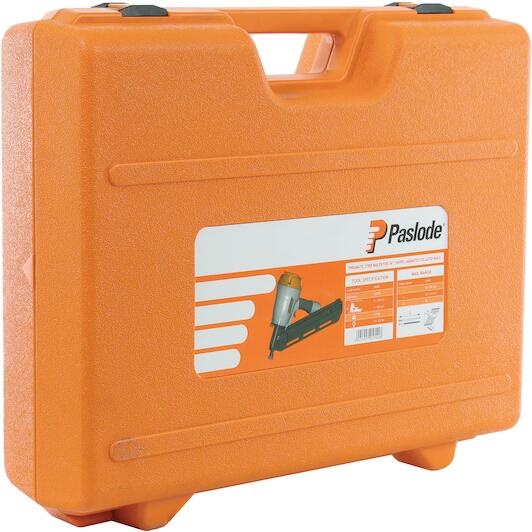

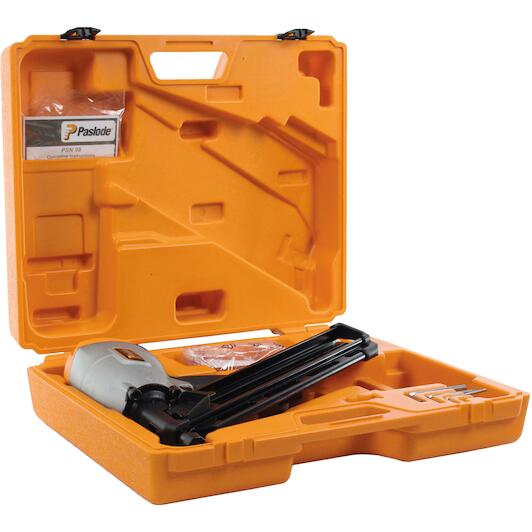

- Case
- Safety glasses according to EN166:F
- Allen spanner
- Lubricating oil
- Manual
- Part drawing
- Safety instructions
- CE declaration of conformity
Product description

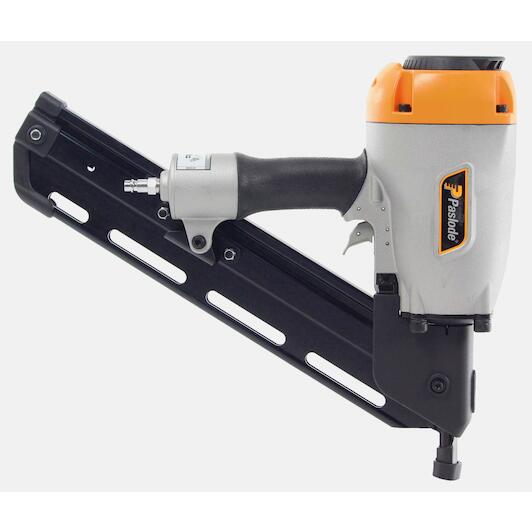

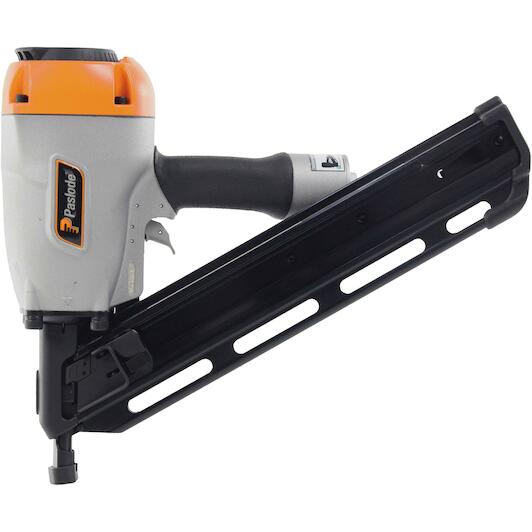

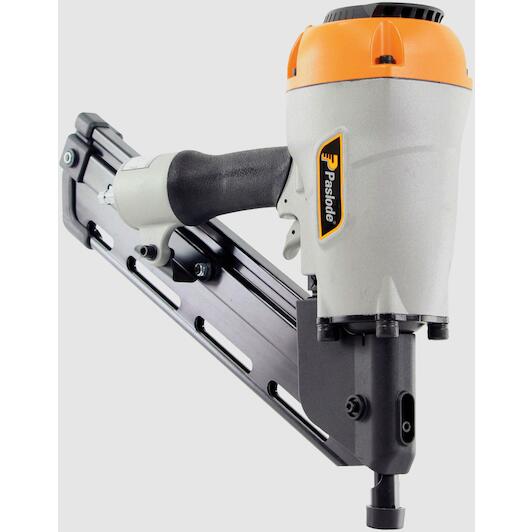

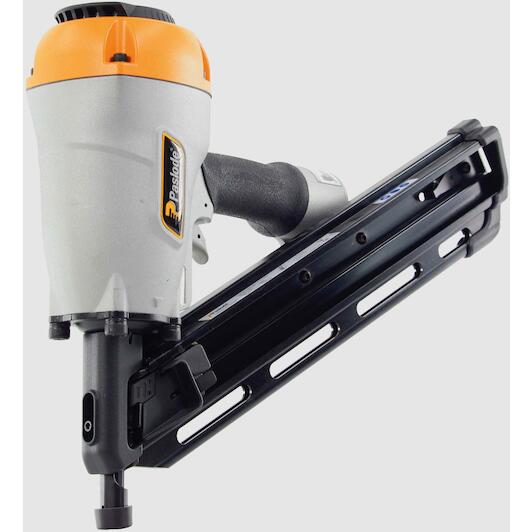

- Pneumatic nailer for 34° strip nails on paper from 50 to 100 mm
- Multifunctional pneumatic stripping nailer for construction and industry
- Lightweight
- Powerful nailer for fixing nails up to 100 mm
- Perfect balancing and comfortable rubber handle for daily use
- Reliable, fast and robust device with long service life
- Designed to drive in both D-head and round-head nails
- Contact control set available as an accessory
Applications
- Battens
- Truss mounting
- Framing
- Cladding
- Battens
- Roof cladding
- Flat roofing
- Ceiling slabs / suspended ceilings
- Floor slabs
- Wall panels
- Chipboard
- Shuttering
- Terraces
- Packaging
Key features according to our expert
-
Min. nail length: 50 mm
-
Max. nail length: 100 mm
-
Max. working pressure: 8,3 bar
Specifications / All features
-
Brand:
PASLODE
-
03181136
-
EAN:
4022907057006
-
Supplier number:
PASLODE 505700
- Min. nail length
- 50 mm
- Max. nail length
- 100 mm
- Max. working pressure
- 8,3 bar
- Last nail blocking
- Where
- Adjustable air outlet
- Where
- Easy removal
- False
- Number of degrees of nail connection
- 34 °
- Noise level (en 12549) lpa
- 90.0 dB(A)
- Type of connection
- 34° paper tape
- Nail length (mm)
- 50-100
- Sound level (en 12549) lwa
- 103 dB(A)
- Type of fastening
- Paslode strip nails
- Energy
- pneumatic
- Anchorage tax
- Rear loader
- Anchor diameter range
- 2.8 - 3.4 mm
- Power
- With the key
- Warehouse capacity
- 77 nail
- Minimum air pressure
- 4.9 bar
- Max. air pressure
- 8.3 bar
- Base material
- Wood
- Vibration (en iso 8662-11) hav
- 3.4 m/s²
- Air consumption per shot
- 2.9 l/shot at 6 bar
- Sound level (en 12549) lpc
- < 130 dB(C)
- Operation
- sequential only
- Health and safety
- Eye protection, Hearing protection
