Scope of delivery

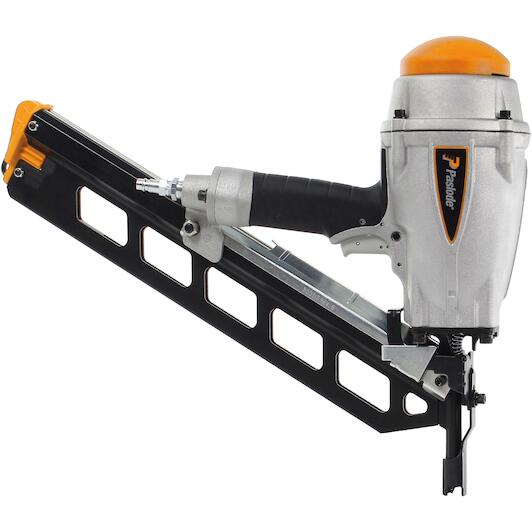

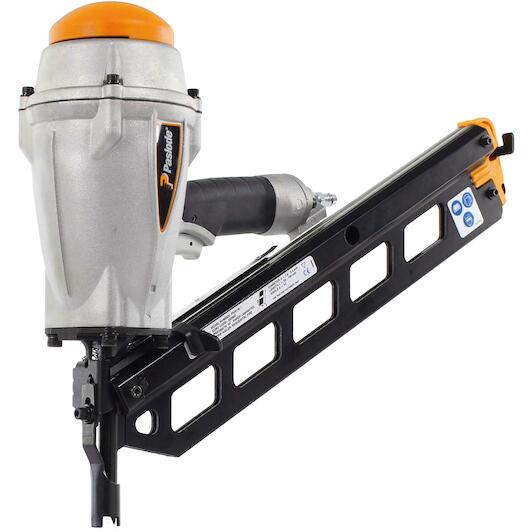

- Strip nailing machine PSN 100.1

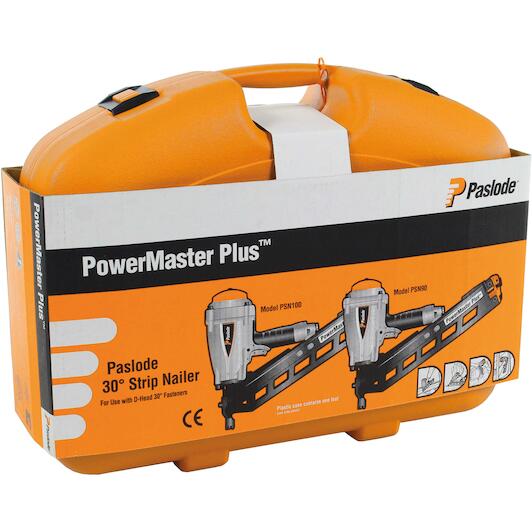

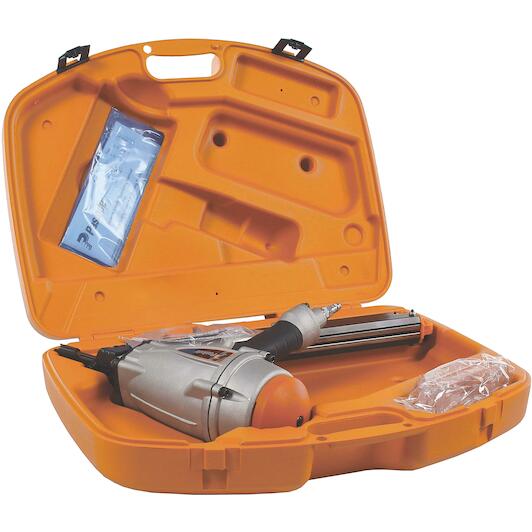

- Case
- Allen spanner
- Lubricating oil
- Manual
- Parts drawing
- Safety instructions
- CE declaration of conformity

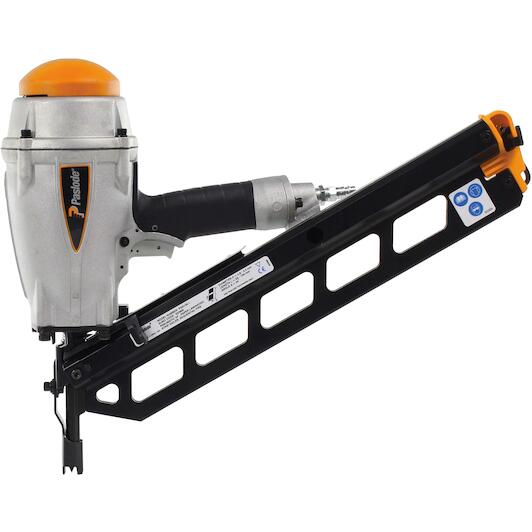

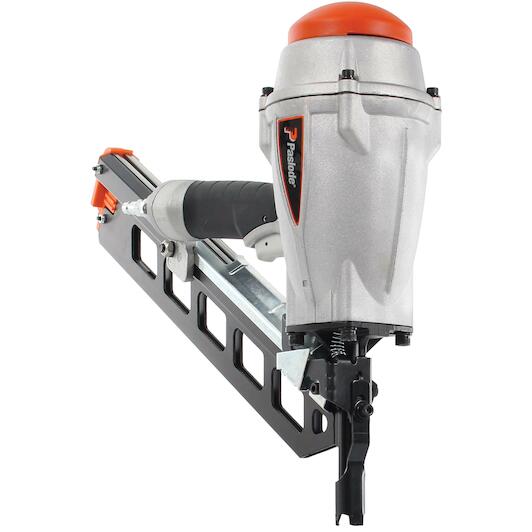

Product description
- Pneumatic nailer for 34° paper bond strip nails on paper from 50 to 100 mm
- Premium multi-functional pneumatic stripping nailer for construction and industry
- Reliable, fast and robust device with long service life
- Powerful nailing machine for processing of paper-bonded nails up to 100 mm
- Perfect balancing and comfortable rubber handle for daily use
- Designed for processing both D-head and full-head nails
- Low-noise device
- Can be mounted in automatic production lines
- Available as single-shot or repeating

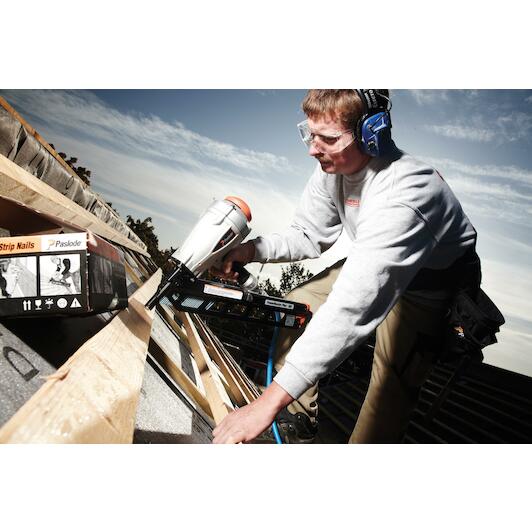

Applications
- Battens

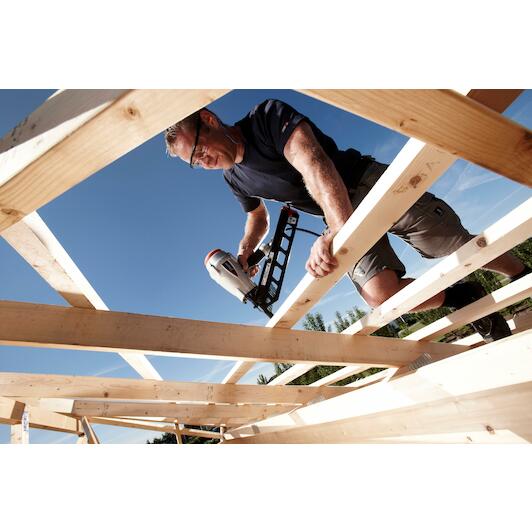

- Truss mounting
- Framing

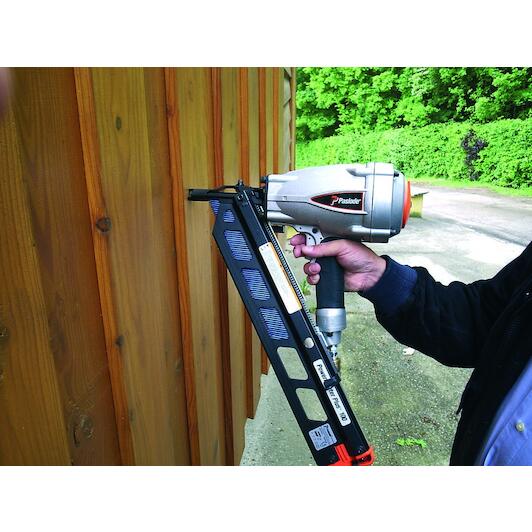

- Cladding
- Battens

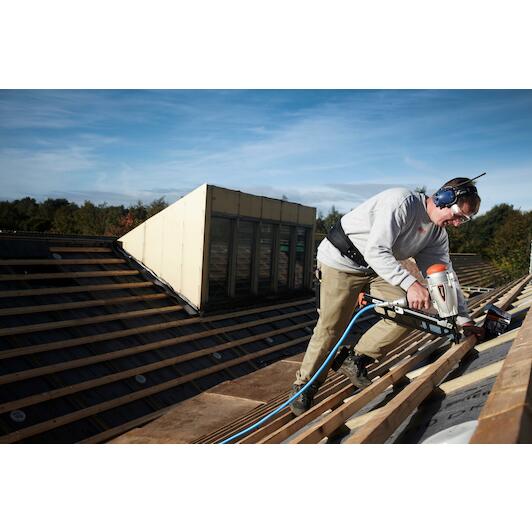

- Roof cladding
- Flat roofing

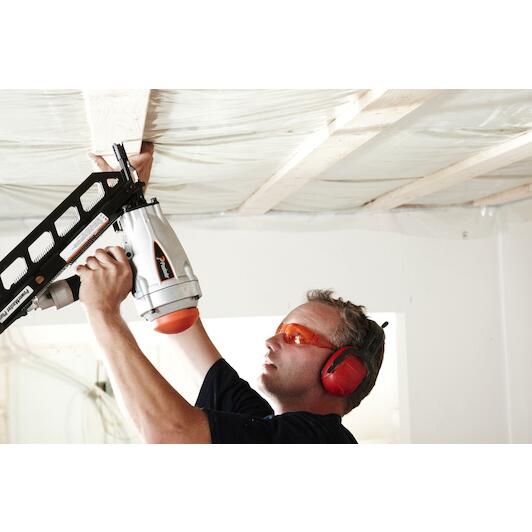

- Ceiling slabs / suspended ceilings
- Floor slabs
- Wall panels
- Chipboard
- Shuttering
- Terraces
- Packaging
Key features according to our expert
-
Min. nail length: 50 mm
-
Max. nail length: 100 mm
-
Max. working pressure: 8 bar
Specifications / All features
-
Brand:
PASLODE
-
02504279
-
EAN:
8427155029052
-
Supplier number:
PASLODE 502900
- Min. nail length
- 50 mm
- Max. nail length
- 100 mm
- Max. working pressure
- 8 bar
- Last nail blocking
- Where
- Adjustable air outlet
- Where
- Easy removal
- False
- Number of degrees of nail connection
- 34 °
- Noise level (en 12549) lpa
- 85.1 dB(A)
- Type of connection
- 34° paper tape
- Nail length (mm)
- 51-100
- Sound level (en 12549) lwa
- 98.1 dB(A)
- Type of fastening
- Paslode strip nails
- Energy
- pneumatic
- Anchorage tax
- Top loader
- Anchor diameter range
- 2.8 - 3.4 mm
- Power
- With the key
- Warehouse capacity
- 90 nail
- Minimum air pressure
- 5.0 bar
- Max. air pressure
- 8.0 bar
- Base material
- Wood
- Vibration (en iso 8662-11) hav
- 3.5 m/s²
- Air consumption per shot
- 2.7 l/shot at 8 bar
- Sound level (en 12549) lpc
- < 130 dB(C)
- Operation
- fully sequential
- Health and safety
- Eye protection, Hearing protection
