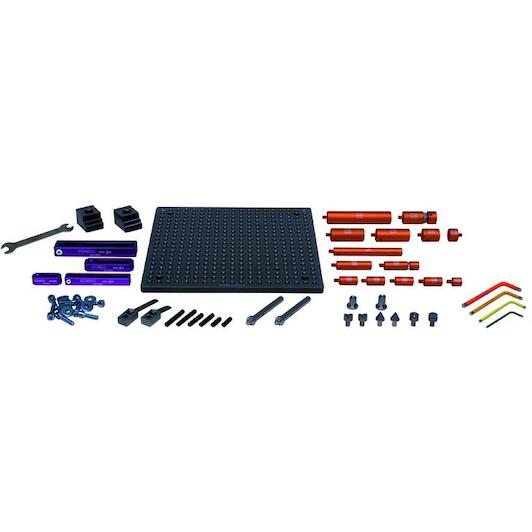

MITUTOYO K551048 Eco-Fix clamping system kit S 60-piece

Scope of delivery

• 1x K551034 - Bottom plate 250 mm x 250 mm
• 2x K551032 - Clamping claw
• 1x K551024 - Location pin Ø 12 mm x 13 mm
• 1x K551025 - Location pin Ø 12 mm x 25 mm
• 1x K551026 - Location pin Ø 12 mm x 50 mm
• 1x K551027 - Location pin Ø 12 mm x 100 mm
• 1x K551028 - Location pin Ø 20 mm x 13 mm
• 1x K551029 - Location pin Ø 20 mm x 25 mm
• 1x K551030 - Location pin Ø 20 mm x 50 mm
• 1x K551031 - Location pin Ø 20 mm x 100 mm
• 1x K551040 - Adjustable location pin Ø 20 mm
• 1x K551041 - Adjustable location pin Ø 12 mm
• 3x K551042 - Location pin Ø 12 mm with bore 6 mm
• 1x K551035 - Collecting bracket small
• 1x K551036 - Locating bracket large
• 1x K551044 - Locating pin L = 90 mm, Ø 12 mm
• 1x K551045 - Support bar L = 120 mm, Ø 20 mm
• 1x K551046 - Slotted nut for catch bracket h = 12 mm
• 1x K551047 - Slotted nut for catch bracket h = 15 mm
• 2x K550262 - V-block mini, Ø 12 mm
• 2x K550261 - Cone receiver mini, Ø12 mm
• 1x K550250 - Stop element mini, Ø 6 mm
• 1x K550247 - Back square mini, Ø 6 mm
• 2x K550888 - Straight pin Ø 6 mm x 20 mm
• 2x K550889 - Straight pin Ø 6 mm x 30 mm
• 2x K550890 - Straight pin Ø 6 mm x 40 mm
• 2x K550716 - Straight pin with thread, M6 x 75 mm
• < li>1x K550279 - Spring clamp, Ø 8 mm, L = 60 mm
• 1x K550554 - Spring clamp, Ø 8 mm, L = 40 mm
• 2x K550563 - Cylinder head screw M6 x 25 mm
• 6x K550110 - Machine head screw M6 x 20 mm
• 8x K550591 - Washer Ø 6.4 mm x Ø 17 mm
• 1x K551050 - Allen key 2 mm
• 1x K551051 - Allen key 3 mm
• 1x K551052 - Allen key 4 mm
• 1x K551053 - Allen key 5 mm
• 1x K551054 - Double open end spanner 10-17
