mitutoyo_7224a
MITUTOYO

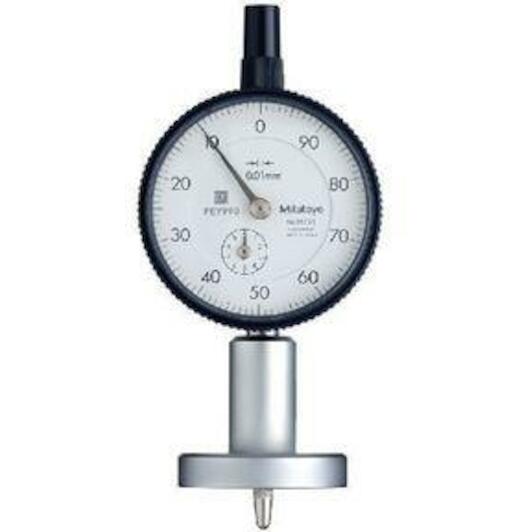

MITUTOYO 7224A dial gauge for depth measurement 0-10 mm with ball-shaped probe and round base

205.11 tax incl.
€169.51 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Delivery by DHL

Product description

  • Model with round ground plane.
  • Has a hardened, precision ground and lapped reference surface on the ground plane.

Main features

  • Range: 0 - 10 mm
  • Accuracy: 15 µm
  • Stroke: 10 mm
  • Bridge flatness: 5 µm
  • Probe tip: Ball, R = 1.5 mm (No. 21JAA224)
  • Scale division: 0.01 mm
  • Weight: 195 g
  • Digital/Analogue: Analogue
  • Inch-Metric: Metric
Key features according to our expert
  • Measuring range: 0-10 mm
  • Scale: 0,01 mm
Specifications / All features
  • Brand: MITUTOYO
  • EAN: 4946368851891
  • Supplier number: MITUTOYO 7224A
Measuring range
0-10 mm
Scale
0,01 mm
