What is the measuring range and graduation of this dial test indicator?

The Mitutoyo 513-445-10E features a 0.4 mm measuring range with a 0.002 mm graduation.

What is the benefit of the 20° tilted face?

The 20° tilt allows for easy viewing of the dial when measuring in narrow or recessed workpiece areas.

What dial scale layout does this indicator have?

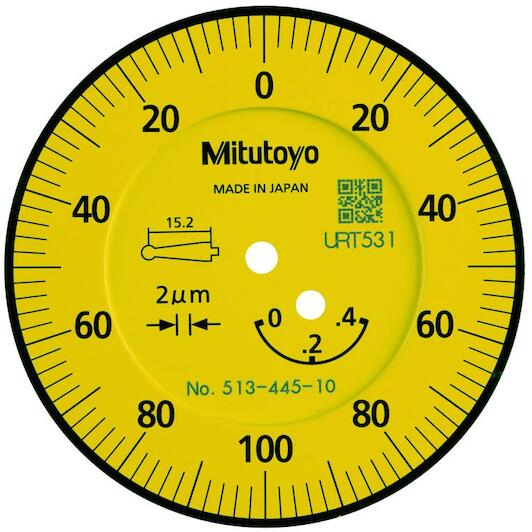

It features a balanced 0-100-0 dial face for bi-directional deviation checks.

What mounting stem size is included?

It comes supplied with an Ø 8 mm stem for standard indicator holders and stands.

What type of stylus tip is fitted?

It includes a carbide contact point with an Ø 2 mm ball tip.

MITUTOYO 513-445-10E swivelling probe horizontal 20° tilted - 0.4mm, 0.002mm

Name: MITUTOYO 513-445-10E swivelling probe horizontal 20° tilted - 0.4mm, 0.002mm
Brand: MITUTOYO
SKU: 02804350
Price: 198.2 EUR
Availability: PreOrder

Supplier number: MITUTOYO 513-445-10E | EAN 4946368676258

198.20 tax incl.

€163.80 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

Delivery by DHL

✆ Talk to a specialist

High precision testing with Mitutoyo

Practical benefits

Clear glare free viewing: The 20° tilted face and flat antireflective crystal allow you to read measurements clearly from any angle.
Extremely fine resolution: With a 0.002mm graduation, you accurately verify tight tolerances and recessed areas that standard indicators cannot reach.
Sealed against contaminants: An integrated O-ring prevents dust and cutting fluid from entering, ensuring smooth bezel rotation over time.

In a nutshell

The right choise for

With the Mitutoyo 513-445-10E dial test indicator, you align and center workpieces on milling machines and lathes with extreme precision. The 20° tilted face and glare-free crystal ensure direct, parallax-free viewing, even in narrow or recessed setups. Featuring a 0.4 mm measuring range and a fine 0.002 mm graduation, it easily detects minute runout, flatness, and parallelism deviations. Its ø 2 mm carbide ball tip and integrated O-ring seal protect the smooth mechanism against dust and cutting fluid. Mount the instrument quickly using the supplied ø 8 mm stem and take full control of your machining accuracy.

Product information FAQ

€198.20

tax incl.

Product description:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.

Brand MITUTOYO
02804350
EAN 4946368676258
Supplier number MITUTOYO 513-445-10E

Frequently asked questions about this product

Answered by specialists

What is the measuring range and graduation of this dial test indicator?: The Mitutoyo 513-445-10E features a 0.4 mm measuring range with a 0.002 mm graduation.
What is the benefit of the 20° tilted face?: The 20° tilt allows for easy viewing of the dial when measuring in narrow or recessed workpiece areas.
What dial scale layout does this indicator have?: It features a balanced 0-100-0 dial face for bi-directional deviation checks.
What mounting stem size is included?: It comes supplied with an Ø 8 mm stem for standard indicator holders and stands.
What type of stylus tip is fitted?: It includes a carbide contact point with an Ø 2 mm ball tip.
