Product description:
- These optional interchangeable measuring pins enable precision measurement of flank diameters.
Supplier number:
MITUTOYO 124-805
|
EAN
4946368014012
144.95
tax incl.
€119.79 excl. VAT (incl. all environmental contributions)
Reliable gear measurements with Mitutoyo
Practical benefits- Accurate over-pin gear inspection: This 2.0 mm ball anvil set lets you measure the over-pin diameter of gears with 1.25 module accurately.
- Durable carbide contact tips: Precision carbide ball faces resist wear, providing you with consistent dimensional repeatability on every inspection.
- Seamless micrometer tip replacement: You can easily fit these interchangeable anvils into compatible micrometers for efficient and steady workpiece verification.
In a nutshell

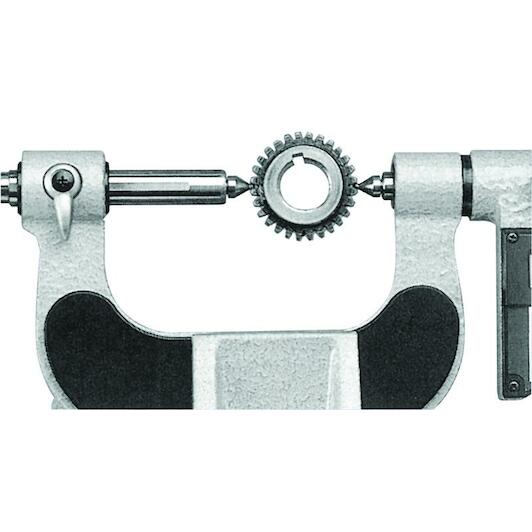

The right choise forWith the Mitutoyo 124-805 ball anvil and spindle tip set, you carry out highly accurate inspections on module 1.25 gears. Designed for Mitutoyo Series 124 and Series 324 gear tooth micrometers, this two-piece set features 2.0 mm diameter contact tips for dependable over-pin measurements. The wear-resistant carbide ball faces maintain strict dimensional accuracy across demanding measuring tasks. This allows you to verify tooth thickness tolerances on gears and splines quickly and reliably without complex custom fixtures.
Product information
Key features according to our expert
- Accessory/Part type: Ball tip set for micrometer
All Features
- Accessory/part type
- Ball tip set for micrometer
- Brand MITUTOYO
- EAN 4946368014012
- Supplier number MITUTOYO 124-805
Frequently asked questions about this product
Answered by specialists
- What is this ball anvil and spindle tip set used for?
- It is used to measure the over-pin diameter of gears using a gear tooth micrometer.
- Which micrometers are compatible with these ball tips?
- They are compatible with Mitutoyo Series 124 and Series 324 gear tooth micrometers.
- Which gear module is this tip set designed for?
- These tips are designed for gears with module 1.25 (diametral pitch 22).
- What is the diameter of the ball tip?
- The ball diameter is exactly 2.0 mm.
- How many tips are included in the package?
- The set includes 2 pieces (one pair for the anvil and spindle).
