MILWAUKEE M12 FPDXKIT-202X FUEL subcompact cordless impact drill with interchangeable head in HD Box (2x 2.0Ah battery + charger) - 4933464138

Supplier number: MILWAUKEE 4933464138 | EAN 4058546220839
Recommended Retail Price €482.03
379.71 tax incl.
€313.81 excl. VAT (incl. all environmental contributions)
On order: delivered from 24/11/2026

Extreme versatility in tight spaces

Practical benefits

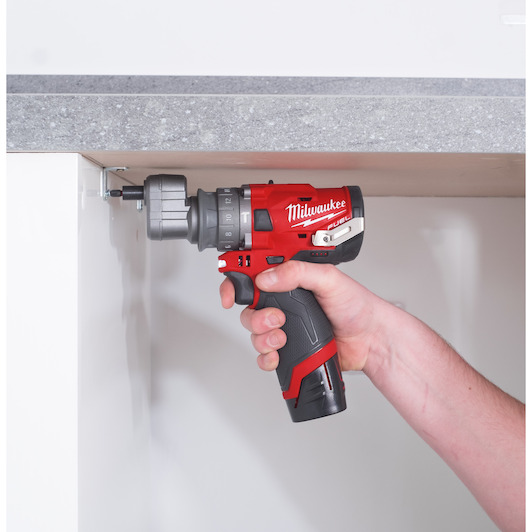

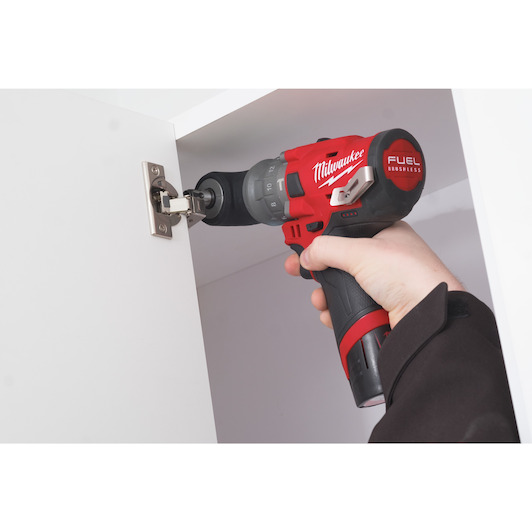

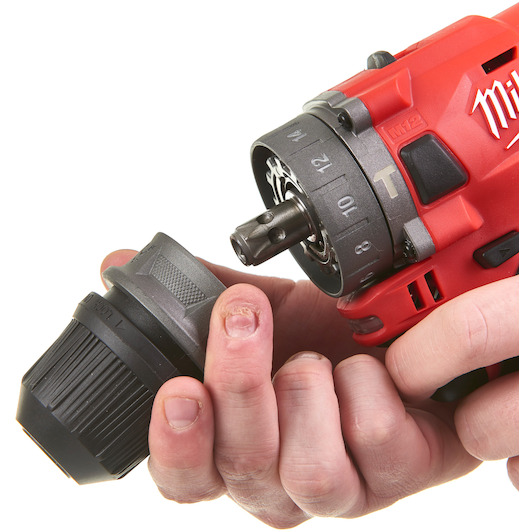

  • Quick interchangeable chuck system: You can swap smoothly between the 13 mm chuck, right-angle head, and offset attachment for tricky corners.
  • High-torque Milwaukee brushless motor: The powerstate motor generates 44 Nm of torque, easily drilling up to 35 mm in wood and 13 mm in masonry.
  • Compact body with percussion: Removing the chuck reduces overall length to 138 mm, giving you powerful hammer drilling performance inside restricted working areas.
Recommended Combinations
With Milwaukee M12 3 Ah Battery
With Milwaukee M12 4 Ah Battery


€379.71
tax incl.

Product information

Key features according to our expert

  • Battery voltage: 12 V
  • Max. drilling diameter (steel): 13 mm
  • Chuck material: Plastic
  • UN number: UN3481
  • Weight: 1 kg
  • Type of system case: HD Box
  • Supplied in: System case
  • Max. drilling diameter (wood): 35 mm
  • Max. drilling diameter (masonry): 13 mm

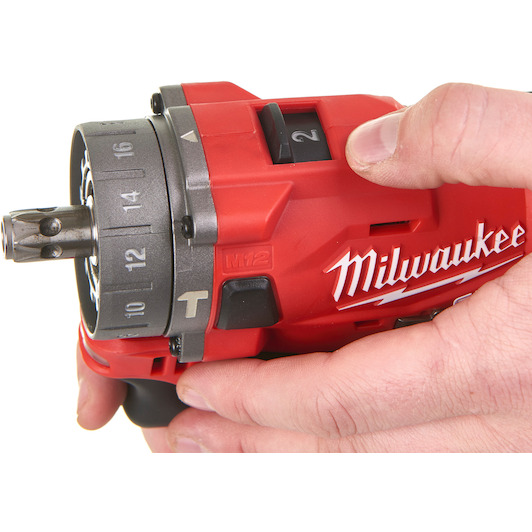

  • Number of settings (torque): 16 (+drill mode)
  • Max. tightening torque: 44 Nm
  • Max. clamping capacity: 13 mm
  • Capacity (battery): 2 Ah
  • Number of batteries supplied: 2
  • Product Range: Milwaukee M12

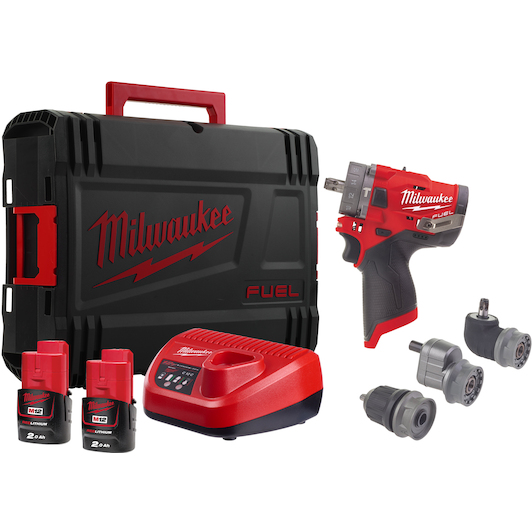

Supplied as standard

  • 2 x M12 B2 Battery packs
  • C12 C Charger
  • Supplied in: HD Box

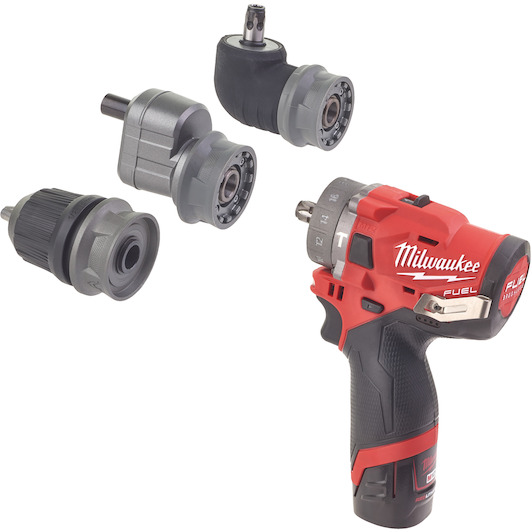

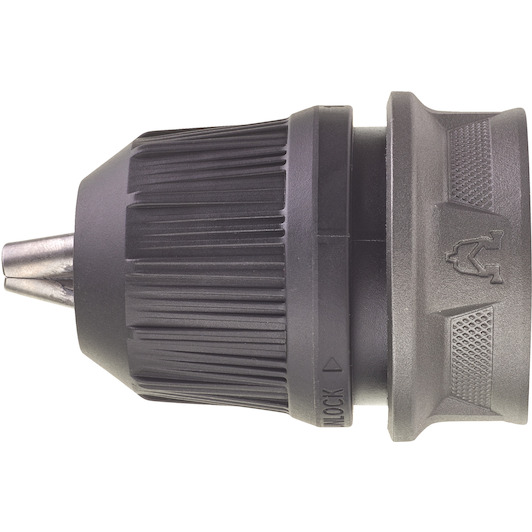

  • Removable chuck

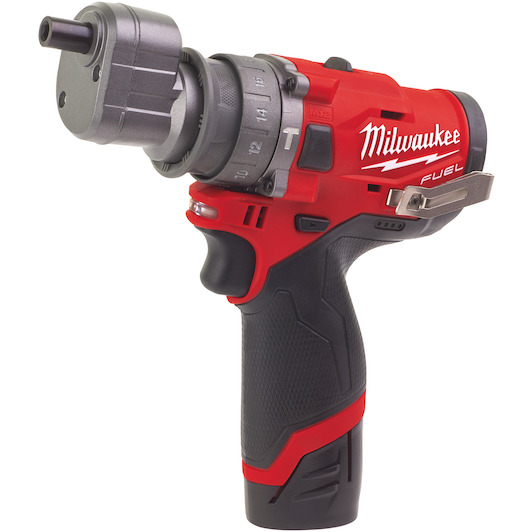

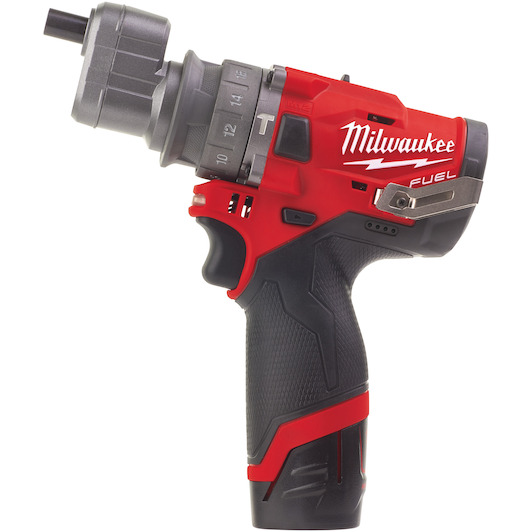

  • Offset attachment

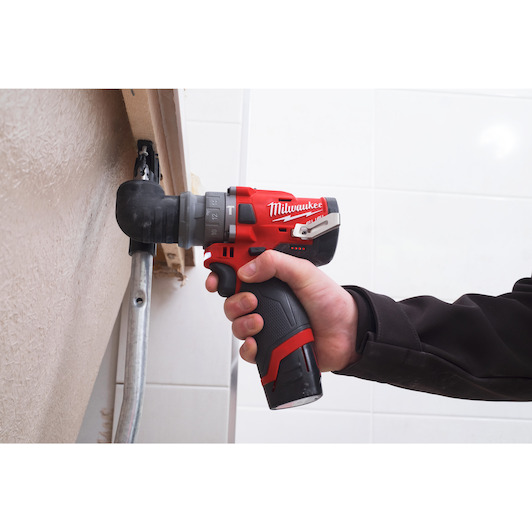

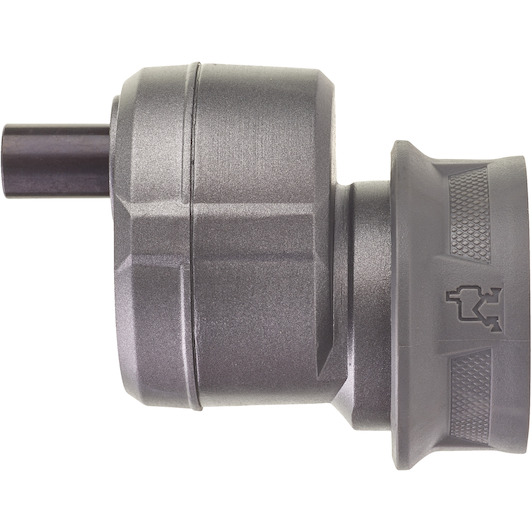

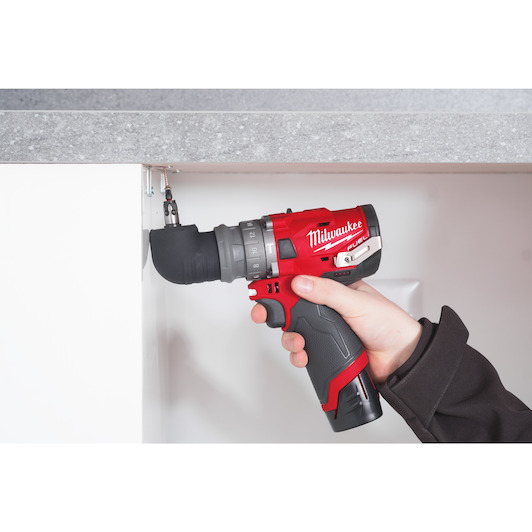

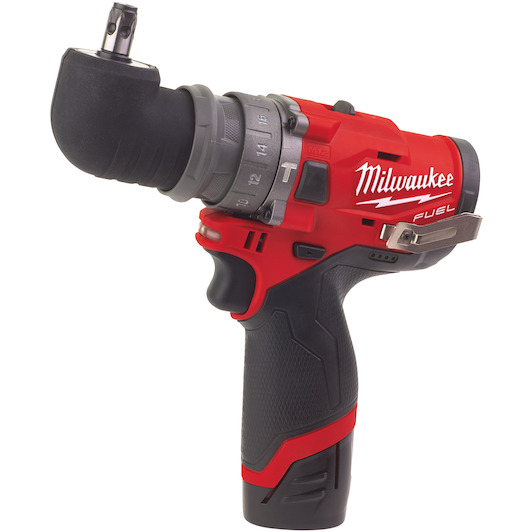

  • Right angle attachment

Product description

  • High performance compact 6-in-1 percussion drill system for extreme versatility

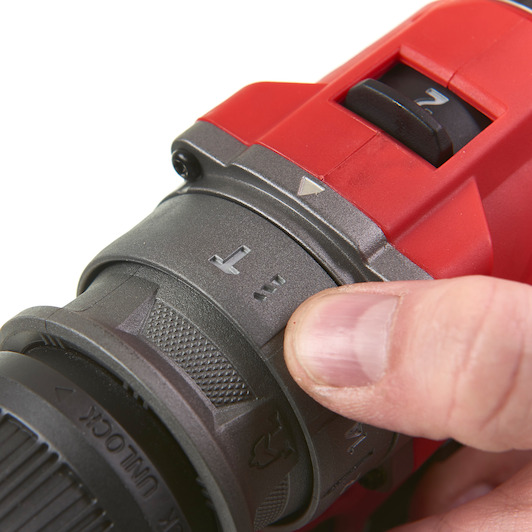

  • Removable chuck system with 3 different heads for multiples of applications
  • Brushless POWERSTATE motor delivers up to 44 Nm of torque
  • REDLINK PLUS intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load
  • REDLITHIUM battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life

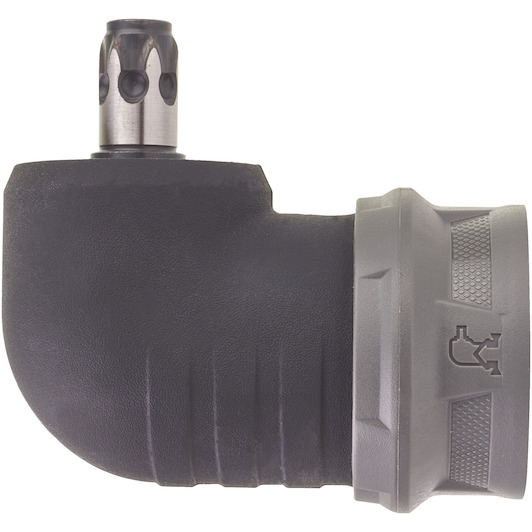

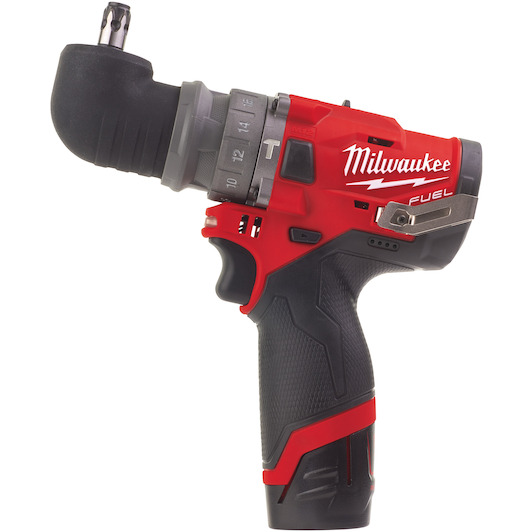

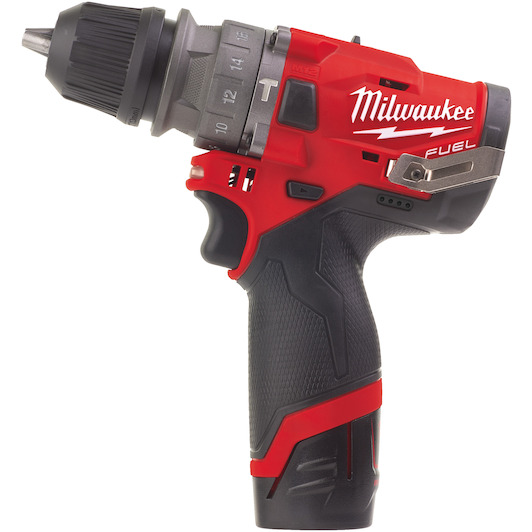

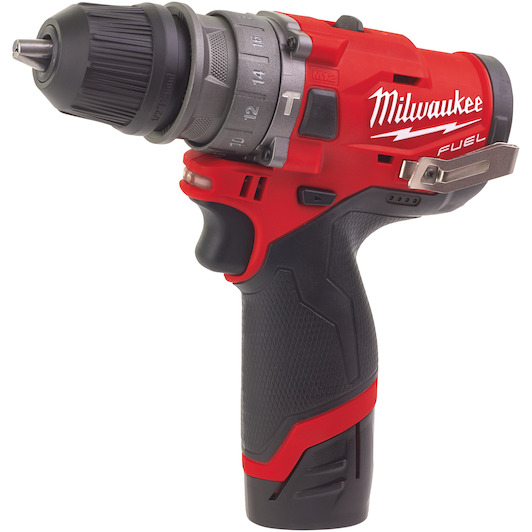

  • 13 mm keyless chuck, full metal right angle 1/4" hex drive head and full metal offset 1/4" hex drive head

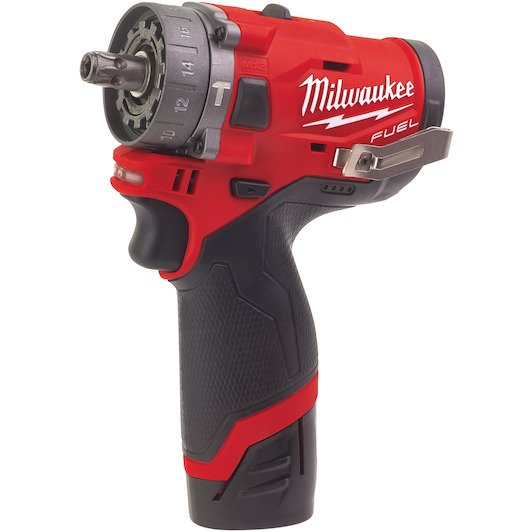

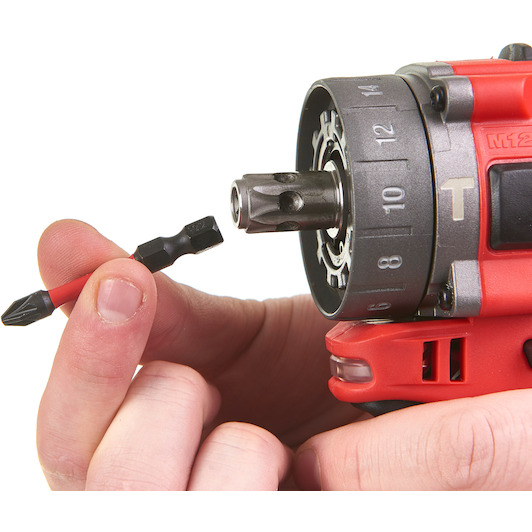

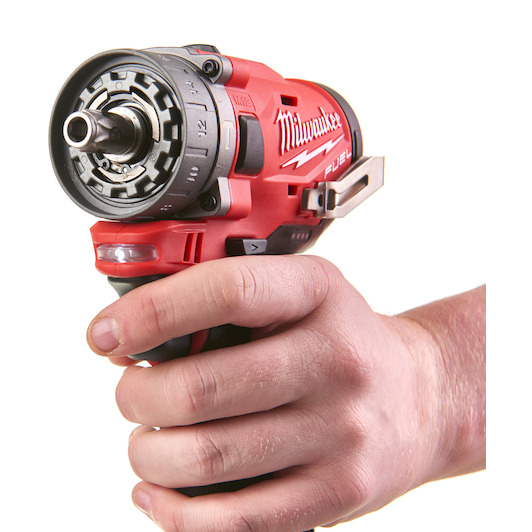

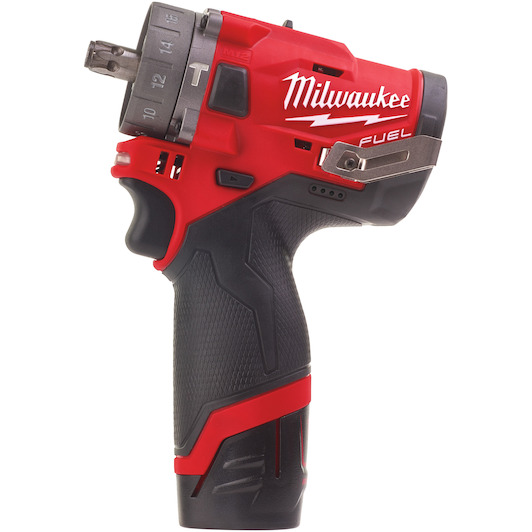

  • 1/4" hex drive behind chuck fitting, reduces drill length to 138 mm when required
  • Full metal planetary gearbox transmission for extreme durability
  • LED light for workspace illumination
  • Flexible battery system: works with all MILWAUKEE M12 batteries

All Features

Battery voltage
12 V
Max. drilling diameter (steel)
13 mm
Chuck material
Plastic
Un number
UN3481
Weight
1 kg
Type of system case
HD Box
Supplied in
System case
Max. drilling diameter (wood)
35 mm
Max. drilling diameter (masonry)
13 mm
Number of settings (torque)
16 (+drill mode)
Max. tightening torque
44 Nm
Max. clamping capacity
13 mm
Capacity (battery)
2 Ah
Number of batteries supplied
2
Sound power level, deviation (db(a))
3
Wood screws up to (mm)
8
Screw vibration level (m/s²)
0.86
Max chuck capacity (mm)
13
Sound power level (lwa(db(a))
100
Product range
Milwaukee M12
Vibration level screws, deviation (m/s²)
1.5
Vibration level drilling in metal, deviation (m/s²)
1.5
Sound pressure level, deviation (db(a))
3
Vibration level drilling into concrete with hammer function, deviation (m/s²)
1.5
Vibration level drilling into concrete with hammer function (m/s²)
15.73
Voltage (v)
12
Battery type
Li-ion
Max. torque (nm)
37
Speed level 1 (rpm)
0 - 450
Max. drill ø in stone (mm)
13
Speed settings
2
Max. drill ø in wood (mm)
35
Vibration level drilling in metal (m/s²)
1.92
Max. drill ø in steel (mm)
13
Max. stroke frequency (per min)
0 - 25,500

Accessories

View more accessories (343)

Frequently asked questions about this product

Answered by specialists
Which attachments come with this kit?
You get a removable 13 mm keyless chuck, a right-angle attachment, and an offset head for tight corners and flush edges.
What batteries and charger are included?
The kit comes with two 12V 2.0 Ah M12 B2 batteries, a C12 C charger, and an hd Box carry case.
Can this drill handle masonry?
Yes, the percussion mechanism drills up to 13 mm into masonry. Capacity reaches 13 mm in steel and 35 mm in wood.
What is the maximum torque output?
It delivers up to 44 Nm of tightening torque across 16 clutch settings plus a dedicated drill mode.
Is this drill compatible with all Milwaukee batteries?
The tool accepts every Milwaukee M12 battery pack. Packs from the 18V M18 series are not compatible.
