Which chuck attachments are included with this kit?

It includes a removable 10 mm FIXTEC keyless chuck, an offset attachment, and a right-angle attachment.

What is the maximum drilling capacity of this tool?

It drills up to 25 mm in wood and up to 10 mm in steel.

Can you use screwdriver bits directly without an attachment?

Yes, the spindle has a built-in 1/4" hex drive behind the fitting, giving a compact length of 153 mm.

Which batteries are compatible with this drill driver?

The tool is compatible with all 12V batteries from the Milwaukee M12 platform.

What is the maximum torque output of this machine?

It delivers a maximum torque of 32 Nm across 18 clutch settings plus drill mode.

MILWAUKEE M12 BDDXKIT-202C subcompact cordless drill in case (2x 2.0Ah battery + charger) - 4933447836

Name: MILWAUKEE M12 BDDXKIT-202C subcompact cordless drill in case (2x 2.0Ah battery + charger) - 4933447836
Brand: MILWAUKEE
SKU: 08123280
Price: 297.71 EUR
Availability: PreOrder

Supplier number: MILWAUKEE 4933447836 | EAN 4002395006595

Recommended Retail Price €373.13

297.71 tax incl.

€246.04 excl. VAT (incl. all environmental contributions)

On order: delivered from 17/10/2026

Delivery by DHL
Up to 5 years Milwaukee warranty after successful registration!

✆ Talk to a specialist

How does it work?

Buy Milwaukee products with a total order value of at least €250 excl. VAT.
For a total order value of €250 excl. VAT up to but excluding €500 excl. VAT, you receive a FREE Milwaukee 12-piece Tri-Lobe screwdriver set (4932472003) worth €55.90.
For a total order value of €500 excl. VAT up to but excluding €750 excl. VAT, you receive a FREE Milwaukee M18 125 mm Random Orbital Sander cordless random orbital sander (4933464228) worth €168.90.
For a total order value of €750 excl. VAT or more, you receive a FREE Milwaukee M18 FUEL 125 mm cordless angle grinder with slide switch and brake (4933498062) worth €357.90.
The free item is automatically added to your order. No registration is required.
This promotion cannot be combined with the ongoing Milwaukee Cashback Promotion on Milwaukee hand tools. An invoice for which you receive a free Buy More, Get More gift therefore cannot also be submitted for the Milwaukee hand tools cashback promotion.
The promotion is valid from 01.10.2026 to 31.10.2026.
Milwaukee Buy More, Get More deals are recognisable by the promotion label on the product page. Click the label to view all available deals.

Exceptional versatility in tight spots

Practical benefits

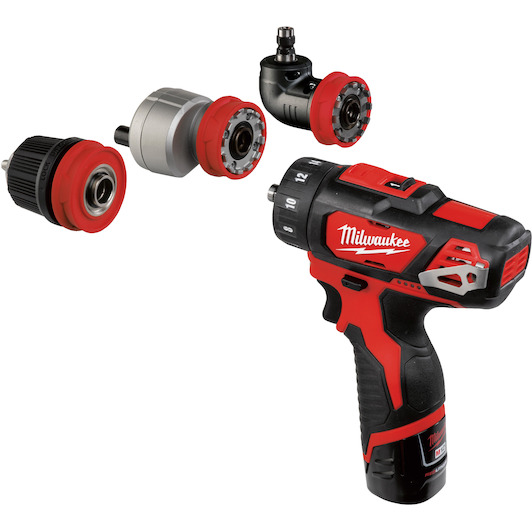

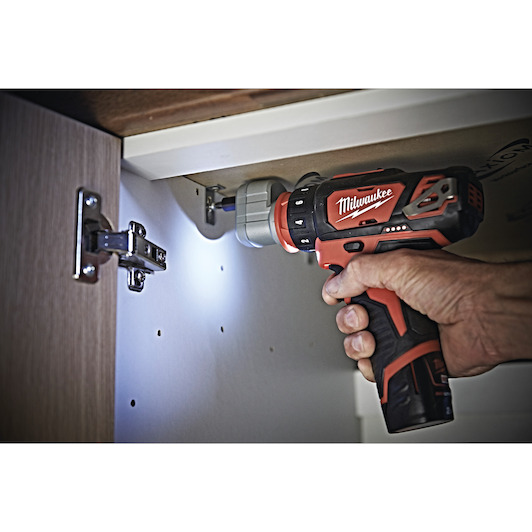

Milwaukee FIXTEC quick-change system: You effortlessly switch between the standard chuck, offset head, and right-angle attachment to reach difficult corners and edges.

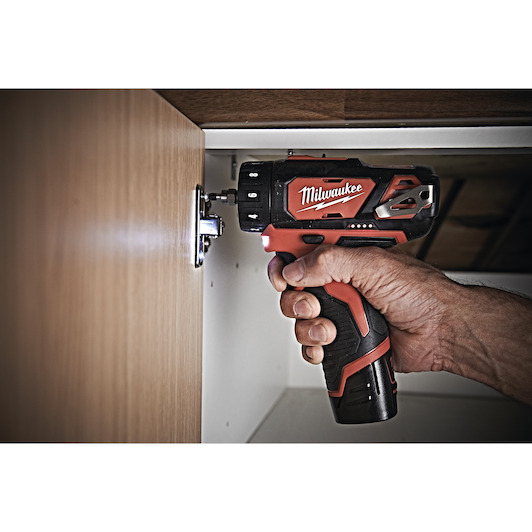

Ultra compact body length: Removing the chuck reduces the tool length to 153 mm using the 1/4" hex drive, allowing you to work inside tight spaces.
Controlled power and torque: Delivering 32 Nm of torque across 18 clutch settings, you achieve clean results in both wood and metal.

In a nutshell

The right choise for

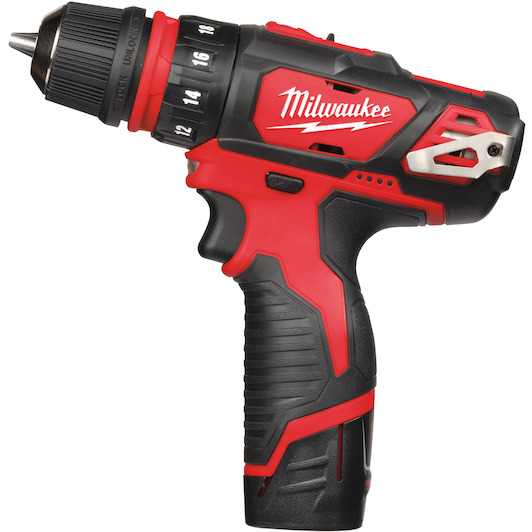

With the Milwaukee M12 BDDXKIT-202C, you can easily drill and drive in confined spaces and right up against edges. Thanks to the removable fixtec chuck system, you quickly switch between the standard 10 mm keyless chuck, the offset attachment, and the right-angle head. Removing the chuck reveals the direct 1/4" hex drive, shortening the tool to just 153 mm for easy access inside cabinets. Delivering 32 Nm of torque across 18 clutch settings, it drills up to 25 mm in wood and 10 mm in steel. Its lightweight 1 kg build ensures comfortable overhead use. This complete set comes in a carry case with two 12V 2.0Ah M12 B2 batteries, a C12 C charger, belt clip, and PZ2 bit.

Recommended Combinations

With Milwaukee M12 3 Ah Battery

With Milwaukee M12 4 Ah Battery

MILWAUKEE M12 BDDXKIT-202C... x 1

297.71

MILWAUKEE M12 B3 Li-ion... x 1

89.00

Original Price (tax incl.): 386.71

You Save: -4.45

Bundle Price (tax incl.): 382.26

Product information FAQ

€297.71

tax incl.

Key features according to our expert

Battery voltage: 12 V
Number of settings (torque): 18 (+drill mode)
Chuck material: Plastic
UN number: UN3481
Weight: 1 kg
Type of system case: Not applicable
Number of batteries included: 2
Supplied in: Case
Max. tightening torque: 32 Nm
Max. drilling diameter (steel): 10 mm
Max. drilling diameter (wood): 25 mm
Max. clamping capacity: 10 mm
Min. clamping capacity: 1,5 mm
Capacity (battery): 2 Ah
Product Range: Milwaukee M12

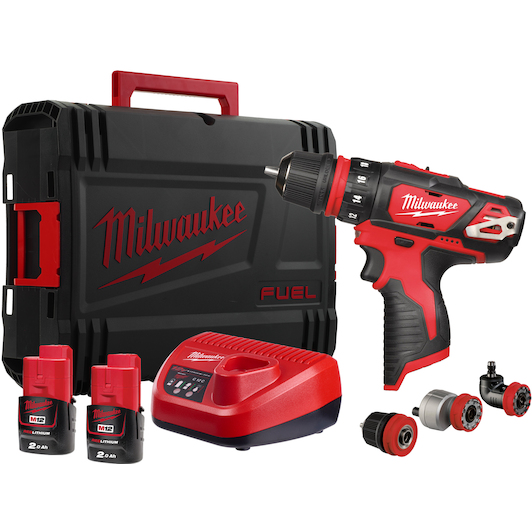

Supplied as standard

2 x M12 B2 Battery packs
C12 C Charger
Supplied in: Kitbox
Removable FIXTEC chuck
Offset attachment
Right angle drill attachment
Belt clip
25 mm PZ2 bit

Product description

High performance sub compact 5-in-1 drill driver system for extreme versatility
Removable chuck system with 3 different heads for multiples of applications
Standard 10 mm keyless chuck, full metal right angle 1/4" hex drive head and full metal offset 1/4" hex drive head
1/4" hex drive behind chuck fitting, reduces drill length to 153 mm when required
REDLINK overload protection electronics in tool and battery pack deliver best in class system durability
Full metal planetary gearbox transmission for extreme durability
LED light for workspace illumination
Flexible battery system: works with all MILWAUKEE M12 batteries

All Features

Battery voltage: 12 V
Number of settings (torque): 18 (+drill mode)
Chuck material: Plastic
Un number: UN3481
Weight: 1 kg
Type of system case: Not applicable
Number of batteries included: 2
Supplied in: Case
Max. tightening torque: 32 Nm
Max. drilling diameter (steel): 10 mm
Max. drilling diameter (wood): 25 mm
Max. clamping capacity: 10 mm
Min. clamping capacity: 1,5 mm
Capacity (battery): 2 Ah
Battery type: Li-ion
Wood screws up to (mm): 6
Screw vibration level (m/s²): 0.4
Max chuck capacity (mm): 10
Product range: Milwaukee M12
Sound power level (lwa(db(a)): 96
Sound power level, deviation (db(a)): 3
Vibration level screws, deviation (m/s²): 1.5
Vibration level drilling in metal, deviation (m/s²): 1.5
Sound pressure level, deviation (db(a)): 3
Speed level 1 (rpm): 0 - 400
Voltage (v): 12
Max. drill ø in wood (mm): 25
Vibration level drilling in metal (m/s²): 1.5
Number of batteries supplied: 2
Max. torque (nm): 32
Max. drill ø in steel (mm): 10

Brand MILWAUKEE
08123280
EAN 4002395006595
Supplier number MILWAUKEE 4933447836
Warranty Up to 5 years Milwaukee warranty after successful registration!

Frequently asked questions about this product

Answered by specialists

Which chuck attachments are included with this kit?: It includes a removable 10 mm FIXTEC keyless chuck, an offset attachment, and a right-angle attachment.
What is the maximum drilling capacity of this tool?: It drills up to 25 mm in wood and up to 10 mm in steel.
Can you use screwdriver bits directly without an attachment?: Yes, the spindle has a built-in 1/4" hex drive behind the fitting, giving a compact length of 153 mm.
Which batteries are compatible with this drill driver?: The tool is compatible with all 12V batteries from the Milwaukee M12 platform.
What is the maximum torque output of this machine?: It delivers a maximum torque of 32 Nm across 18 clutch settings plus drill mode.
