METABO 0903061278 Pump assembly kit MSS 380-HWW

Name: METABO 0903061278 Pump assembly kit MSS 380-HWW
Brand: METABO
SKU: 02155432
Price: 114.4 EUR
Availability: PreOrder

Supplier number: METABO 0903061278 | EAN 4003665420493

Recommended Retail Price €180.29

114.40 tax incl.

€94.55 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

set

Delivery by DHL

✆ Talk to a specialist

Complete pump installation set

Practical benefits

Effective dirt particle protection: The integrated filter reliably protects your pump system from damage caused by sand and debris.
Prevents unwanted water backflow: The built-in check valve prevents water from flowing back into your well or cistern.
Fast connection and maintenance: The brass quick coupling and shut-off valve ensure you connect hoses rapidly and maintain parts easily.

In a nutshell

The right choise for

With the Metabo pump assembly kit mss 380-HWW, you connect the suction side of your domestic water booster pump quickly and reliably. This complete kit protects your pump installation and irrigation systems from damage and clogging caused by sand and debris, thanks to the pre-filter with a washable filter element. The brass check valve prevents pumped water from flowing back into your well or cistern, while the integrated ball valve lets you isolate the suction line for easy maintenance without losing water. Supplied with a quick coupling, fittings, filter key, and sealing tape, you can install your 1" suction setup with ease.

Product information FAQ

€114.40

tax incl.

Key features according to our expert

Connection size: 1"
For model: HWW

Product description

All in one package with illustrated assembly instructions
Filter to protect the pump and sprinkling systems from damage caused by sand and dirt particles, 28 bar burst pressure
Return valve: prevents the water flowing back into wells or cisterns
Ball valve (closed): prevents the water flowing back into wells or into the suction area during maintenance jobs, e.g. filter cleaning or pump disassembly
Quick-action coupling as connection option for suction hose sets
Seal strip: seals without hemp or sealing paste
For mounting to the suction connector of all domestic water works with 1" female thread
Manufactured length approx. 380 mm

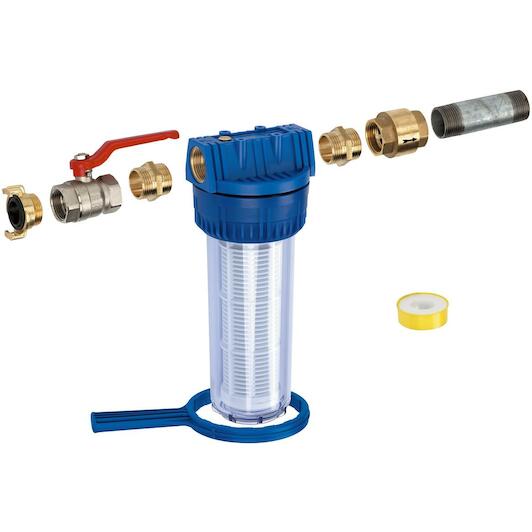

Consisting of:
Filter for domestic waterworks, long, 1" brass female thread
Washable filter insert, 80 my
Brass double nipple, 1" MThr x 1" MThr
Brass check valve, 1" FThr x 1" FThr
Nickel-plated brass ball valve, 1" FThr x 1" FThr
Brass quick-action coupling, 1" MThr
Zinc-plated pipe nipple, 1" Male Thread x 1" Male Thread x 100 mm
Fabric sealing tape, 12 m roll
Filter key for loosening the filter dome

All Features

Connection size: 1"
For model: HWW

Brand METABO
02155432
EAN 4003665420493
Supplier number METABO 0903061278

Frequently asked questions about this product

Answered by specialists

What is this pump assembly kit used for?: This kit connects to the suction side of domestic waterworks with a 1" female thread to protect the pump from sand and dirt particles.
Which pumps is this kit compatible with?: It is designed for Metabo domestic waterworks in the HWW series and any domestic water pump featuring a 1" female suction port.
What is included in the assembly kit?: The kit includes a pre-filter with a washable filter element, check valve, ball valve, quick-action coupling, nipples, sealing tape, and a filter key.
Do you need hemp or sealing paste for installation?: No, the included fabric sealing tape ensures a reliable seal without the need for hemp or sealing paste.
What are the benefits of the integrated check valve and ball valve?: The check valve prevents water from flowing back, while the ball valve isolates the suction line for easy filter cleaning or maintenance.
