Product description
DX17 Dust Extraction System

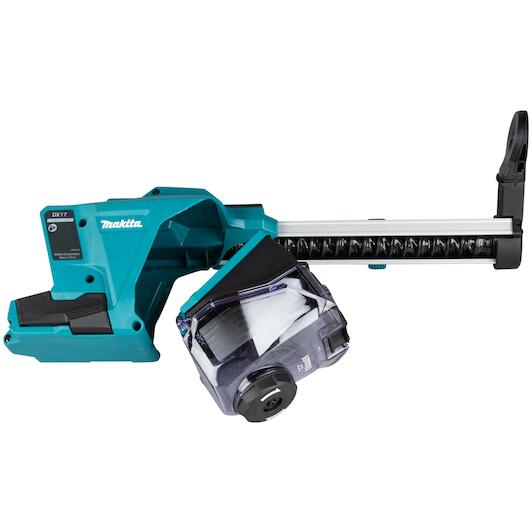

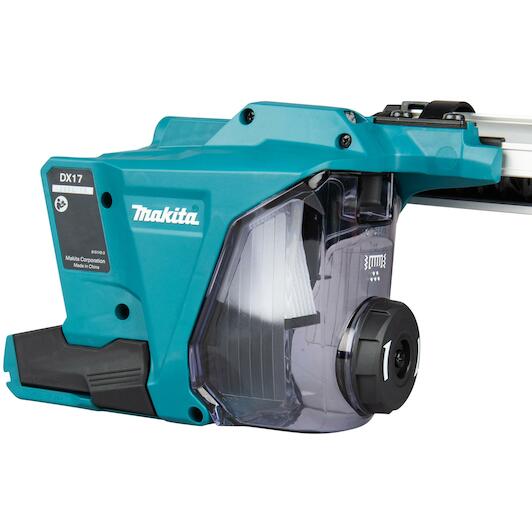

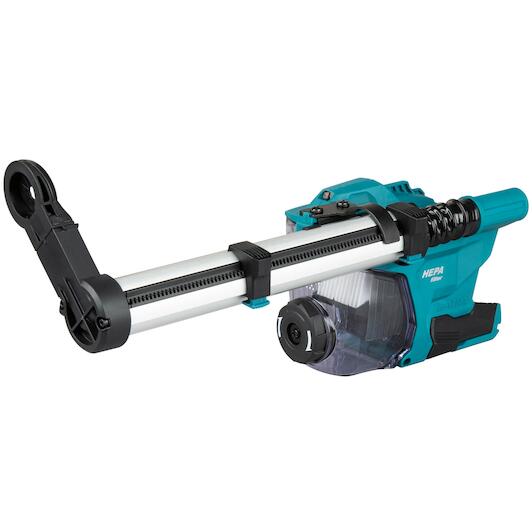

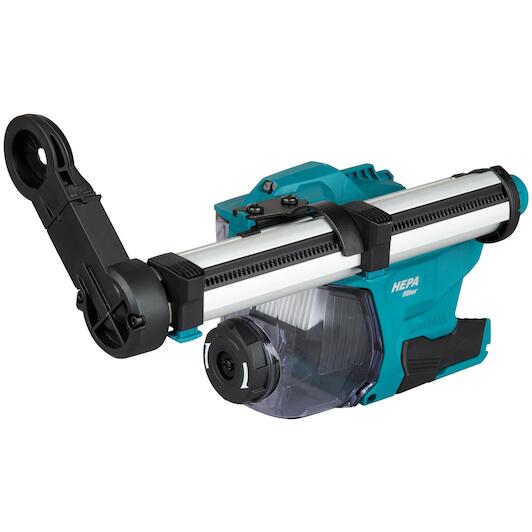

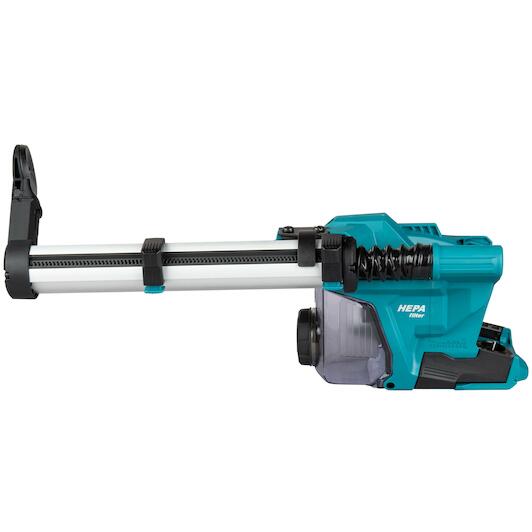

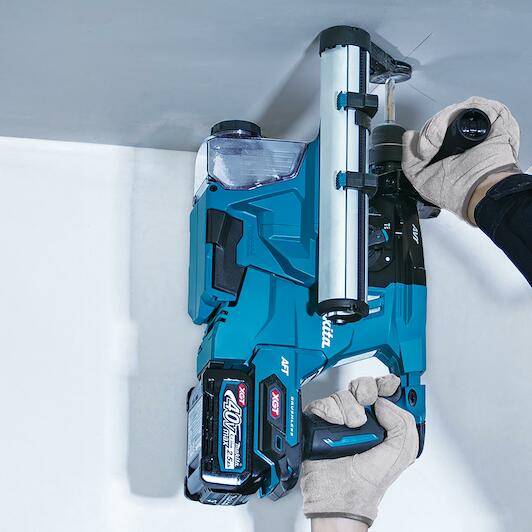

Boost efficiency when drilling into concrete with the DX17 dust extraction system. The compact, lightweight design utilises the tool's own motor for powerful dust extraction. Thanks to the push-button adjustable inlet and drilling depth, a transparent dust collection container and filter cleaning via a rotary knob, the work remains clean and precise. Maximum compatible drill size: Ø28 × 265 × 200 mm.

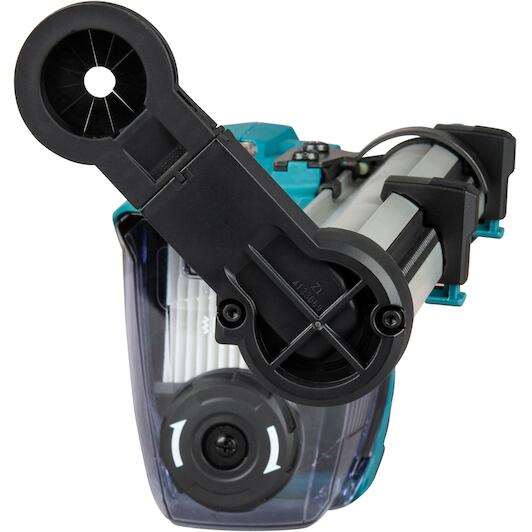

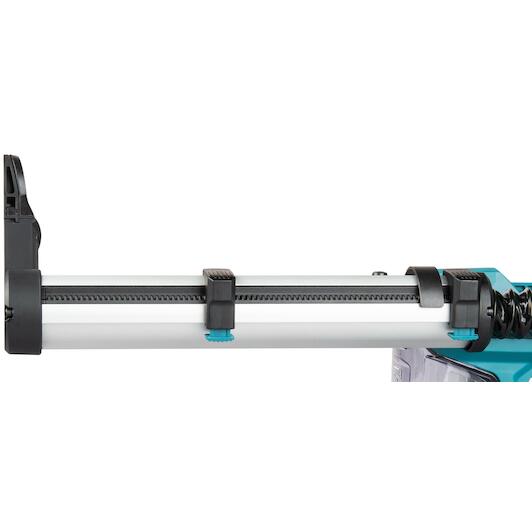

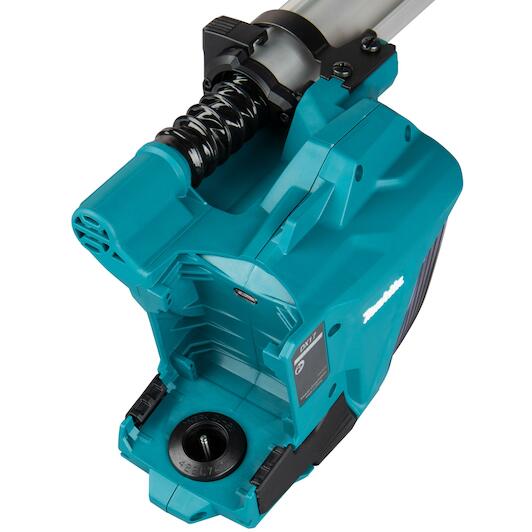

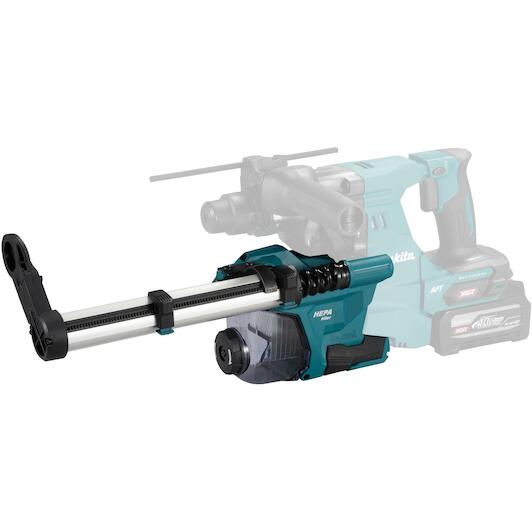

The DX17 dust extraction system for combi hammers integrates directly with the tool's motor-driven airflow to capture debris at the drill bit tip. The unit features a compact design, ensuring consistent balance and controlled operation whilst drilling into concrete. The airflow is channelled through an internal chamber where a fine dust filter traps the finest particles. The system is specifically designed for drilling in concrete and is suitable for drill bits with a total length of up to 265 mm, with an effective dust extraction range of 200 mm. The dust extraction inlet adjusts to the length of the bit via a single-button mechanism, ensuring the correct position relative to the bit is maintained and guaranteeing consistent collection at different drilling depths. The drilling depth is set using a special push-button that locks the extraction system into the desired position. Filter maintenance is facilitated by a cleaning mechanism activated by a rotary knob. Turning the knob dislodges accumulated dust from the filter surface, restoring the airflow without the need to dismantle the system. The collected material is stored in a transparent dust bin which provides a clear view of the fill level, ensuring it can be emptied in good time. The entire system is designed to function as an integrated accessory that maintains dust control performance whilst remaining lightweight and easy to operate during concrete drilling applications.
