Detachable furniture joints with flexible assembly

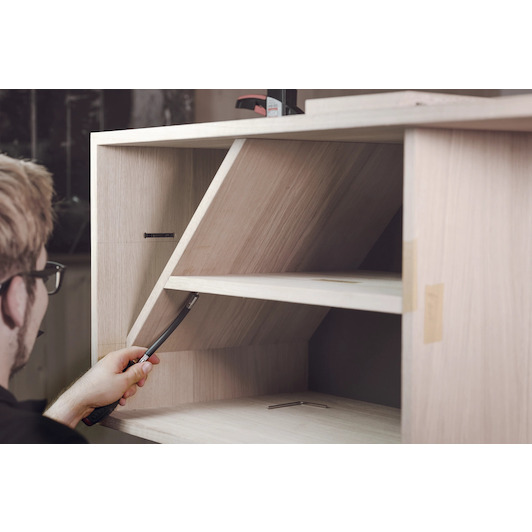

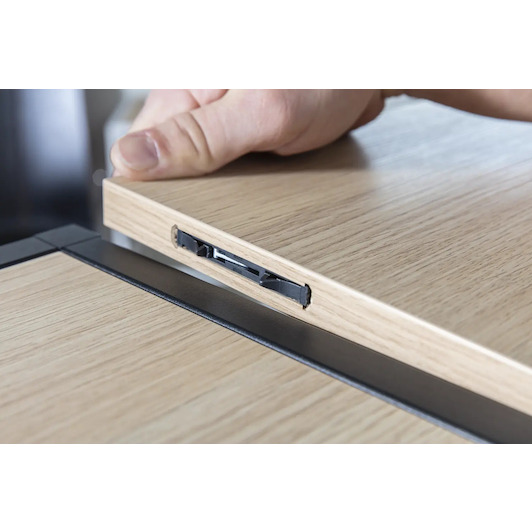

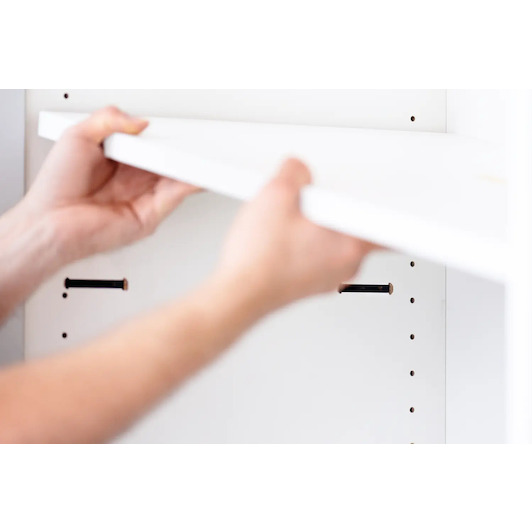

- Flexible pins for retrofitting: The flexible positioning pins allow you to slide shelves easily into an already assembled cabinet carcass.
- Clean discrete Lamello connection: You firmly connect and release the fitting using a hex key through a minimalist 6 mm access hole.
- Versatile mitre and angles: Join furniture panels effortlessly across mitre and angle configurations ranging from 22.5° to 180°.

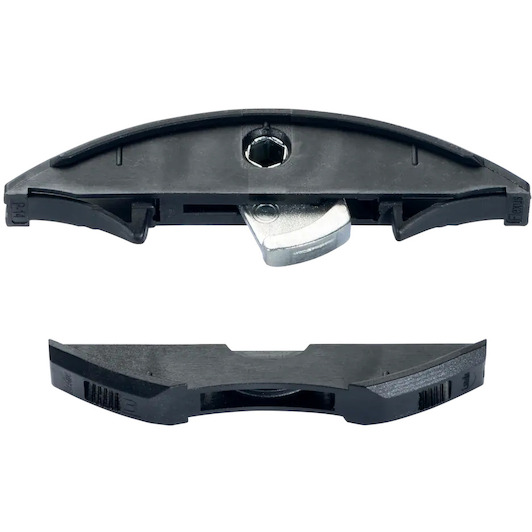

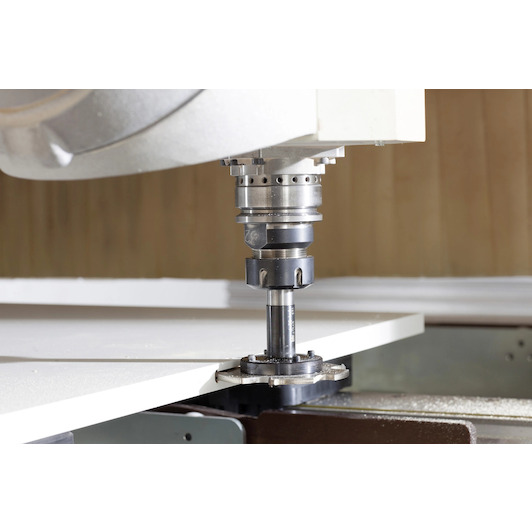

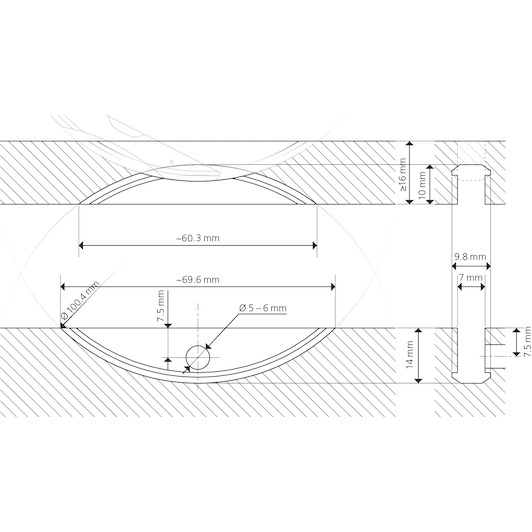

With the Lamello Clamex P-14/10 Flexus furniture connectors, you assemble and disassemble custom cabinetry with ultimate flexibility. Thanks to the retractable, flexible positioning pins, you can easily slide shelves or partition panels into an already assembled cabinet carcass, making it ideal for tight spaces or modular exhibition stands. You cut the form-locking groove using the Zeta P2 or a cnc machine and lock the joint securely through a minimalist 6 mm access hole. This box of 80 pairs is suitable for butt joints from 12 mm and miter joints from 22.5° to 180° starting at 18 mm material thickness.
Product description

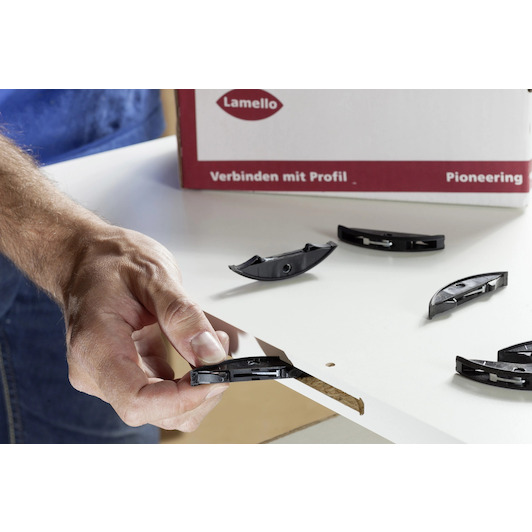

- Removable furniture connector, installed in seconds

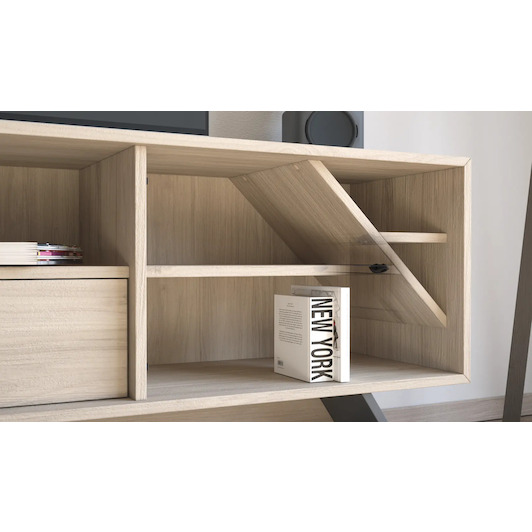

- Flexible positioning pins for retrofitting shelves
- Aesthetic appearance with the barely visible 6 mm drill hole
- All-rounder for all corner and mitre joints from 22.5° to 180°
- Ideal for furniture construction, sideboards, wine racks, inspection flaps

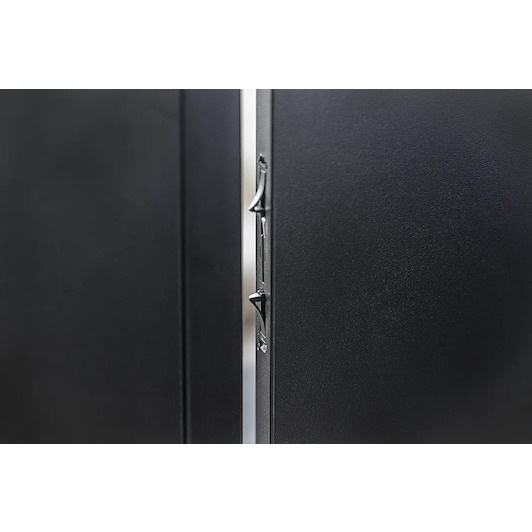

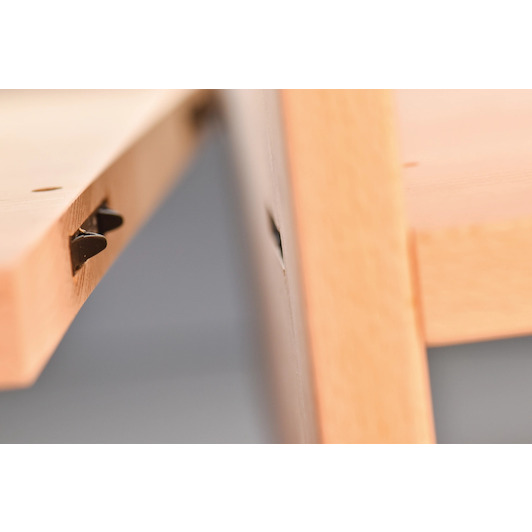

Clamex P-14/10 Flexus is a demountable furniture connector that is fitted into the workpiece within seconds using the groove milling machine Zeta P2. With a minimalist operating opening of 6 mm, the Clamex P-14/10 Flexus is powerfully connected and disconnected just like an eccentric joiner via a lever. The Clamex P-14/10 Flexus was developed to complement the Clamex P-14 and offers the same benefits. These include high aesthetics thanks to the almost hidden connections, the small access bore, mitred connections at different angles and the powerfully connected yet detachable connectors. Unlike the Clamex P-14, the Clamex P-14/10 Flexus does not have rigid positioning pins. They are flexible and have beveled edges on both sides. This allows a workpiece to be inserted between two sides, snapped into place and removed again. Thanks to this feature, extendable shelves or sloping shelves can be inserted after the furniture has already been assembled. As the positioning pins engage when inserted, the extendable shelf is held in the correct position until the workpieces are connected with an Allen key. When connecting a complex piece of furniture with several vertical and horizontal workpieces, the order in which the furniture parts are assembled plays no role. The positioning pins also provide wring resistance when only one connector can be used, such as for a plinth. This eliminates the need to use dowels, as is normally the case with eccentric connectors.
Applications
- Removable connecting fittings for sheet materials in furniture construction
- Connecting blocks with six sides at mitre
- Concealed installation of revision valves
- In interior construction in built-in cupboards, wardrobes under stairs or sloping roofs
- In kitchen construction in wine racks frame constructions or open shelves
- In furniture construction for high-quality furniture with mitred corners or unusual angles, wine racks or bookcases
- Blunt joints from a material thickness of 12 mm
- Mitred joints from a material thickness of 18 mm
Features
- Dismountable: Always detachable with the rotating lever
- Aesthetic: the small, barely visible opening (Ø = 6 mm) serves to open and close the connector
- Flexible assembly sequence: Movable positioning bolts allow a freely selectable assembly sequence
- Versatile: the small depth of the connector allows mitre cuts of 22.5 to 180°, e.g. for surface, corner and intermediate wall connections
- Versatile assembly: bevelled and movable positioning bolts allow the workpiece to be moved inwards and outwards on both sides
