KUKKO 47-2-A three-armed trigger 500mm

Name: KUKKO 47-2-A three-armed trigger 500mm
Brand: KUKKO
SKU: 41230016
Price: 658.4 EUR
Availability: PreOrder

Supplier number: KUKKO 47-2-A | EAN 4021176017841

658.40 tax incl.

€544.13 excl. VAT (incl. all environmental contributions)

On order: delivered from 06/10/2026

Delivery by DHL

✆ Talk to a specialist

Powerful pulling with Kukko

Practical benefits

Balanced pulling force distribution: The three swivel arms ensure you pull heavy gears and bearings with optimal stability and no tilting.
Extended reach and spread: A clamping width of 500 mm and depth of 450 mm let you handle large mechanical components effortlessly.
Controlled high pressure application: The heavy-duty mechanical spindle with SW36 drive gives you reliable, gradual force transmission for tough disassemblies.

In a nutshell

The right choise for

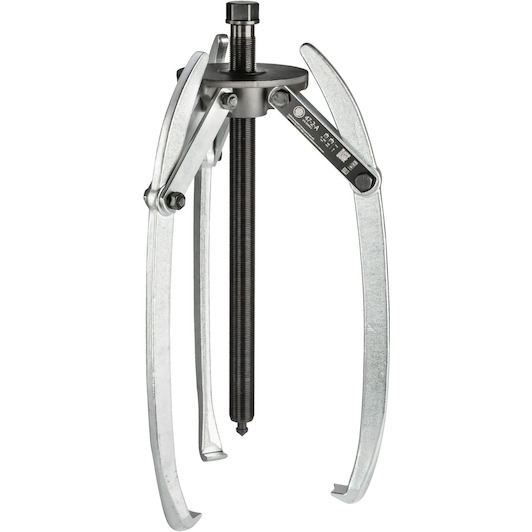

With the Kukko 47-2-A universal puller, you handle the demanding removal of large bearings, gears, and belt pulleys from heavy shafts with complete confidence. The 3-arm design with swiveling puller hooks delivers balanced load distribution, preventing tilting and protecting both the shaft and workpiece from damage. Featuring a wide spread of up to 500 mm and a reach of 450 mm, it easily grips deep-seated and oversized components. The heavy-duty mechanical spindle with an SW36 drive ensures smooth, controlled power transmission throughout the pull. Thanks to the combination crossbar, you can quickly configure the tool as a 2-arm or 3-arm puller to match your job requirements.

Product information FAQ

€658.40

tax incl.

Key features according to our expert

Max. width: 500 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 3
Max. height: 450 mm

Scope of delivery

46-450: drawbar hooks for 46/47 series

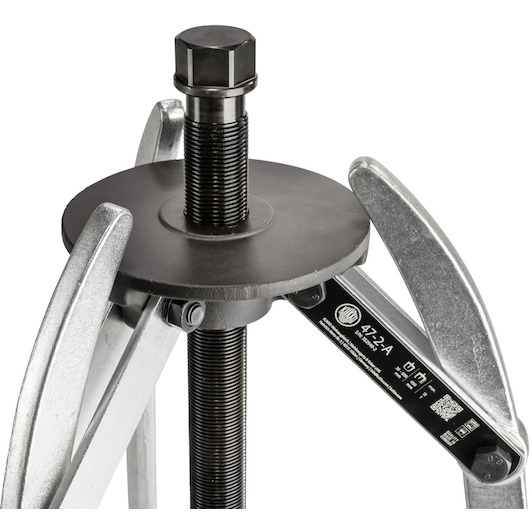

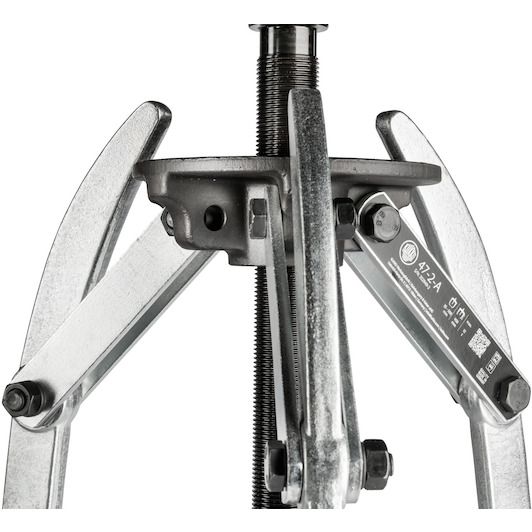

46-47-T:Bridge for 2-, 3-arm universal tractors with swivelling drawbar hooks for series 46 and 47

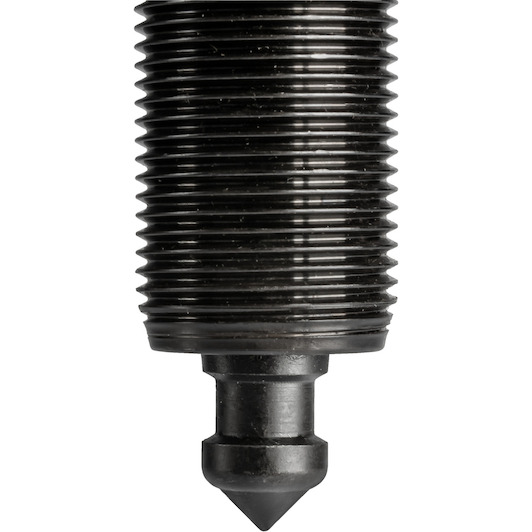

633370:Double-sided spindle tip for Mechanical pressure spindles G1", G1.1/8"
633500:Spindle Ø 33.249 mm for spindle Thread G 1" / 11, 500 mm length, 6.9 mm Screw thread

Product description

The heavy-duty 3-arm universal puller with swivel draw hooks and combi-bridge is used for pulling large bearings, gears and discs in all common sizes for Craft, workshop and Industry. With it, any part that is on a shaft and freely accessible from outside can be loosened. The swivelling draw hooks ensure maximum freedom of movement for individual adjustment to the respective clamping range and clamping depth even in restricted environmental conditions. The 3-arm design guarantees even load distribution and therefore a particularly secure grip on the part to be pulled off. Thanks to the combi-bridge, the puller can also be used as a 2-arm model.

Application

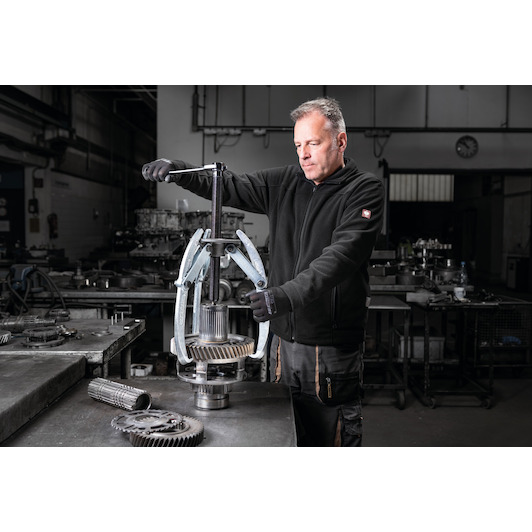

For pulling large bearings, gears and discs in all common sizes for Crafts, Workshop and Industry.

All Features

Max. width: 500 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 3
Max. height: 450 mm

Brand KUKKO
41230016
EAN 4021176017841
Supplier number KUKKO 47-2-A

Frequently asked questions about this product

Answered by specialists

What are the maximum pulling dimensions of this tool?: This puller has a maximum spread width of 500 mm and a maximum clamping reach of 450 mm.
What wrench size is required to operate the spindle?: You need a wrench or socket with size SW 36 to turn the mechanical pressure spindle.
Can this puller also be configured with 2 arms?: Yes, the combination crossbar (part 46-47-T) allows configuration as either a 2-jaw or 3-jaw puller.
Is this puller hydraulically powered?: No, this model is equipped with a mechanical pressure spindle (G 1" / 11 with 500 mm length).
What is the advantage of the swiveling legs?: The swiveling hooks provide maximum freedom of movement for precise positioning, even in tight spaces.
