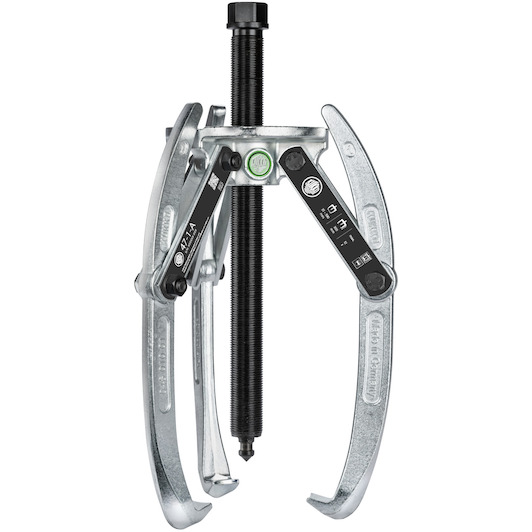

KUKKO 47-1-A three-armed trigger 300mm

Name: KUKKO 47-1-A three-armed trigger 300mm
Brand: KUKKO
SKU: 41230015
Price: 402.8 EUR
Availability: PreOrder

Supplier number: KUKKO 47-1-A | EAN 4021176017681

402.80 tax incl.

€332.89 excl. VAT (incl. all environmental contributions)

On order: delivered from 15/10/2026

Delivery by DHL

✆ Talk to a specialist

Heavy duty extraction of components

Practical benefits

Controlled power with Kukko: You can effortlessly remove stubborn bearings, gears, and pulleys with a reach and spread of up to 300 mm.
Balanced three point pulling: The three-arm design distributes pulling forces evenly across the workpiece, ensuring a straight removal without canting or damaging components.

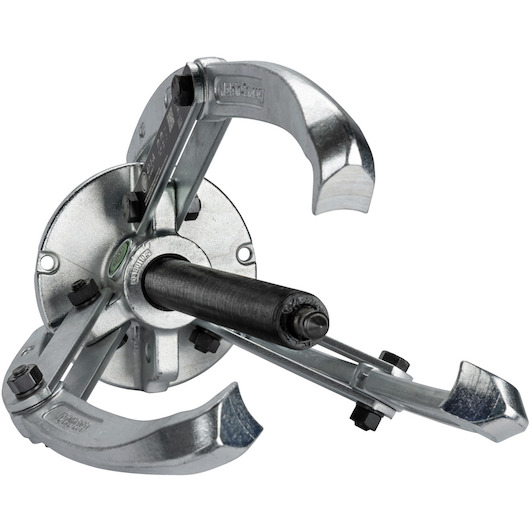

Swiveling legs in tight spaces: Thanks to the pivoting hooks and combination crossbeam, you adjust the tool easily to match restricted working environments.

In a nutshell

The right choise for

With the Kukko 47-1-A universal puller, you effortlessly remove stubborn bearings, gears, and pulleys with a reach and spread of up to 300x300 mm. The three-arm design distributes pulling forces evenly across the component, ensuring a straight removal without canting, skewing, or damaging parts. Thanks to the swiveling legs and combination crossbeam, you can easily adapt the setup to tight spaces or configure the tool as a 2-jaw puller when needed. Operating the mechanical threaded spindle with a sw 36 mm wrench gives you full control for reliable and powerful dismantling.

Product information FAQ

€402.80

tax incl.

Key features according to our expert

Max. width: 300 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 3
Max. height: 300 mm

Scope of delivery

46-300: drawbar hooks for 46/47 series
46-47-T:Bridge for 2-, 3-arm universal tractors with swivelling drawbar hooks for series 46 and 47
633370:Double-sided spindle tip for Mechanical pressure spindles G1", G1.1/8"
633400:Spindle Ø 33.249 mm for spindle Thread G 1" / 11, 400 mm length, 6.9 mm Screw thread

Product description

The heavy-duty 3-arm universal puller with swivel draw hooks and combi-bridge is used for pulling large bearings, gears and discs in all common sizes for Craft, workshop and Industry. With it, any part that is on a shaft and freely accessible from outside can be loosened. The swivelling draw hooks ensure maximum freedom of movement for individual adjustment to the respective clamping range and clamping depth even in restricted environmental conditions. The 3-arm design guarantees even load distribution and therefore a particularly secure grip on the part to be pulled off. Thanks to the combi-bridge, the puller can also be used as a 2-arm model.

Application

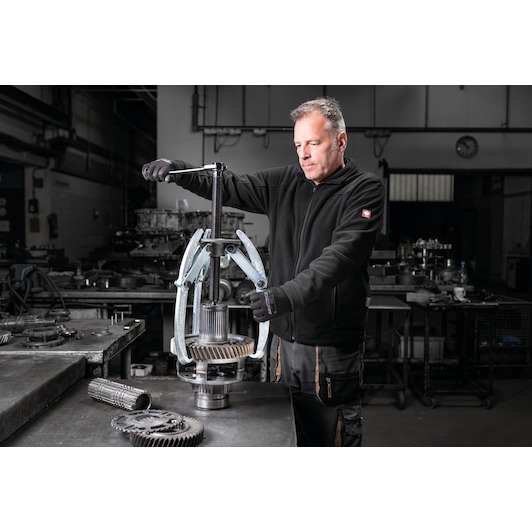

For pulling large bearings, gears and discs in all common sizes for Crafts, Workshop and Industry.

All Features

Max. width: 300 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 3
Max. height: 300 mm

Brand KUKKO
41230015
EAN 4021176017681
Supplier number KUKKO 47-1-A

Frequently asked questions about this product

Answered by specialists

What is this universal puller used for?: It is designed for pulling large bearings, gears, and discs from shafts in workshops and industrial environments.
What are the maximum spread and reach of this tool?: This puller has a maximum spread width of 300 mm and a maximum reach depth of 300 mm.
Is this puller hydraulic or mechanical?: This model operates purely mechanically with a threaded spindle and is not hydraulic.
What wrench size is required for the spindle?: You need a wrench or socket with a size of SW 36 mm to operate the spindle.
Can this puller also be used with 2 arms?: Yes, the combination crosshead allows you to configure and use it as either a 2-jaw or 3-jaw puller.
