KUKKO 210-1 two-arm trigger 95mm

Name: KUKKO 210-1 two-arm trigger 95mm
Brand: KUKKO
SKU: 41230090
Price: 266.8 EUR
Availability: PreOrder

Supplier number: KUKKO 210-1 | EAN 4021176030383

266.80 tax incl.

€220.50 excl. VAT (incl. all environmental contributions)

On order: delivered from 06/10/2026

Delivery by DHL

✆ Talk to a specialist

Controlled separation using the Kukko puller

Practical benefits

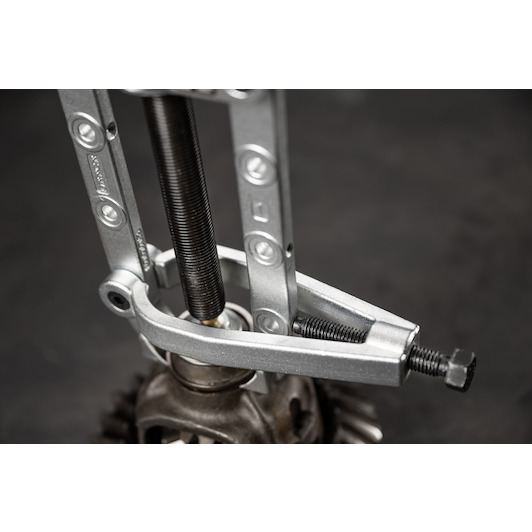

Secure grip without slipping: The integrated side clamp multiplies contact pressure on the jaws so you extract components without risk of slipping.

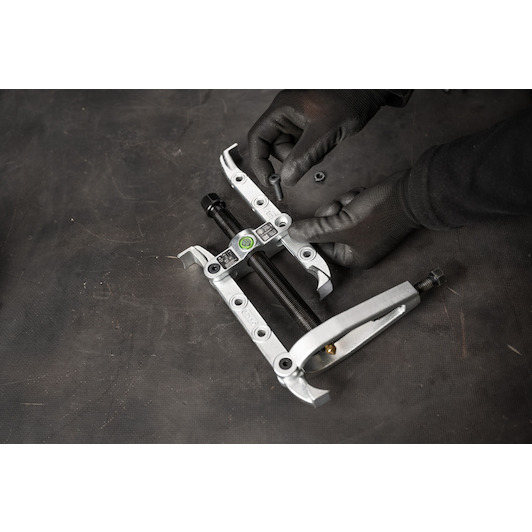

Easily adjustable clamping depth: Multiple mounting holes allow you to quickly adjust the reach up to 170 mm for different shaft depths.

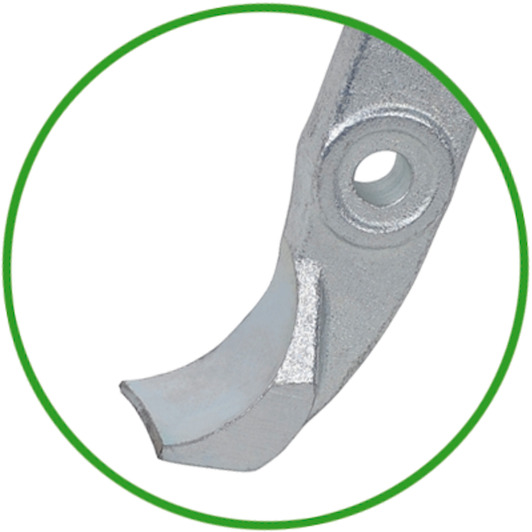

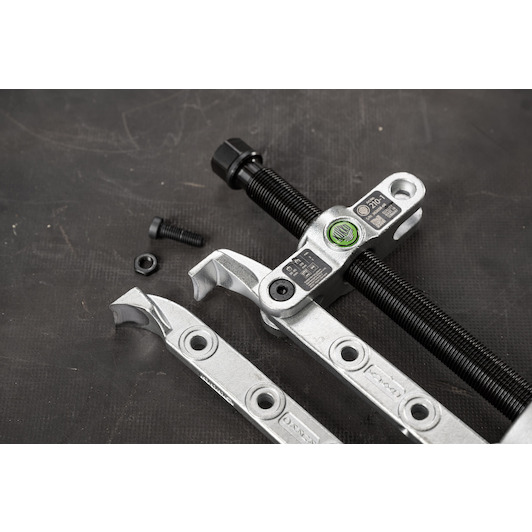

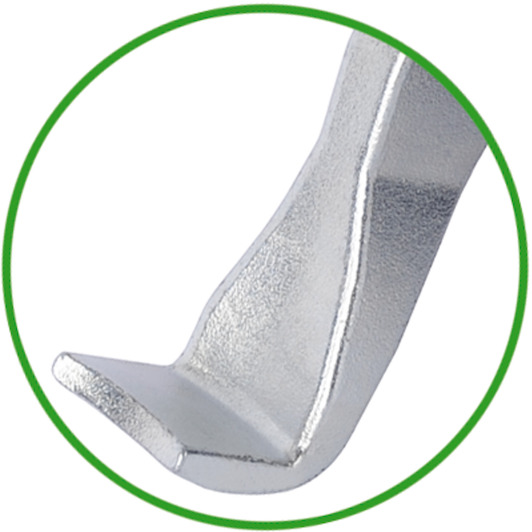

Reversible dual purpose jaws: You can rotate the jaws 180° to switch between standard pulling hooks and sharp separating claws for parts up to 95 mm wide.

In a nutshell

The right choise for

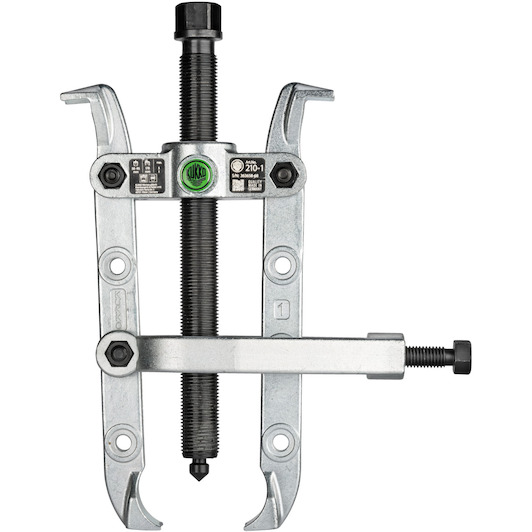

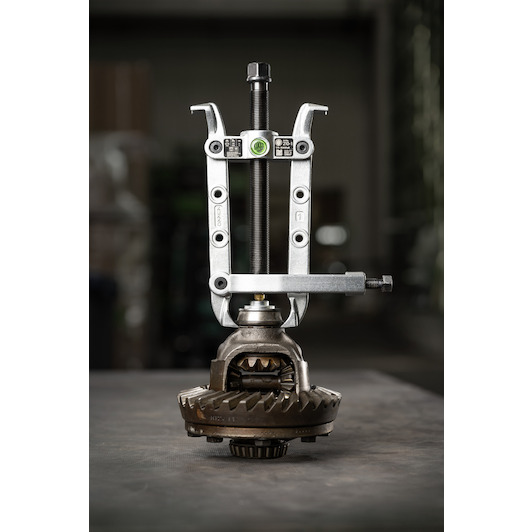

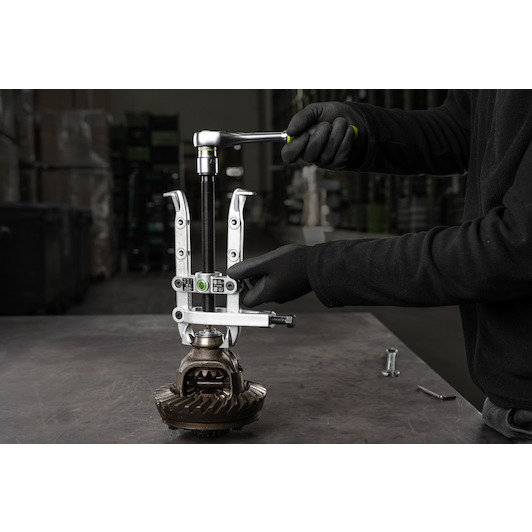

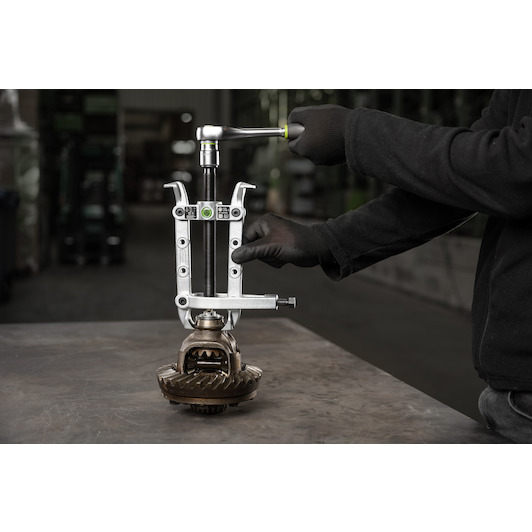

With the Kukko 210-1 Cobra puller, you easily remove flush-mounted and tightly seated components like bearings, inner rings, and gears. Its integrated side clamp firmly forces the two jaws beneath the workpiece, preventing any slipping during extraction. The reversible jaws rotate 180° to switch between standard pulling hooks and sharp separating claws for widths up to 95 mm. Multiple mounting holes allow you to quickly adjust the reach up to 170 mm to suit deep-seated applications. Driven by a mechanical spindle with an sw 22 mm drive, this puller gives you controlled, dependable power for demanding maintenance tasks.

Product information FAQ

€266.80

tax incl.

Key features according to our expert

Max. width: 95 mm
Hydraulical: No
Number of hooks: 2
Max. height: 170 mm

Scope of delivery

204-2-T:Bridge for 2-arm universal puller with side clamp 210-1, 204-02, 204-2, 204-V
204201:Clamp, complete, for 2-arm universal puller with side clamp 204-02, 204-1, 204-2, 204-V, 210-1
210-1-170-P:Brackets (pair) for 210 series
620260:Double-sided spindle tip for Mechanical pressure spindles M20, G1/2", G5/8", G3/4"
621220:Spindle Ø 20.955 mm for spindle Thread G 1/2" / 14, 220 mm length, 5.4 mm Screw thread

Product description

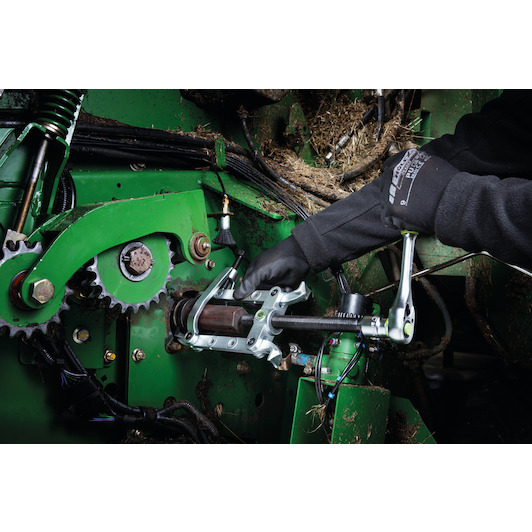

The 2-arm separation puller "Cobra" with adjustable clamping depth and side clamp is used for pulling flat bearings, gear wheels and discs in all common sizes for Crafts, workshop and Industry. It can be used to loosen any part sitting on a shaft that is freely accessible from outside. The draw hooks can be rotated 180° and used on both sides. One side has normal draw bolts, the other side has special separation jaws. Thanks to the multiple drill holes in the draw hooks, different clamping depths can be set for flexible working. The side clamp increases the tightening pressure of the draw hooks many times over, thus preventing the tractor from slipping.

Application

For pulling flush bearings, gear wheels and discs in all common sizes for Craft, workshop and Industry.

All Features

Max. width: 95 mm
Hydraulical: No
Number of hooks: 2
Max. height: 170 mm

Brand KUKKO
41230090
EAN 4021176030383
Supplier number KUKKO 210-1

Frequently asked questions about this product

Answered by specialists

What is the Kukko 210-1 separator puller used for?: It is designed to remove flush-mounted parts such as bearings, inner rings, and pinions.
What are the maximum reach and spread dimensions?: This model features a clamping width up to 95 mm and an adjustable depth up to 170 mm.
What wrench size is required for the spindle?: The mechanical spindle requires a tool width across flats of SW 22 mm.
Is this puller mechanical or hydraulic?: The Kukko 210-1 is purely mechanical and spindle-driven, not hydraulic.

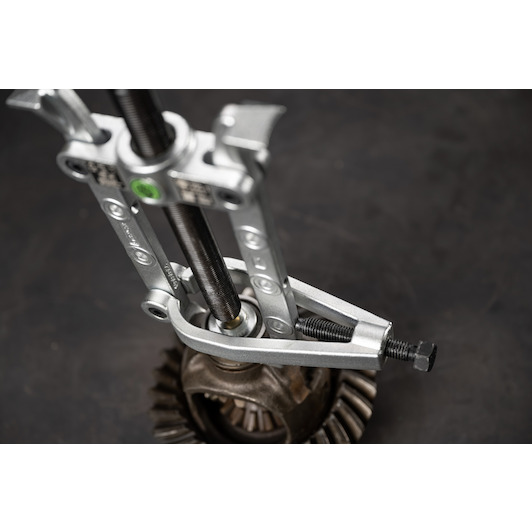

What is the purpose of the side clamp?: The clamp presses the pulling jaws firmly beneath the component to prevent slipping during flush removal.
