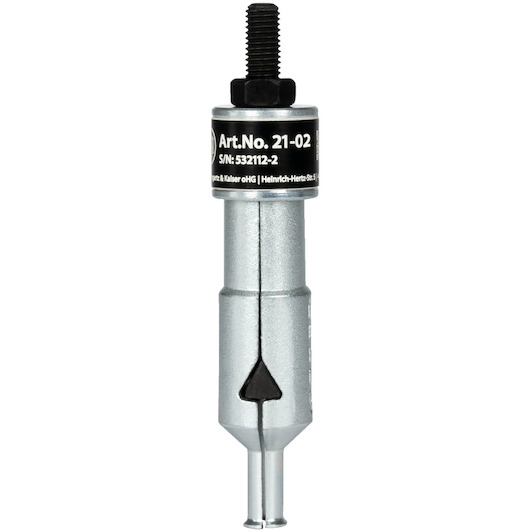

KUKKO 21-02 internal puller with 2 scales 10 to 14 mm

Name: KUKKO 21-02 internal puller with 2 scales 10 to 14 mm
Brand: KUKKO
SKU: 41230049
Price: 80.8 EUR
Availability: PreOrder

Supplier number: KUKKO 21-02 | EAN 4021176010736

80.80 tax incl.

€66.78 excl. VAT (incl. all environmental contributions)

On order: delivered from 05/10/2026

Delivery by DHL

✆ Talk to a specialist

Controlled extraction with Kukko

Practical benefits

Firm and secure grip: The 2-shell design with extra large gripping edges lets you extract flush components without slipping.
Overload protection built in: An internal safety stop prevents excessive spreading, ensuring you protect both the workpiece and tool.
Accurate fit for bearings: Covering diameters from 10 to 14 mm, you pull tightly seated internal bearings and bushings with ease.

In a nutshell

The right choise for

With the Kukko 21-02 internal extractor, you can reliably remove tightly seated internal bearings, bearing outer rings, and bushings with an internal diameter of 10 to 14 mm. The 2-shell design with extra large gripping edges provides a firm, slip-free hold, while the built-in safety stop prevents excessive spreading and overload. This protects both your workpiece and housing from damage during extraction from blind holes. Featuring an M7 connecting thread, this internal extractor easily pairs with an optional counter stay such as the 22-1 or a slide hammer such as the 22-0-05 for precise and controlled disassembly.

Product information FAQ

€80.80

tax incl.

Key features according to our expert

For diameter: 10-14 mm

Scope of delivery

Optional extension:21-V-040
Extension for inner puller (40 mm extension, fixing thread M7):21-V-060
Extension / extensions for inner puller (60 mm extension / extensions, fixing thread M7):21-V-080
Extension / extensions for internal puller (80 mm Extension / extensions, fixing thread M7):22-0-05
Puller with 200 mm stroke, 0.5 kg stroke mass:22-1
Counter support, up to 60 mm clamping range, 115 mm clamping depth:

Product description

Series 21 inner pullers are used for pulling out internal bearings, bearing outer rings and bushings in Craft, workshop and Industry. The multi-part design of the inner pullers with their extra-large grip edges enables safe extraction of internal parts. Series 21 impresses with its compatibility and versatility in applications. Depending on the application, there are numerous variants of the optionally 2- or 3-shell inner pullers. They are used either together with Counter supports or with stroke pullers.

Application

For pulling out inner bearings, bearing outer rings and shaft holes in Craft, workshop and Industry.

All Features

For diameter: 10-14 mm

Brand KUKKO
41230049
EAN 4021176010736
Supplier number KUKKO 21-02

Frequently asked questions about this product

Answered by specialists

What internal diameters is this internal extractor suitable for?: The Kukko 21-02 is suitable for components with an internal diameter from 10 to 14 mm.
What additional tool is required to operate this extractor?: You use this internal extractor together with a counter stay (such as 22-1) or a slide hammer (such as 22-0-05).
What connection thread does this extractor have?: The internal extractor is equipped with an M7 connecting thread.
Which parts can you remove with this tool?: It is designed for pulling internal bearings, bearing outer rings, and bushings.
Can the reach of this extractor be extended?: Yes, you can fit optional extensions with an M7 thread, such as 21-V-040, 21-V-060, or 21-V-080.
