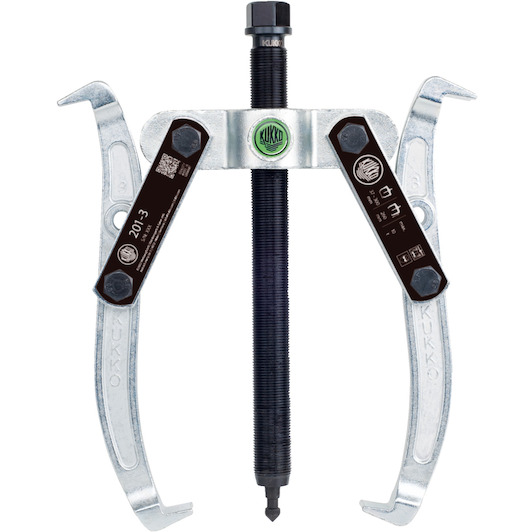

KUKKO 201-3 two-armed trigger 300 mm

Name: KUKKO 201-3 two-armed trigger 300 mm
Brand: KUKKO
SKU: 41230142
Price: 225.4 EUR
Availability: PreOrder

Supplier number: KUKKO 201-3 | EAN 4021176026751

225.40 tax incl.

€186.28 excl. VAT (incl. all environmental contributions)

On order: delivered from 05/10/2026

Delivery by DHL

✆ Talk to a specialist

Controlled pulling with Kukko 201-3

Practical benefits

Reversible double-end jaws: You quickly adapt to various parts by flipping the reversible hooks to suit the job.
Generous reach and spread: With a 300 mm spread and 260 mm reach, you easily tackle larger bearings and gears.
Smooth damage-free extraction: The heavy-duty mechanical spindle lets you apply straight, centered pulling force without harming components.

In a nutshell

The right choise for

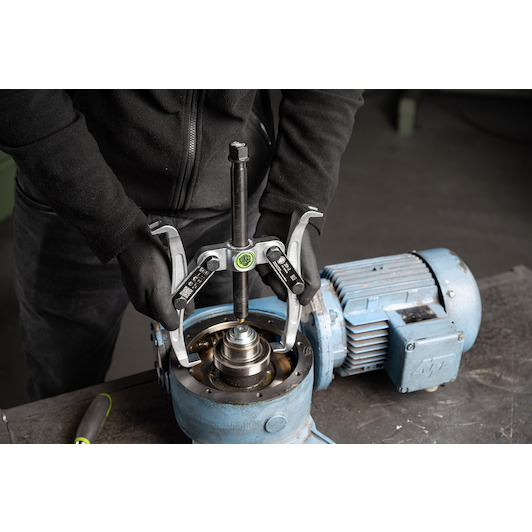

With the Kukko 201-3 2-jaw universal puller, you safely remove seized or press-fitted components such as bearings, gears, and pulleys from shafts. Thanks to the reversible jaws, you quickly adapt the tool to suit different workpiece shapes and reach requirements. a generous spread of 300 mm and reach of 260 mm let you handle larger mechanical parts with ease. The robust mechanical spindle is operated with a 27 mm wrench (SW 27) to deliver a straight, centric pulling force that protects both the shaft and the component during maintenance and workshop overhaul jobs.

Product information FAQ

€225.40

tax incl.

Key features according to our expert

Max. width: 300 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 260 mm

Scope of delivery

201-3-260-P:Tow hooks (pair) for series 201
201-3-T:Bridge for 2-arm universal towing device with reversible drawbar 201-3/201-4 205-1/205-2/205-3
626300:Spindle Ø 26.441 mm for spindle thread G 3/4" / 14, 300 mm length, 5.4 mm Screw thread

Product description

The 2-arm puller with rotatable and reversible pull hooks is used for central pulling of bearings, gears and discs in all common sizes for Craft, Workshop and Industry. With it, any part that is on a shaft and freely accessible from outside can be loosened. The rotatable draw hooks with adjustable clamping depth can be used on both sides. Depending on the version, the claw shape differs.

Application

For centric pulling of bearings, gears and discs in all common sizes for Crafts, Workshop and Industry.

All Features

Max. width: 300 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 260 mm

Brand KUKKO
41230142
EAN 4021176026751
Supplier number KUKKO 201-3

Frequently asked questions about this product

Answered by specialists

What is the Kukko 201-3 used for?: You use this universal puller for centric pulling of bearings, gears, pulleys, and discs from shafts.
What are the maximum spread and reach?: This puller has a maximum spread of 300 mm and a maximum reach of 260 mm.

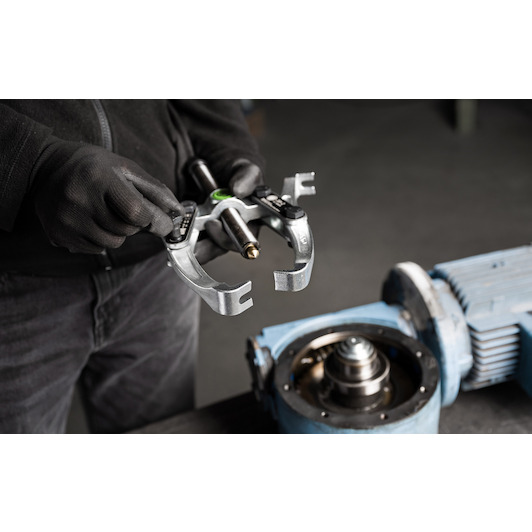

What is the benefit of the reversible jaws?: The puller jaws rotate 180 degrees and can be used on both sides, providing versatile claw shapes and reach adjustments.

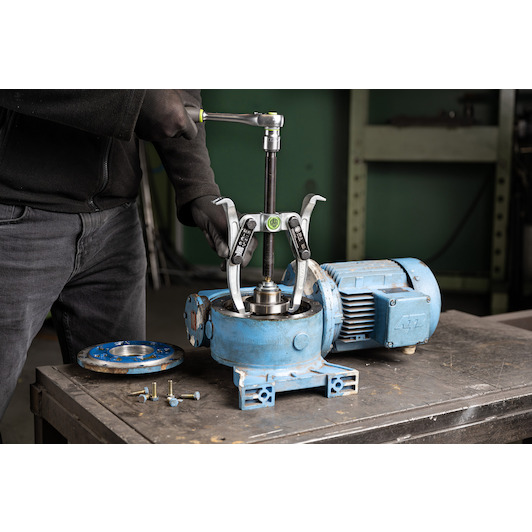

What wrench size is required for the spindle?: You operate the mechanical spindle using a 27 mm wrench (SW 27).
Is this puller hydraulic?: No, this is a mechanical puller operated manually via a threaded spindle.
