KUKKO 20-4 tractor with two arms 520mm

Name: KUKKO 20-4 tractor with two arms 520mm
Brand: KUKKO
SKU: 41230007
Price: 831.95 EUR
Availability: PreOrder

Supplier number: KUKKO 20-4 | EAN 4021176009761

831.95 tax incl.

€687.56 excl. VAT (incl. all environmental contributions)

On order: delivered from 03/10/2026

Delivery by DHL

✆ Talk to a specialist

Powerful and precise mechanical extraction

Practical benefits

Dependable Kukko 20-4 build: You remove large bearings, gears, and pulleys smoothly thanks to the rigid two-jaw pulling setup.
Fully adjustable jaw capacity: With a 520 mm spread and 200 mm reach, you adapt the jaws precisely to diverse workpieces.
Robust mechanical pressure spindle: The heavy-duty spindle with SW 36 mm drive delivers consistent, controlled force without slipping.

In a nutshell

The right choise for

With the Kukko 20-4 two-arm universal puller, you remove tightly fitted components like large bearings, gears, and pulleys safely and without damage. Featuring a wide spread of up to 520 mm and a reach depth of 200 mm, the adjustable jaws adapt precisely to large workpieces. The heavy-duty mechanical spindle with a g 1" thread and sw 36 mm hex drive delivers smooth, controlled force, eliminating the need for destructive hammering. By simply reversing the hooks on the crossbeam, you switch between external and internal extraction, giving you complete control during heavy maintenance and workshop overhaul tasks.

Product information FAQ

€831.95

tax incl.

Key features according to our expert

Max. width: 520 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 200 mm

Scope of delivery

20-4-T:Bridge for 2-arm universal puller 20-4
3-200-P:3-200-P
633370:Double-sided spindle tip for Mechanical pressure spindles G1", G1.1/8"
633400:Spindle Ø 33.249 mm for spindle Thread G 1" / 11, 400 mm length, 6.9 mm Screw thread

Product description

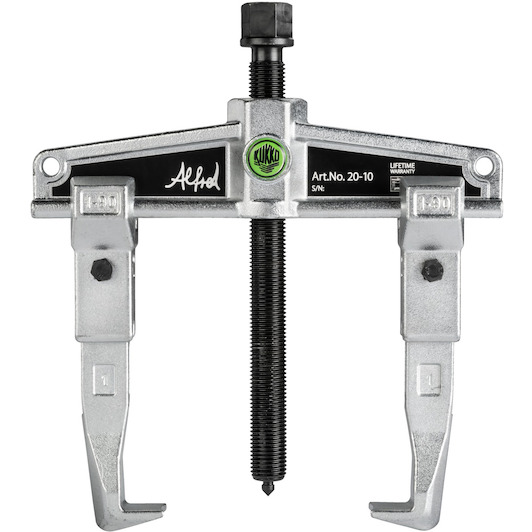

The 2-arm universal puller is used for pulling bearings, gears and discs in all common sizes for Craft, workshop and Industry. It can be used to loosen any part sitting on a shaft and freely accessible from outside. Equipped with robust and adjustable standard hooks, this all-round puller ensures particularly safe, damage-free Dismantling both when pulling out and pulling in.

Application

For pulling bearings, gears and discs in all common sizes for Crafts, Workshop and Industry.

All Features

Max. width: 520 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 200 mm

Brand KUKKO
41230007
EAN 4021176009761
Supplier number KUKKO 20-4

Frequently asked questions about this product

Answered by specialists

What are the maximum spread and reach of this puller?: The Kukko 20-4 has a maximum spread of 520 mm and a reach depth of 200 mm.
What wrench size is required to operate the spindle?: You need a wrench with hex size SW 36 mm to drive the mechanical spindle.
Can this puller be used for both external and internal pulling?: Yes, reversing the pulling hooks on the crossbeam allows for both external and internal extraction.
Is this a hydraulic puller?: No, this model operates with a mechanical pressure spindle with a G 1" thread.
What are the main applications for this 2-arm puller?: It is designed for non-destructive removal of bearings, gears, pulleys, and discs from shafts.
