KUKKO 20-30 tractor with two arms 350mm

Name: KUKKO 20-30 tractor with two arms 350mm
Brand: KUKKO
SKU: 41230006
Price: 387.8 EUR
Availability: InStock

Supplier number: KUKKO 20-30 | EAN 4021176010163

387.80 tax incl.

€320.50 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

✆ Talk to a specialist

Powerful extraction with Kukko

Practical benefits

Wide 350 mm clamping reach: You effortlessly remove large bearings, gears, and pulleys thanks to the generous 350 mm clamping spread.
Deep 200 mm gripping depth: With a 200 mm reach, you access deeply seated components mounted along shafts without difficulty.
Stable dual-arm load distribution: The two sturdy pulling arms ensure balanced and controlled force transmission during heavy-duty mechanical operations.

In a nutshell

The right choise for

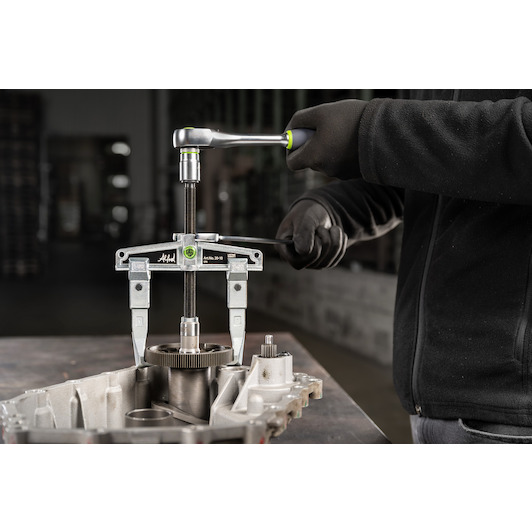

With the Kukko 20-30 universal 2-jaw puller, you remove tightly seated bearings, gears, and pulleys cleanly without damaging the shaft or component. Thanks to the generous spread of up to 350 mm and a reach of 200 mm, you easily access wide and deeply positioned parts. The two sturdy pulling arms ensure balanced load distribution across the workpiece, eliminating the need for destructive removal methods. Delivering a pulling force of up to 8.5 t (85 kN) and operated with a 27 mm wrench, it provides dependable control for demanding mechanical maintenance tasks.

Product information FAQ

€387.80

In stock - tax incl.

Key features according to our expert

Max. width: 350 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 200 mm

Scope of delivery

20-30-T:Bridge for 2-arm universal puller 20-30
3-200-P:3-200-P
626300:Spindle Ø 26.441 mm for spindle thread G 3/4" / 14, 300 mm length, 5.4 mm Screw thread

Product description

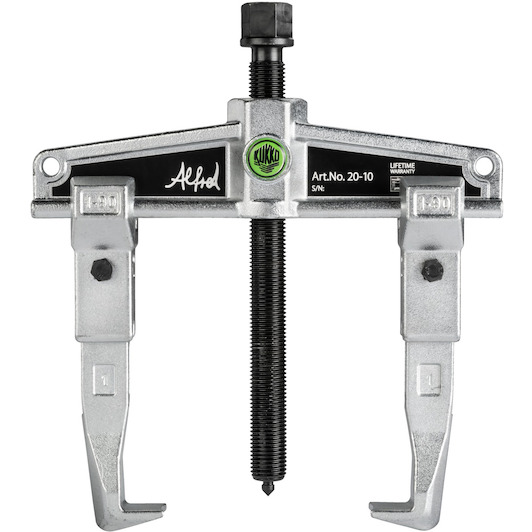

The 2-arm universal puller is used for pulling bearings, gears and discs in all common sizes for Craft, workshop and Industry. It can be used to loosen any part sitting on a shaft and freely accessible from outside. Equipped with robust and adjustable standard hooks, this all-round puller ensures particularly safe, damage-free Dismantling both when pulling out and pulling in.

Application

For pulling bearings, gears and discs in all common sizes for Crafts, Workshop and Industry.

All Features

Max. width: 350 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 200 mm

Brand KUKKO
41230006
EAN 4021176010163
Supplier number KUKKO 20-30

Frequently asked questions about this product

Answered by specialists

What are the maximum spread and clamping depth of this puller?: The Kukko 20-30 has a maximum external spread of 350 mm and a clamping depth of 200 mm.
What wrench size is required to operate the spindle?: Operating the mechanical pressure spindle requires a wrench size of SW 27 mm.
Can this puller also be used for internal pulling?: Yes, reversing the pulling hooks on the crossbar allows you to use it as an internal puller.
What is the maximum pulling capacity of this tool?: This mechanical universal puller delivers a maximum force of 8.5 t (85 kN) with a maximum torque of 300 Nm.
Is this puller hydraulically operated?: No, this is a mechanical puller with a threaded screw spindle and does not operate hydraulically.
