KNIPEX 97 99 910 assortment box with stripped wire end sleeves 0.5 - 2.5 mm²

Name: KNIPEX 97 99 910 assortment box with stripped wire end sleeves 0.5 - 2.5 mm²
Brand: KNIPEX
SKU: 03065518
Price: 21.6 EUR
Availability: InStock

Supplier number: KNIPEX 97 99 910 | EAN 4003773082491

Recommended Retail Price €29.52

21.60 tax incl.

€17.85 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

set

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Organized wire termination using the Knipex 97 99 910

Practical benefits

Practical transparent dispenser: You select individual ferrules accurately using the rotating lid aperture while monitoring remaining quantities through the clear body.
Five common wire sizes: You tackle varied wiring projects with 1900 non-insulated ferrules ranging from 0.5 to 2.5 mm² wire cross-sections.
Compact stackable storage: You save space in your service kit or workshop with this stackable 90 mm round storage box.

In a nutshell

The right choise for

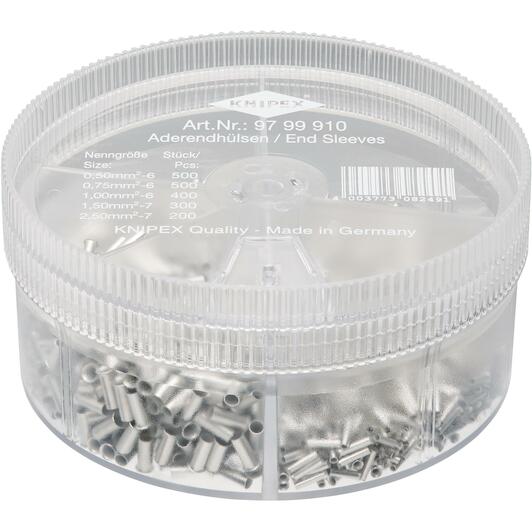

With the Knipex 97 99 910 assortment box, you keep essential wire ferrules perfectly organized and ready for immediate use. This compact, transparent dispenser box contains 1900 non-insulated wire ferrules across five common sizes from 0.5 to 2.5 mm². The rotating lid with an integrated opening allows you to dispense the exact size needed when terminating flexible copper conductors in control panels and distribution boards. Measuring 90 mm in diameter and 44 mm in height, the stackable container prevents loose parts from scattering and provides a clear view of your remaining stock so you can work smoothly and efficiently.

Product information FAQ

€21.60

In stock - tax incl.

Key features according to our expert

Quantity per set: 1900
Min. wire cross-section: 0,5 mm²
Max. wire section: 2,5 mm²

Scope of delivery

500 x Knipex Non-insulated end sleeves 6 mm (500 x 0.5 mm² / AWG 20)
500 x Knipex Non-isolated end sleeves 6 mm (500 x 0.75 mm² / AWG 18)
400 x Knipex Non-isolated end sleeves 6 mm (400 x 1 mm² / AWG 17)
300 x Knipex 7 mm non-isolated ferrules (300 x 1.5 mm² / AWG 15)
200 x Knipex 7 mm non-isolated ferrules (200 x 2.5 mm² / AWG 13)

Product description

Practical sprinkle box, can be stacked and resealed
Convenient, transparent dispensing box
Rotatable lid with opening for removing wire-end sleeves
Size: Ø 90 mm, height 44 mm
Equipped with non-insulated end sleeves
Je 500 AEH for 0.5 / 0.75 mm², 400 x 1 mm², 300 x 1.5 mm², 200 x 2.5 mm²

Documents

⤓ Product sheet PDF

All Features

Quantity per set: 1900
Min. wire cross-section: 0,5 mm²
Max. wire section: 2,5 mm²
Standard: DIN 46228
Dimensions: 90 x 44 mm
Weight: 145 g
Rohs compliance: irrelevant
Reach compliance: does not contain SVHC

Brand KNIPEX
03065518
EAN 4003773082491
Supplier number KNIPEX 97 99 910

Frequently asked questions about this product

Answered by specialists

Which wire sizes are included in this assortment box?: The set includes non-insulated wire ferrules for cross-sections of 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², and 2.5 mm².
Are the wire ferrules in this box insulated?: No, this dispenser contains 1900 non-insulated wire ferrules according to DIN 46228.
What is the exact quantity breakdown of the 1900 ferrules?: The box contains 500 pcs of 0.5 mm², 500 pcs of 0.75 mm², 400 pcs of 1.0 mm², 300 pcs of 1.5 mm², and 200 pcs of 2.5 mm².
How do you dispense individual ferrules from the box?: The dispenser box features a rotating lid with an opening to easily select and remove the required size.
What are the dimensions of the dispenser box?: The transparent dispenser has a diameter of 90 mm and a height of 44 mm.
